VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
72 02.9686.0010 0
Head Front Fan Assembly
23.9686.0684 Rev 0
Refer to Figure 3-12

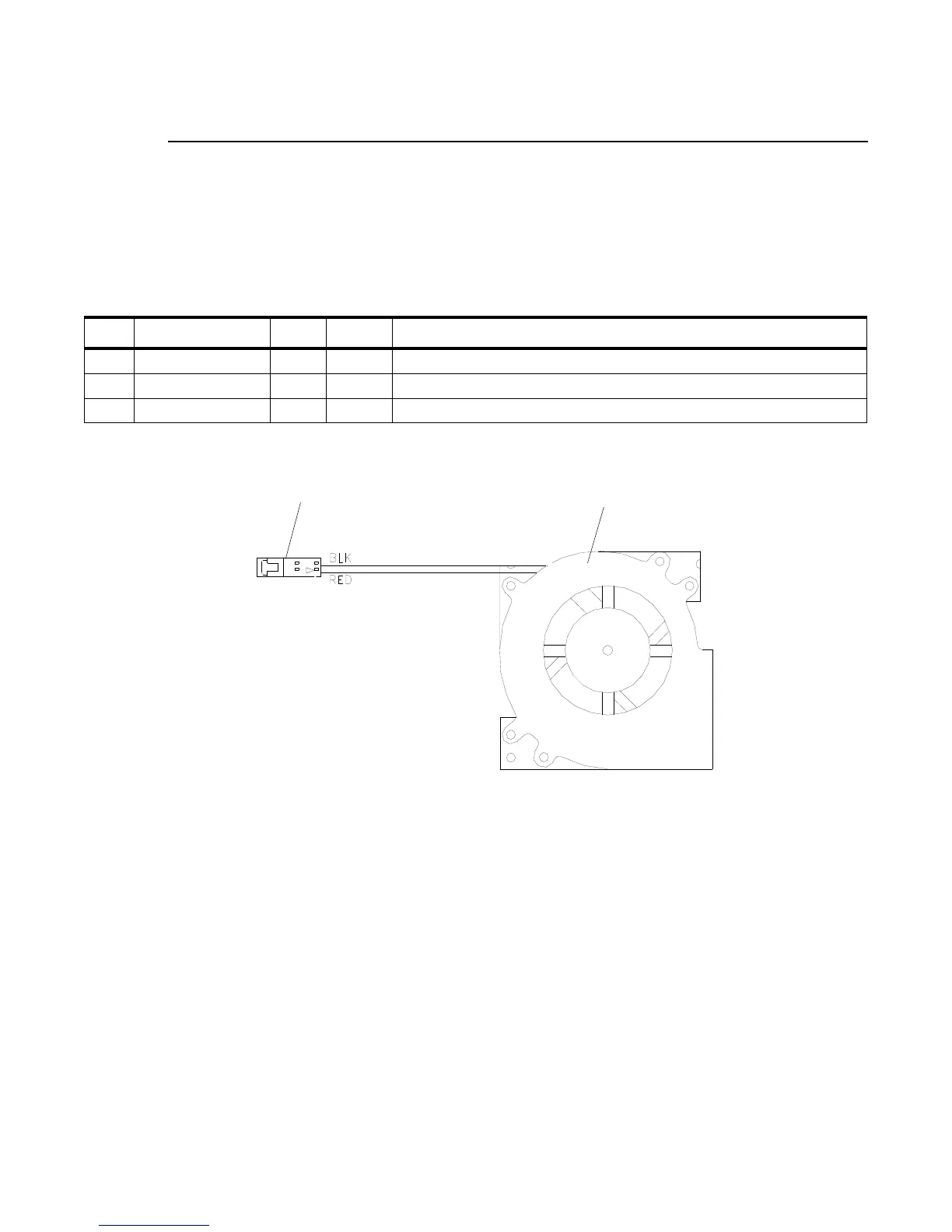

Figure 3-12: Head Front Fan Assembly
No. Item Qty. UM. Description
1 12.9686.0664 1 EA FAN, COOLING, 24V MODIFIED
2 52.6523.0002 1 EA CONN, HOUSING 2POS PLUG SHROUDED WIRE TO WIRE
3 52.8347.0001 2 EA CONTACT, 24-30AWG MALE CRIMP
1
2
3 (x2)
