VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
18 02.9686.0010 0

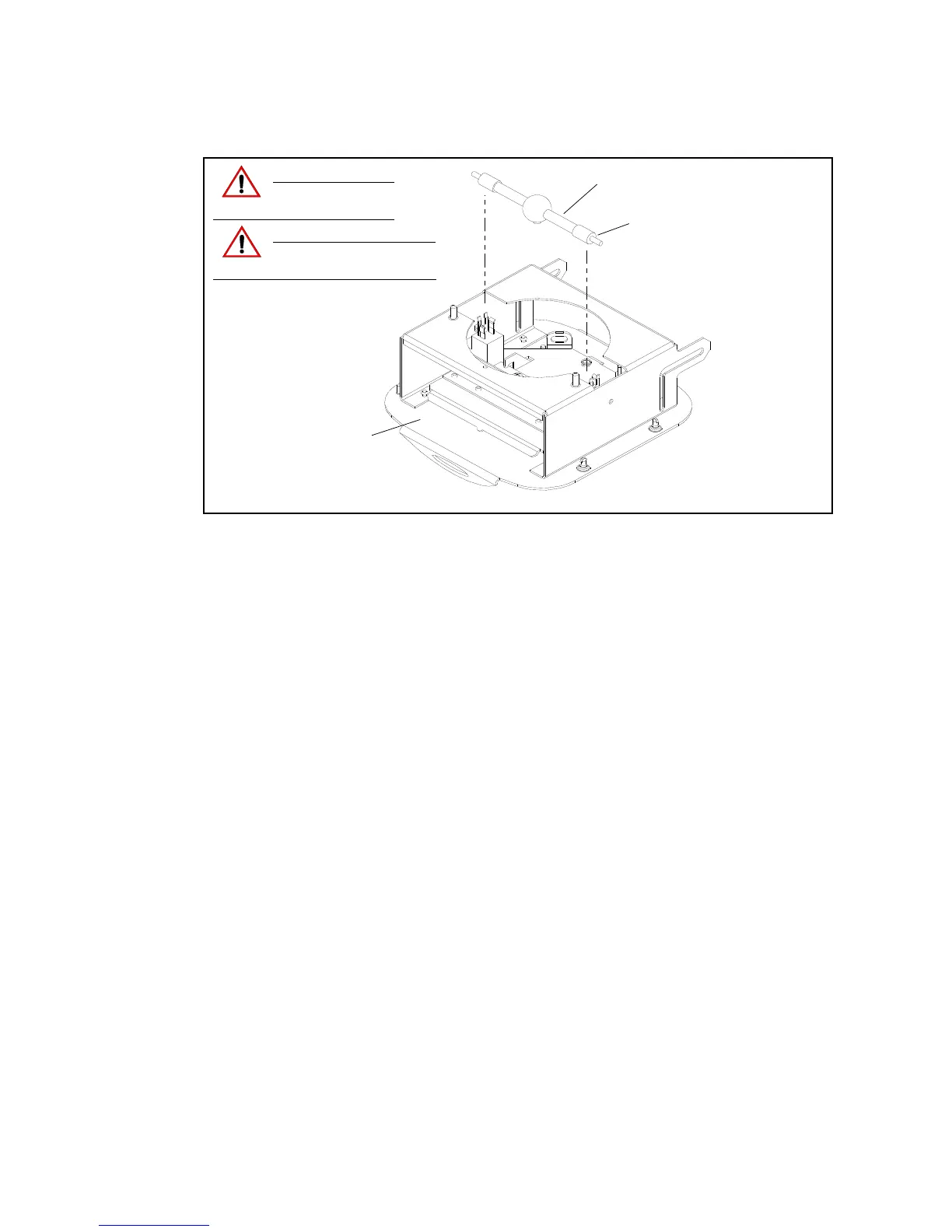

Figure 2-1: Lamp Replacement
Lamp (dimple side towards socket)
Lamp Box
* Luminaire Head Not Shown For Clarity
Lamp Connector
CAUTION:
Do not touch lamp or
reflector with bare fingers.
CAUTION:
Allow lamp to cool
before servicing.
