MAINTENANCE PROCEDURES : REFLECTOR REPLACEMENT
02.9686.0010 0 33
2

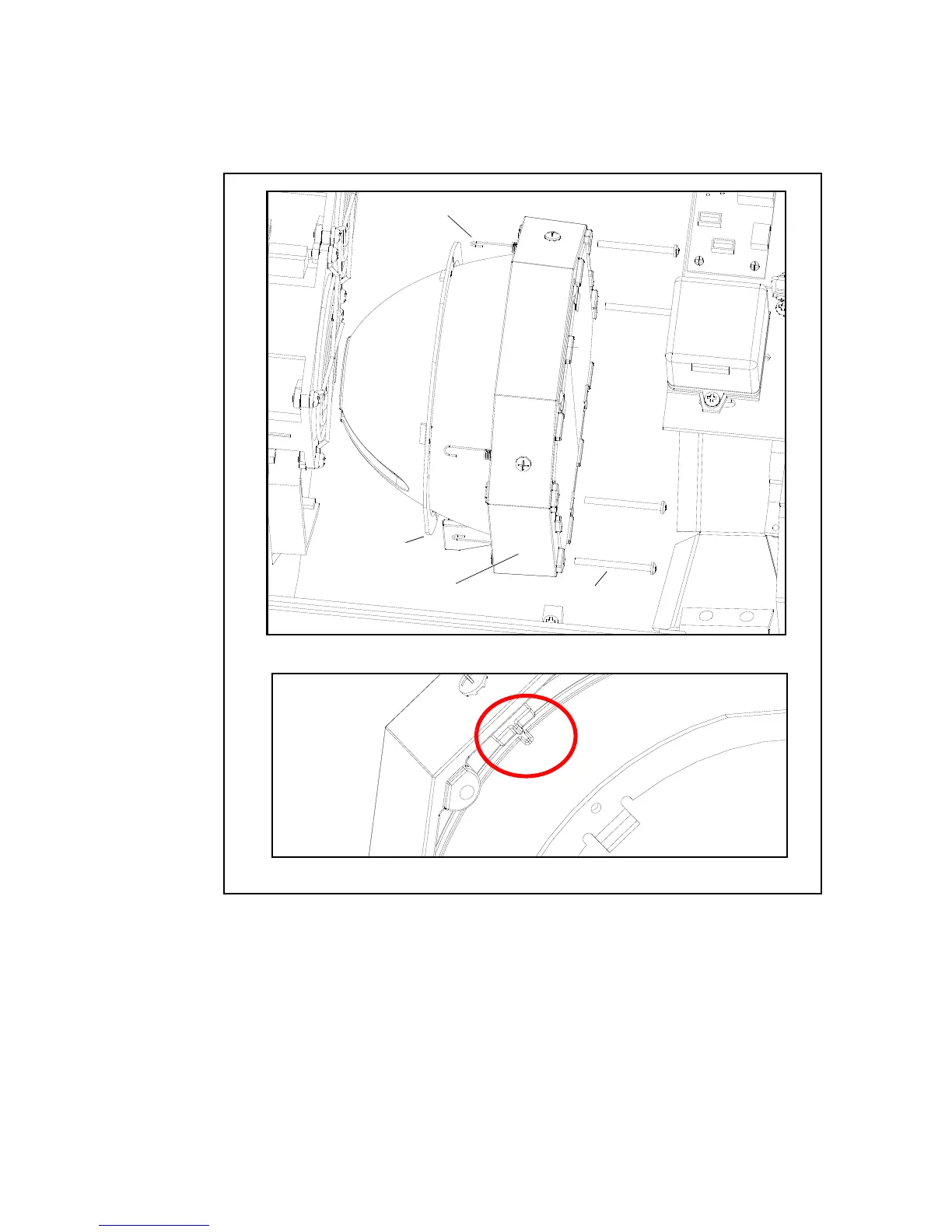

Figure 2-9: Reflector Replacement
4-40 x 1 3/8"
screws (4)
UV/Reflector Assembly
Disconnect Springs
Reflector Clamp
Spring not shown
for clarity
Assembly Removal
Reflector Alignment
