MAINTENANCE PROCEDURES : PAN MOTOR ASSEMBLY REPLACEMENT
02.9686.0010 0 37
2
Note: Make sure wiring is not pinched during installation. When tightening four 10-32x3/4" SCB Cap
screws that mount Pan Motor Assembly, you must tighten in a CLOCKWISE pattern starting with
screw in lower left-hand side from spring.

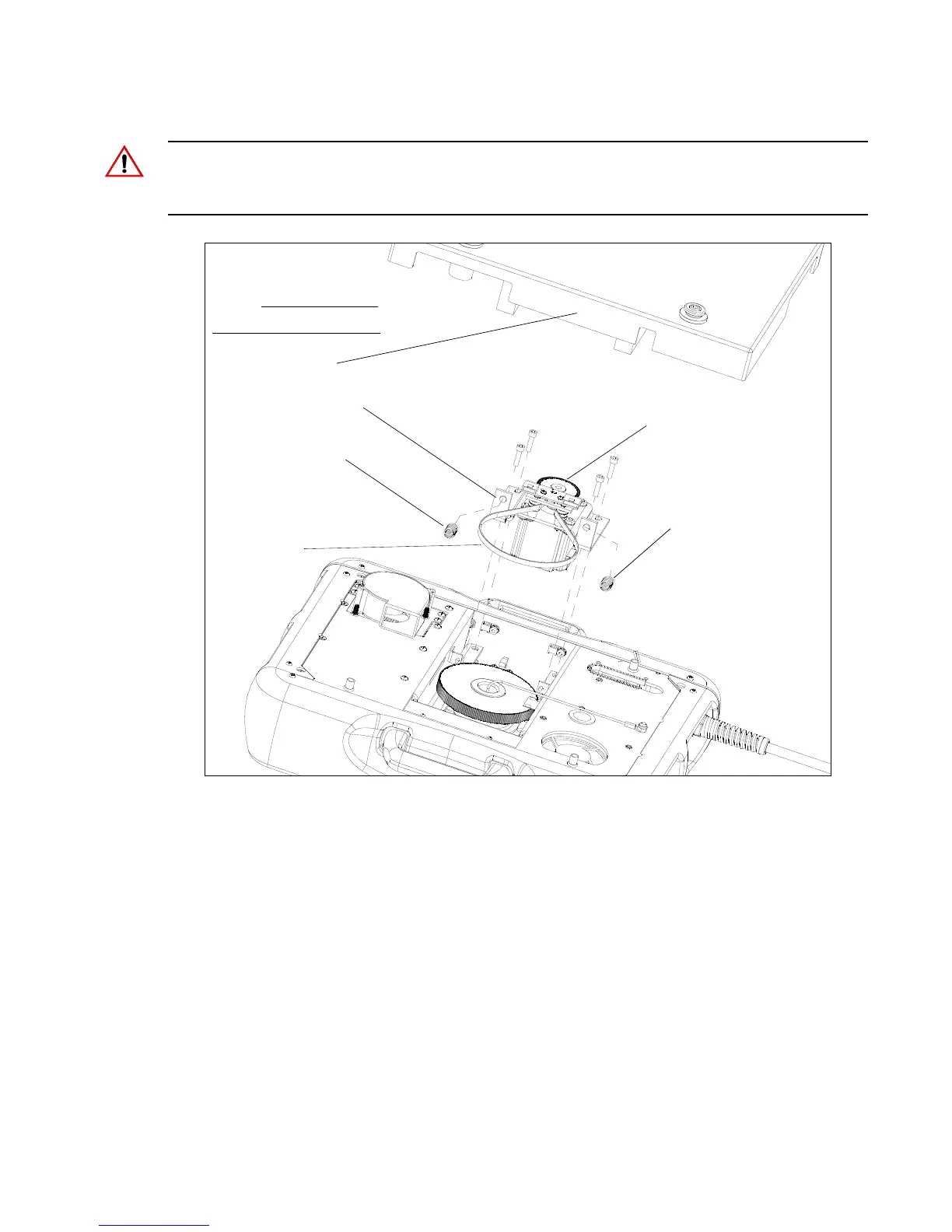

Figure 2-12: Pan Motor Assembly Replacement
Ventilation Cover
Head not shown for clarity.
NOTE:
Encoder Wheel
Pan Motor
Assembly
Belt
Tensioning spring
Tensioning spring
To Next Page
