MAINTENANCE PROCEDURES : TILT MOTOR ASSEMBLY REPLACEMENT
02.9686.0010 0 45
2
WARNING: Make sure wiring is not pinched during installation. When tightening four 10-32 x 1/2"
PPZ screws that fasten the tilt motor assembly, you must tighten then in a CLOCKWISE pattern
starting with the screw in lower left-hand side.

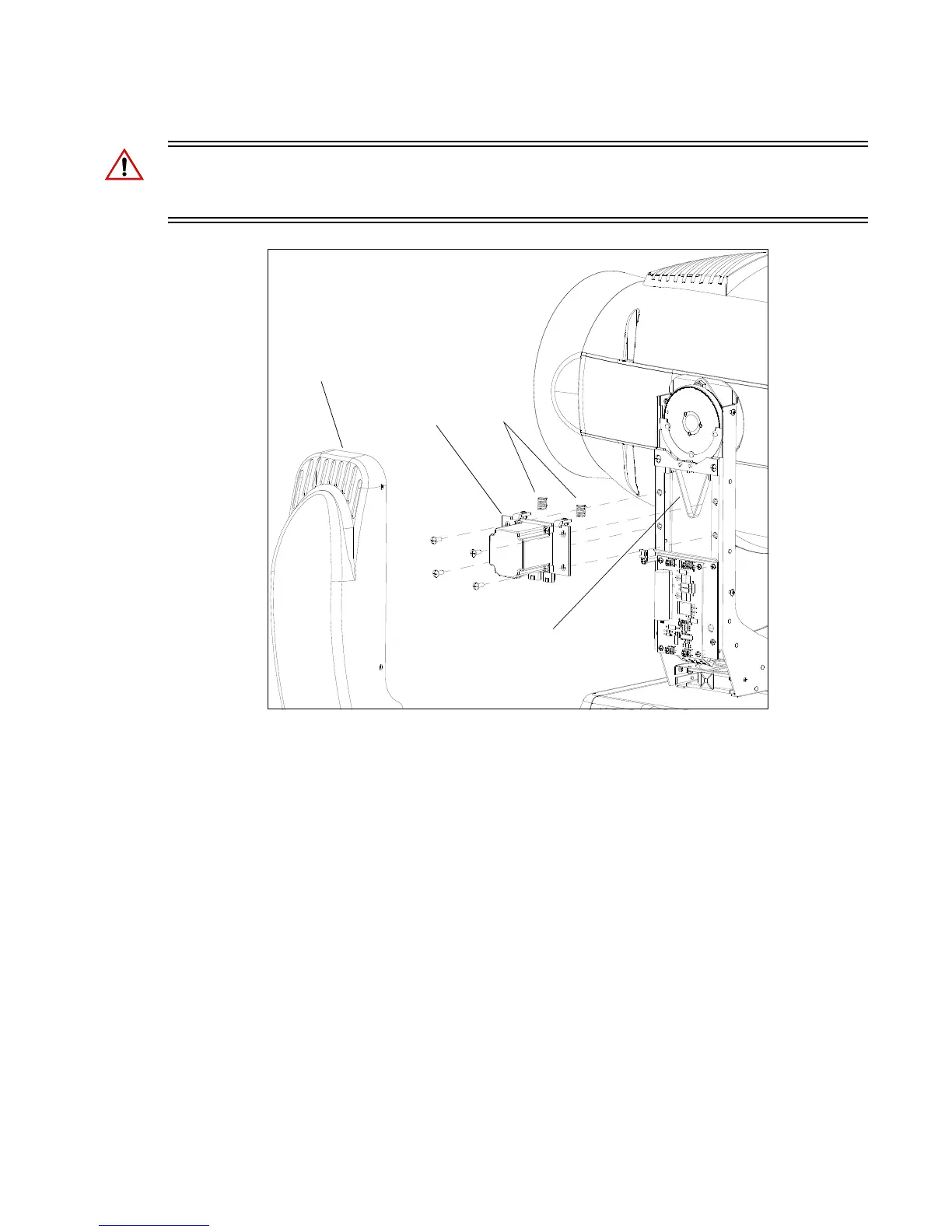

Figure 2-16: Tilt Motor Assembly Replacement
Tilt Motor
Assembly
Springs
Yoke
Cover
Tilt Belt
To Next Page
