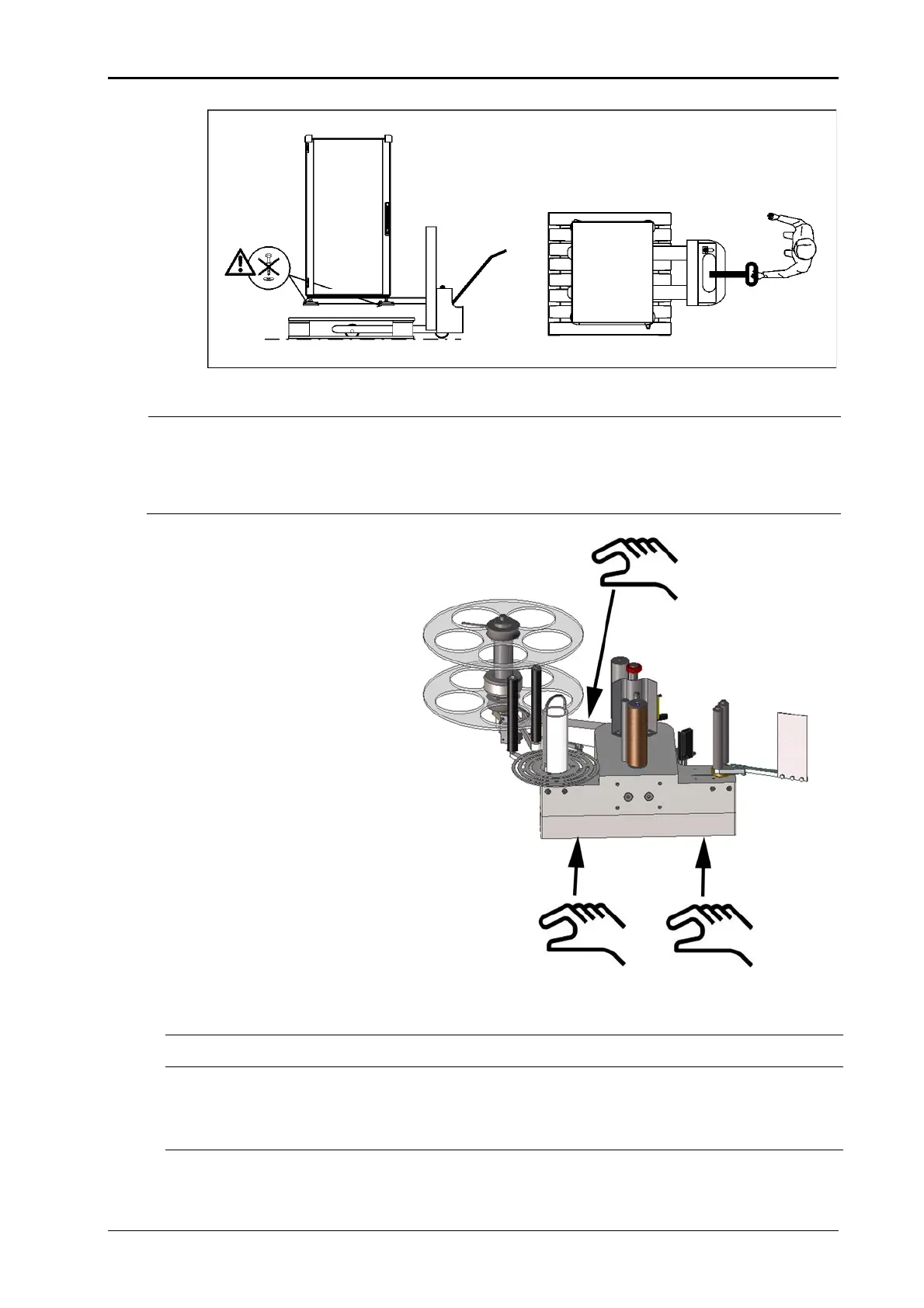

Fig. 5-2: Alpha Compact with Protective Cabinet from Pallet.
Fig. 5-3: Lifting Alpha Compact
5
Open the carton and remove the packing material and enclosed material.
6
Lift the system with at least two persons at the base plate and the rewind-
er (cp. Fig. 5-3) out of the packaging and move it with the backside to a
stable support. Systems with optional stand mounting can be touched
there additionally.
7
Remove all transportation safety devices (marked red tie wraps) to install
the system.
4
Lift the labeler with a double hand fork lift truck resp. fork lift truck in shown
way from the pallet (s.Fig. 5-2: ).
OR
Move the labeler from pallet piece by piece diagonally by three persons.Go
on with Step 7.
