Work Platform
Tools:
2 Platform, each platform includes three grids 94142
2 Support 94143
1. General
You use the platform (94142, Fig. 1) and support (94143) when you do work in the
crank area and between the columns. The platforms help to prevent accidents in
these areas.
You install the platform (94142) on the longitudinal beam (2) and the crank (1).
You install the support (94142) at the applicable height on the steps (3) between the
columns. This support is adjustable between 725 mm and 902 mm
.
To prevent accidents, the platform (94142) and supports (94143) must be used for
inspections or work in the crankcase.
WARNING
Injury and Damage Hazard: Do not turn the crankshaft when the
platforms and/or supports are installed. This will cause injury to
personnel and damage to equipment.
94142
94143
FUEL SIDE
2
EXHAUST SIDE
1
3
WCH03210

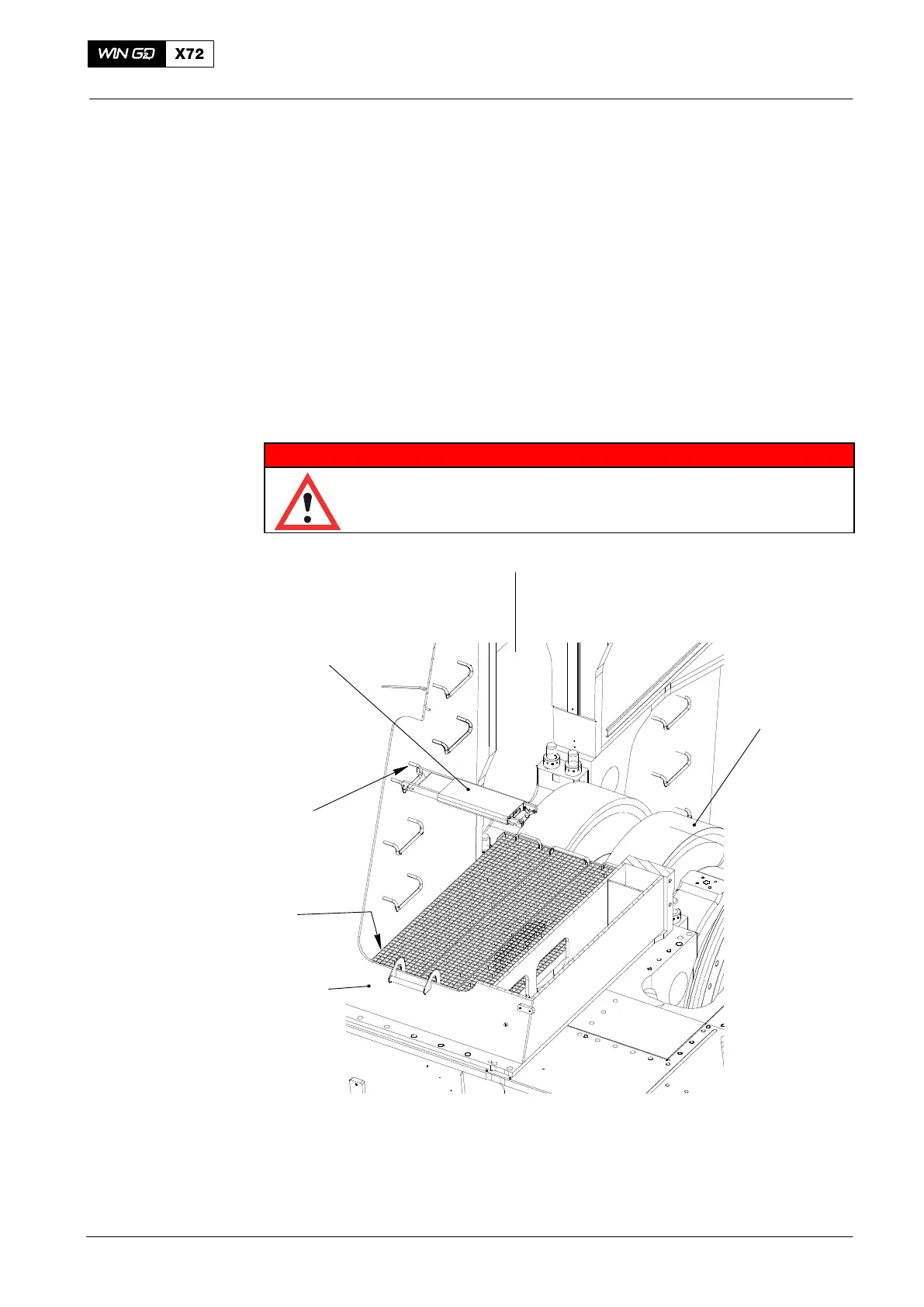

Fig. 1
Maximum Load
250 kg/m
2
Maximum Load
300 kg/m
2
