Xerox WorkCentre 5022 Service Manual

06/2014
4-94
WC 5022/5024
Version 1.0
Repairs and Asdjustments

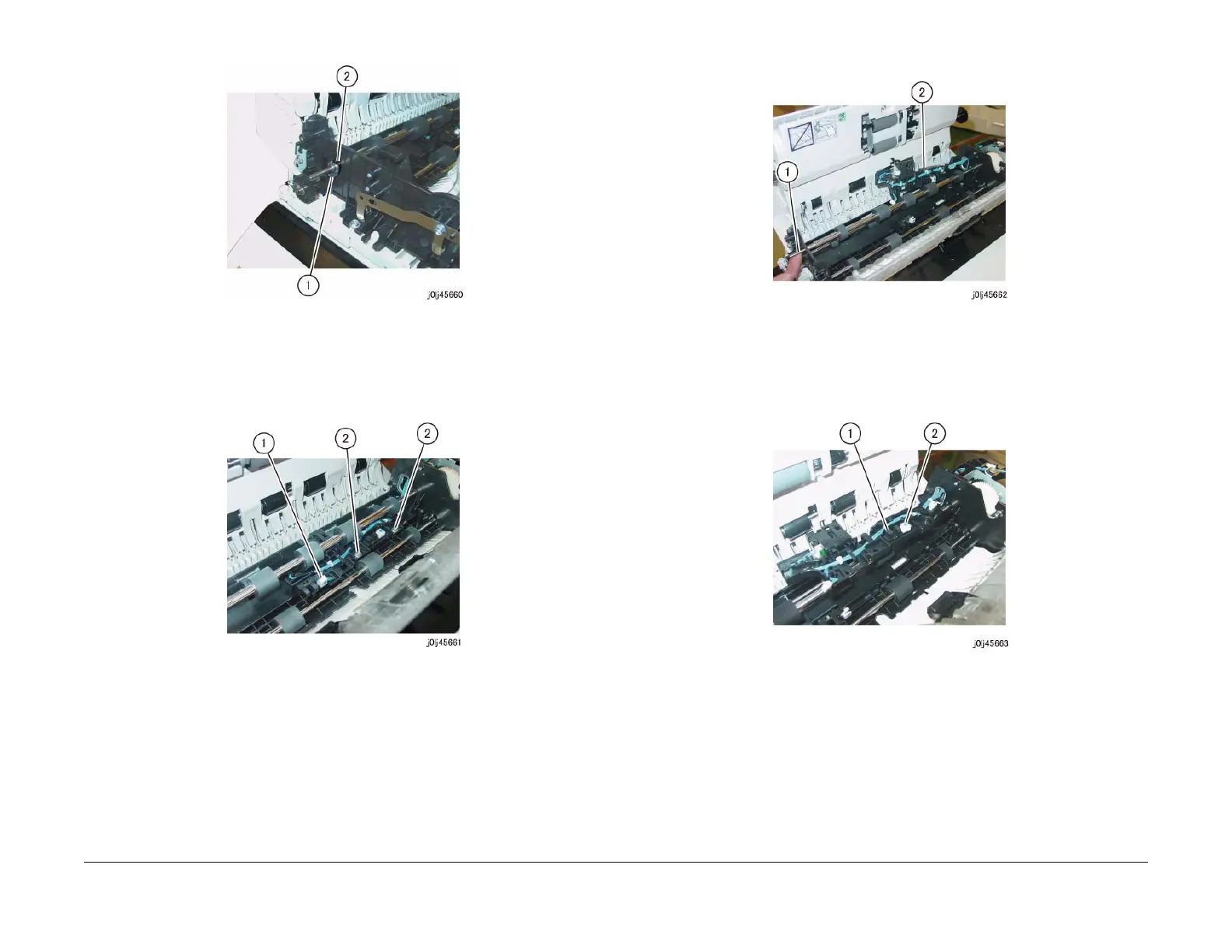

Figure 4 j0lj45660
7. Remove the screws that secure the Sensor Bracket. (Figure 5)
a. Disconnect the connector.
b. Remove the Tapping Screw (x2).
Figure 5 j0lj45661
8. Remove the Sensor Bracket from underneath the DADF Takeaway Roll. (Figure 6)
a. Lift up the Front side of the DADF Takeaway Roll.
b. Remove the Sensor Bracket.
Figure 6 j0lj45662
9. Remove the DADF Pre Regi Sensor. (Figure 7)
a. Release the hook to remove the DADF Pre Regi Sensor.
b. Disconnect the connector.
Figure 7 j0lj45663
10. Remove the DADF Regi Sensor at the back of the Sensor Bracket. (Figure 8)
a. Release the hook to remove the DADF Regi Sensor.
b. Disconnect the connector.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
