Xerox WorkCentre 5022 Service Manual

06/2014
4-95
WC 5022/5024
Repairs and Asdjustments
Version 1.0

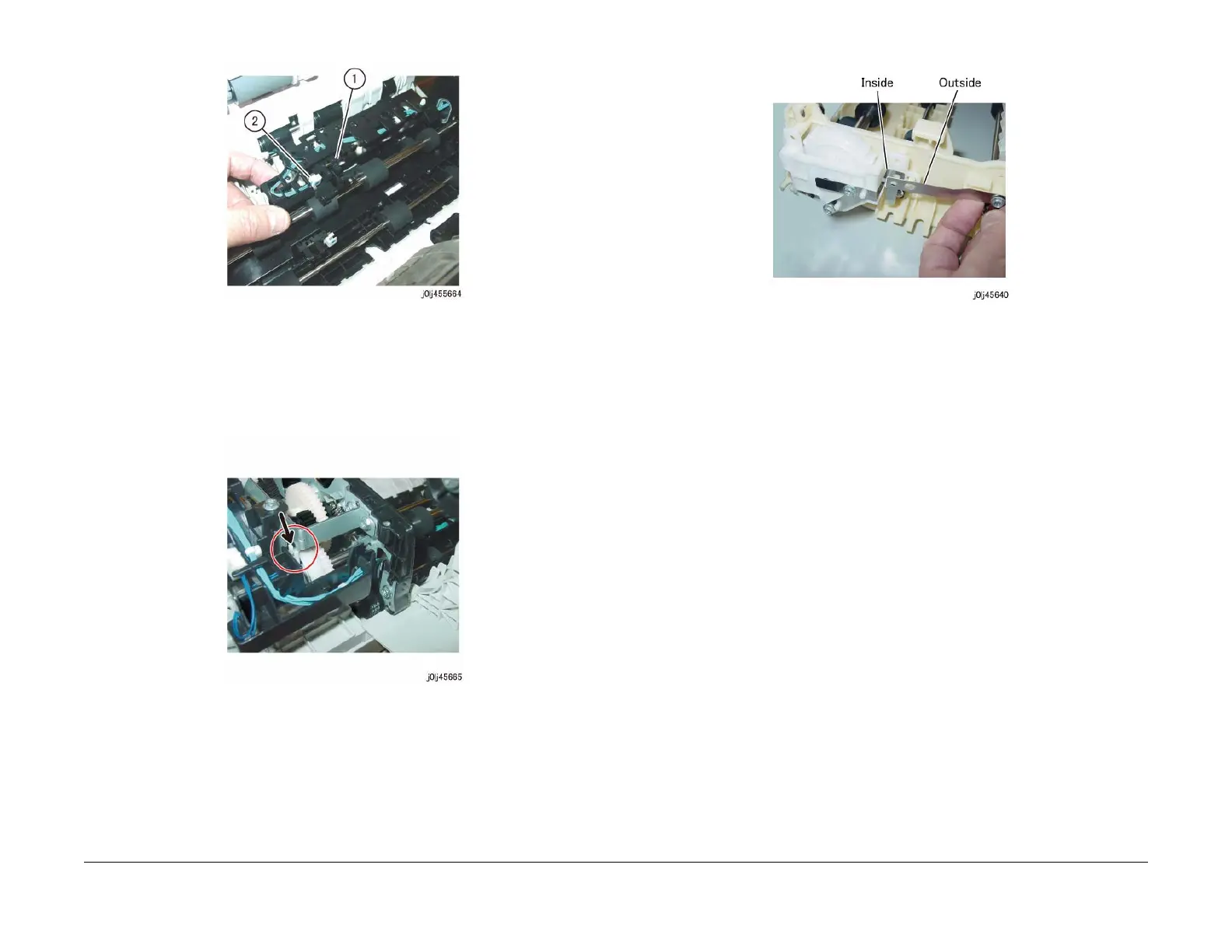

Figure 8 j0lj45664
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Bearing of the DADF Takeaway Roll, align the Cutout of the DADF
Takeaway Clutch at the Rear side to the Tab of the Bracket of the DADF Feed Motor. (Fig-
ure 9)
Figure 9 j0lj45665
3. When installing the Bracket and Ground Plate, install the Ground Plate as shown in the
figure. (Figure 10)
Figure 10 j0lj45640

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
