Xerox WorkCentre 5022 Service Manual

06/2014
4-104
WC 5022/5024
Version 1.0
Repairs and Asdjustments

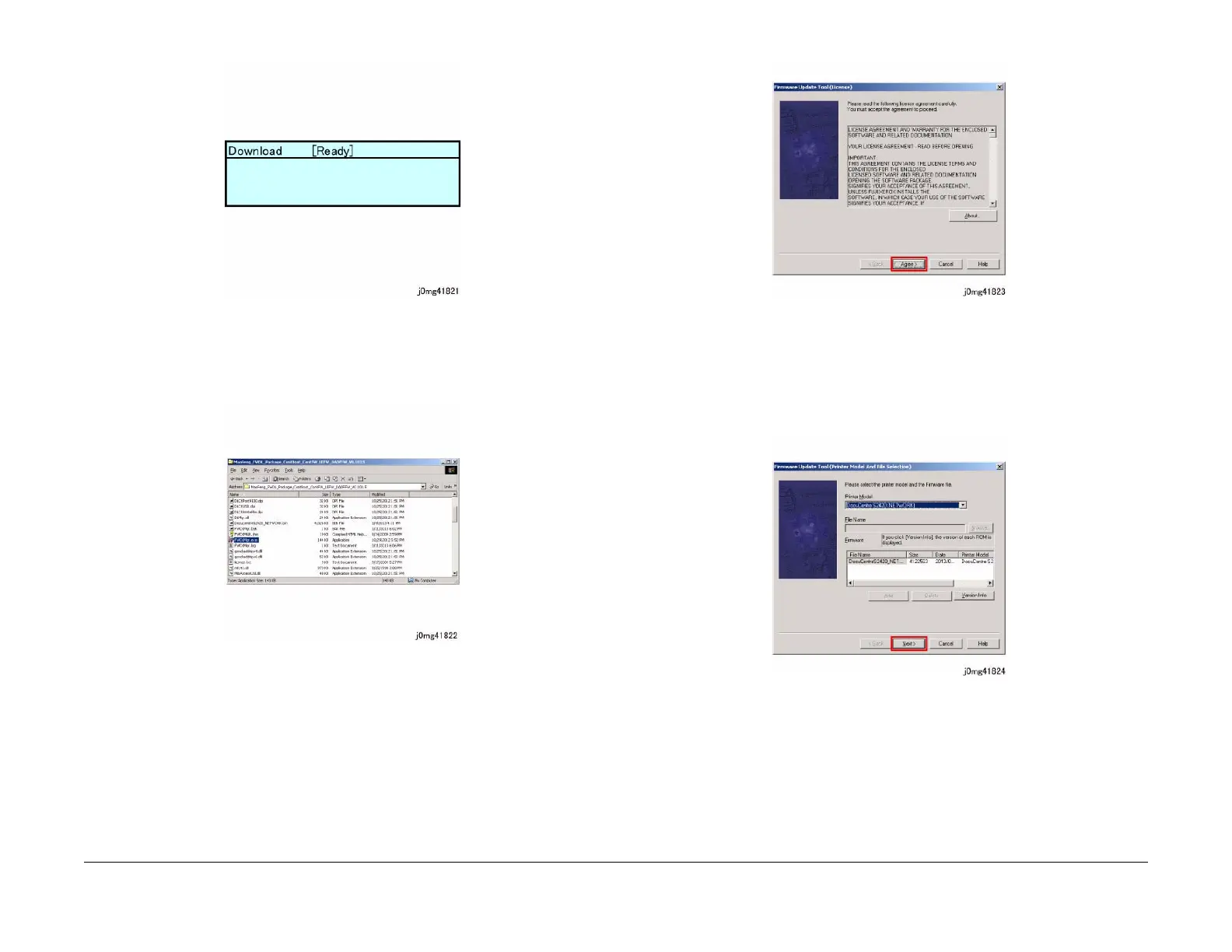

Figure 2 j0mg41821
4. Perform the Firmware upgrade from the PC that is connected via USB Cable to the
machine.
a. Double-click to run the Firmware Version Upgrade Tool (FWDLMgr.exe).
Figure 3 j0mg41822
b. Click [Agree] on the Firmware Version Upgrade Tool (License Agreement).
Figure 4 j0mg41823
c. Select the Machine Model from the pull down menu of the Machine Model column on
the selection screen for machine models and files.
d. Select the downloaded file from the Firmware column on the selection screen for
machine models and files, and click [Next].
Select detailed version to display each ROM version in the downloaded file.
Figure 5 j0mg41824
e. Check that [USB Port] is selected, and then click [Next].

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
