Xerox WorkCentre 5022 Service Manual

06/2014
4-105
WC 5022/5024
Repairs and Asdjustments
Version 1.0

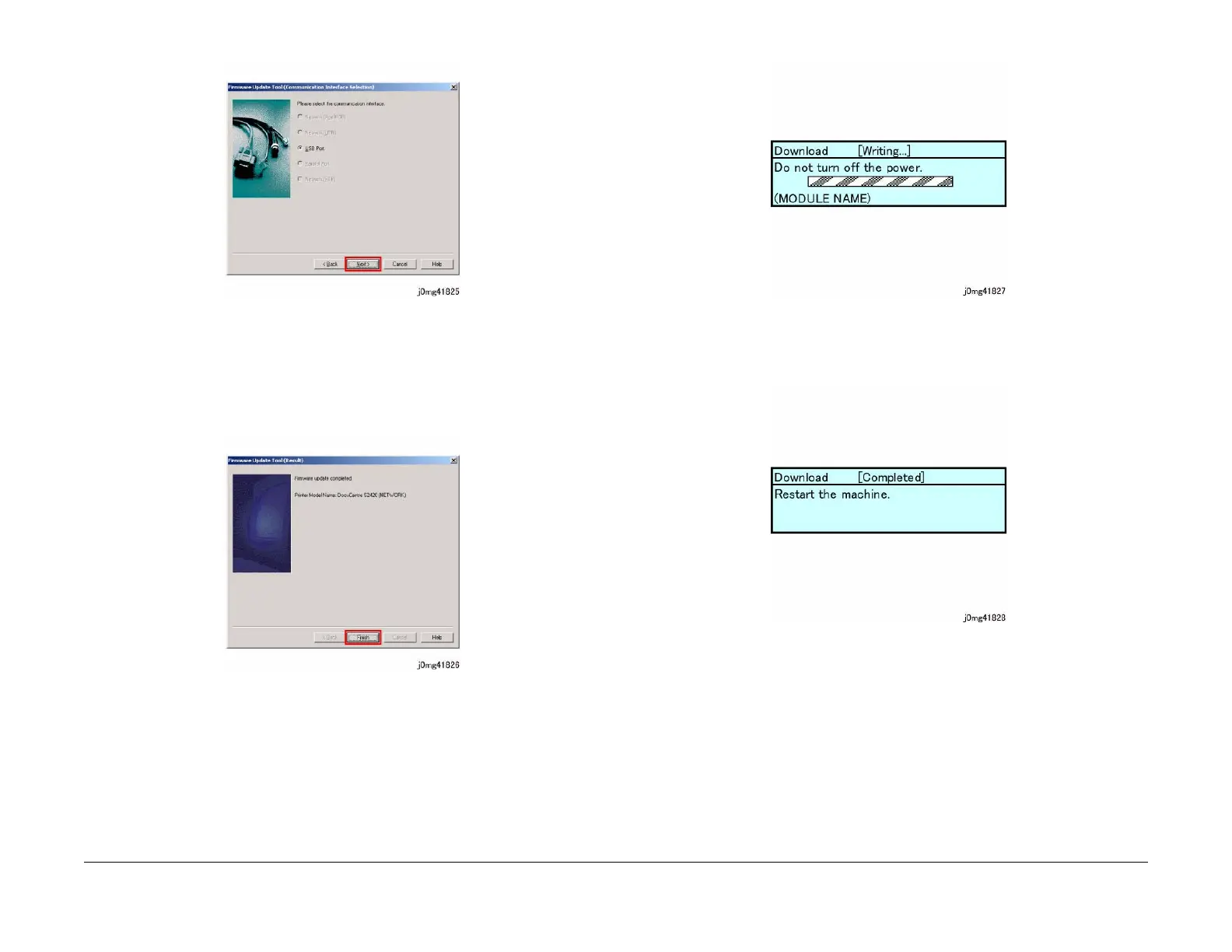

Figure 6 j0mg41825
f. The Firmware upgrade status appears on the [Updating] screen. After it has com-
pleted, the following result screen will be displayed and the transfer is ended. Click
[Finish].
NOTE: However, you cannot turn OFF the machine immediately after this.
Figure 7 j0mg41826
5. After the download data is transferred, the Flash ROM in the machine will be overwritten.
• At this time, the UI display will be as follows.
Figure 8 j0mg41827
6. When the download has completed successfully, the following will be displayed, and then
the machine will Auto-Reboot.
Figure 9 j0mg41828

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
