Xerox WorkCentre 5022 Service Manual

06/2014
7-5
WC 5022/5024
7.1.2 Plug/Jack Location
Wiring Data
Version 1.0
7.1.2 Plug/Jack Location

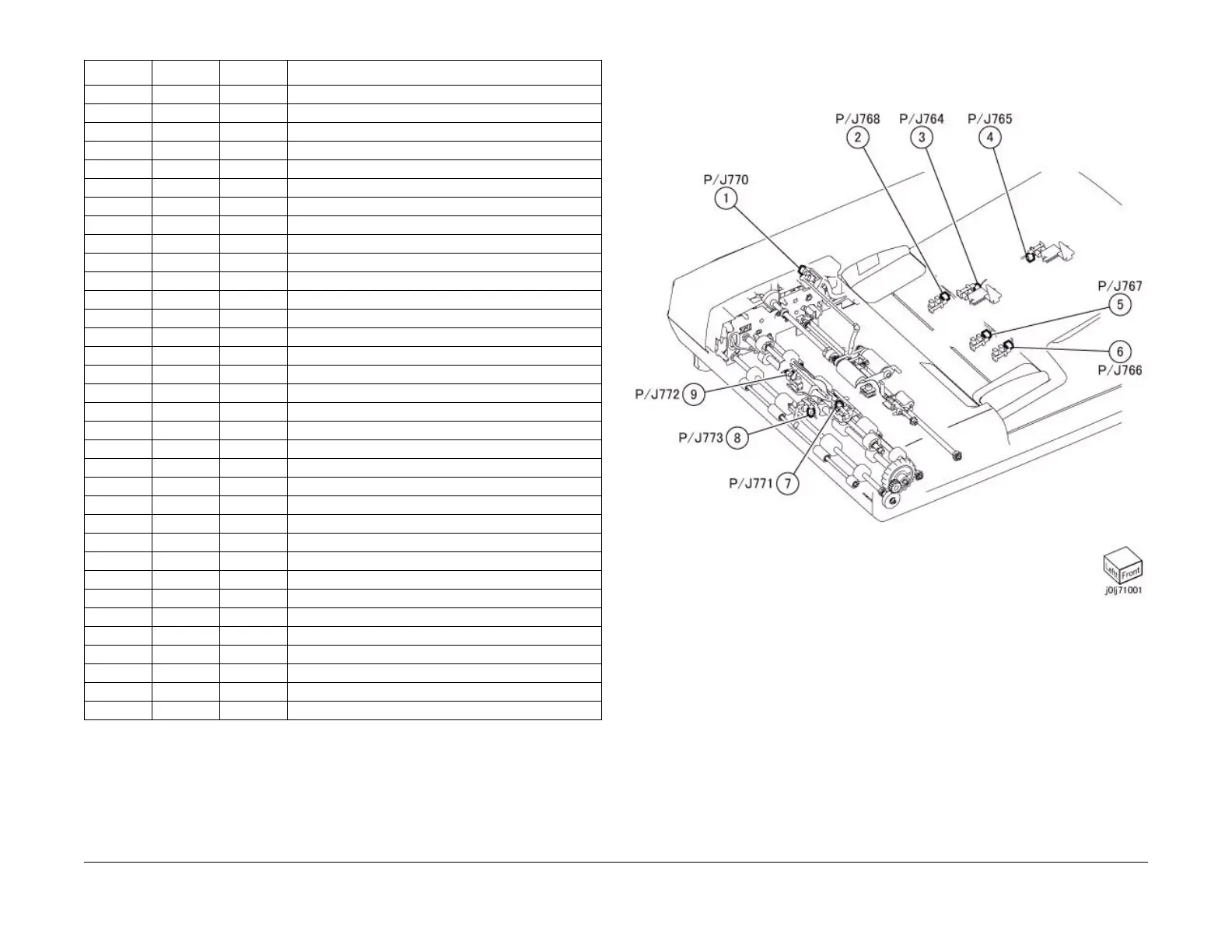

Figure 1 DADF 1 of 2 (j0lj71001)
P/J766 1 6 DADF Tray Set Guide Sensor 3
P/J767 1 5 DADF Tray Set Guide Sensor 2 (BLU)
P/J768 1 2 DADF Tray Set Guide Sensor 1
P/J770 1 1 DADF Document Set Sensor
P/J771 1 7 DADF Invert Sensor
P/J772 1 9 DADF Pre Regi. Sensor
P/J773 1 8 DADF Regi. Sensor
P/J774 2 14 DADF Open Sensor
P/J777 2 13 DADF Feed Motor
P/J780 2 17 Feed Clutch
P/J781 2 12 T/A Clutch
J802 14 11 FAX PWB (LINE)
J804 14 8 FAX PWB (TEL)
P/J805 14 7 FAX PWB (FAX Speaker)
P/J812C 9 6 STM Left Cover Switch
P/J813 12 11 2TM Left Cover Switch
P/J820 12 4 Tray 3 Paper Size Switch (2TM)
P/J820C 9 4 Tray 2 Paper Size Switch (1TM)
P/J821 12 7 Feed Out Sensor 3 (2TM)
P/J821C 9 7 Feed Out Sensor 2 (1TM)
P/J822 13 5 2TM Takeaway Roll Clutch
P/J822C 10 4 STM Take Away Roll Clutch
P/J824 12 5 Tray 4 Paper Size Switch (2TM)
P/J825 12 6 Feed Out Sensor 4 (2TM)
P/J826 13 6 2TM Takeaway Motor
P/J826C 10 2 STM Take Away Motor
P/J841 13 4 Connector (2TM)
P/J841C 10 3 Connector (1TM)
P/J842 12 10 Connector (2TM)
P/J2011 5 2 SOS PWB
P/J7001 3 6 CCD PWB
P/J7002 3 5 LED Lamp PWB
F1 2 15 DADF Feeder Cover Interlock Switch
F2 2 16 DADF Feeder Cover Interlock Switch
Table 1 Plug/Jack Location List
P/J Fig Item Remarkes (where to Connect)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
