7 Series FPGAs SelectIO Resources User Guide www.xilinx.com 105
UG471 (v1.10) May 8, 2018
Chapter 2
SelectIO Logic Resources
Introduction
This chapter describes the logic directly behind the I/O drivers and receivers covered in
Chapter 1, SelectIO Resources.
7 series FPGAs contain the basic I/O logic resources from previous Xilinx FPGAs. These
resources include the following:
• Combinatorial input/output
• 3-state output control
• Registered input/output
• Registered 3-state output control
• Double-Data-Rate (DDR) input/output
• DDR output 3-state control
• IDELAY provides users control of an adjustable, fine-resolution delay taps
• ODELAY provides users control of an adjustable, fine-resolution delay taps
• SAME_EDGE output DDR mode
• SAME_EDGE and SAME_EDGE_PIPELINED input DDR mode

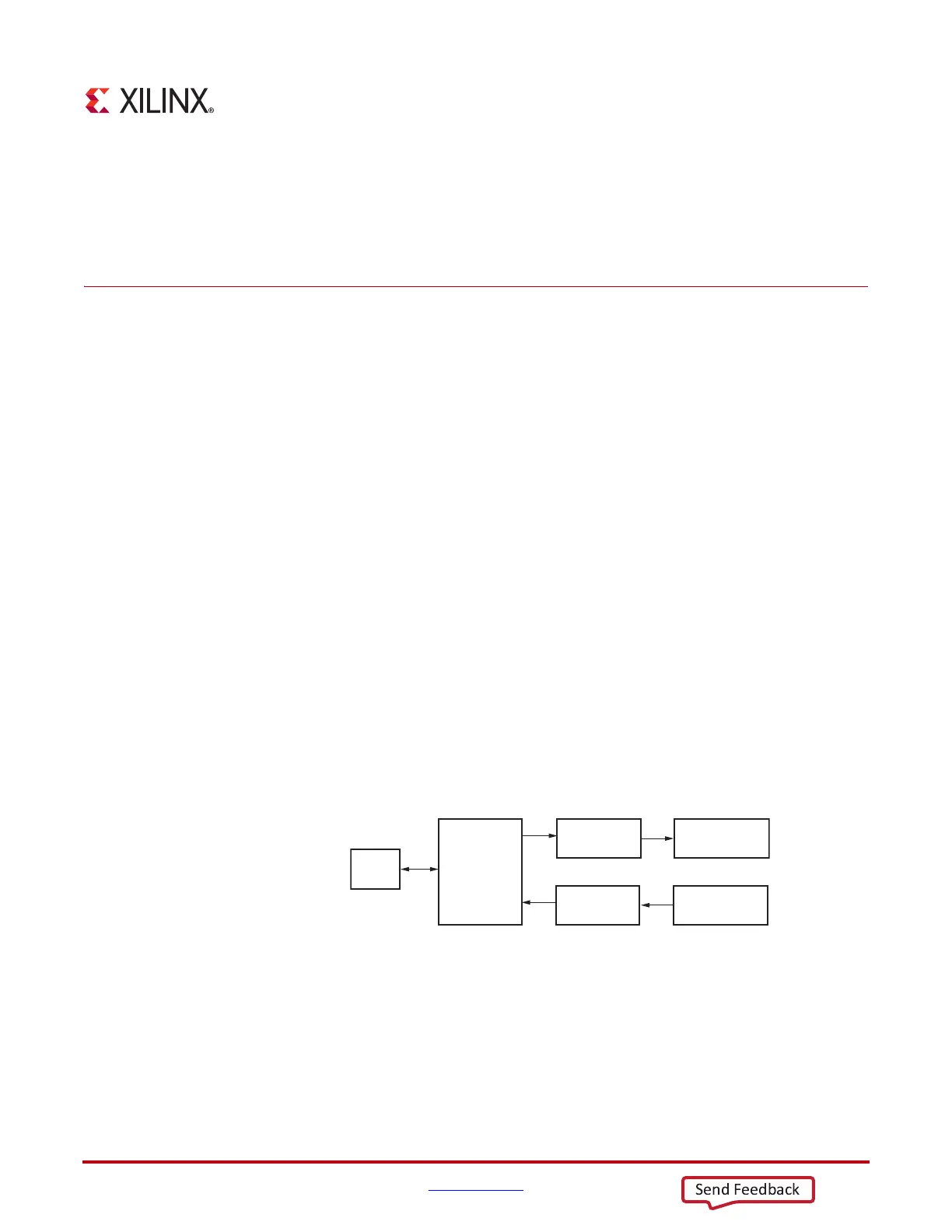

Figure 2-1 shows a I/O tile for the 1.8V HP banks. Figure 2-2 shows an I/O tile for a
3.3V HR bank. The SelectIO™ input, output, and 3-state drivers are in the input/output
buffer (IOB). The HP banks have separate IDELAY and ODELAY blocks. The HR bank has
the same logic elements as the HP banks except for the ODELAY block.
X-Ref Target - Figure 2-1
Figure 2-1: 7 Series FPGA HP Bank I/O Tile
UG471_c1_01_012211
IDELAYE2
IOB
ILOGICE2/
ISERDESE2
ODELAYE2
OLOGICE2/
OSERDESE2
PA D
