Differential HSTL Class II
Figure 1-51 shows a sample circuit illustrating a termination technique for differential
HSTL class-II (1.5V or 1.8V) with unidirectional termination. In a specific circuit, all drivers
and receivers must be at the same voltage level (either 1.5V or 1.8V); they are not
interchangeable.
X-Ref Target - Figure 1-51

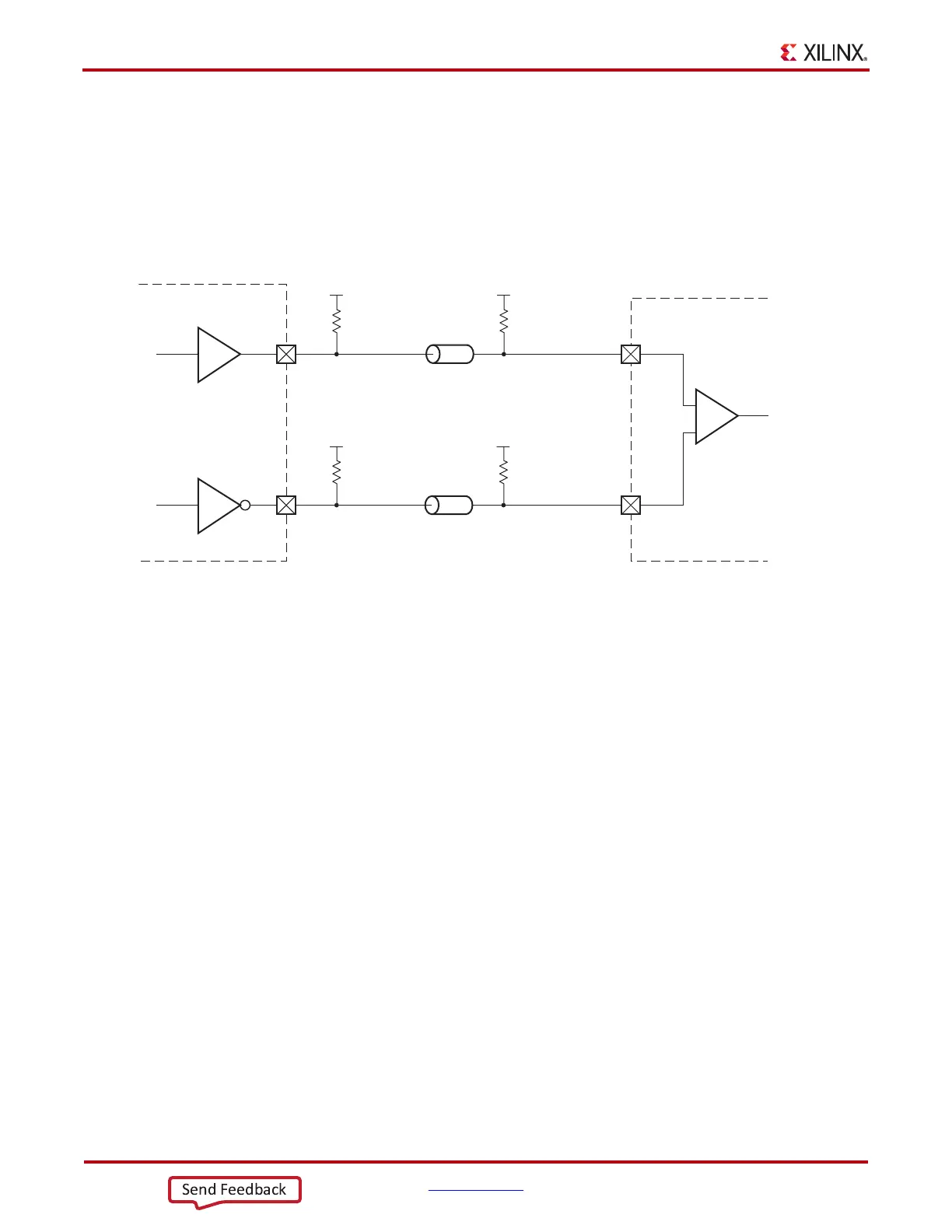

Figure 1-51: Differential HSTL Class II (1.5V or 1.8V) Unidirectional Termination
ug471_c1_41_011811
+
–
External Termination
Z
0
IOB
IOB
DIFF_HSTL_II
DIFF_HSTL_II_18
DIFF_HSTL_II
DIFF_HSTL_II_18
DIFF_HSTL_II
DIFF_HSTL_II_18
Z
0
50Ω
V
TT
=
0.75V for DIFF_HSTL_II
0.9V for DIFF_HSTL_II_18
V
TT
=
0.75V for DIFF_HSTL_II
0.9V for DIFF_HSTL_II_18
V
TT
=
0.75V for DIFF_HSTL_II
0.9V for DIFF_HSTL_II_18
V
TT
=
0.75V for DIFF_HSTL_II
0.9V for DIFF_HSTL_II_18
50Ω
50Ω 50Ω
