162 www.xilinx.com 7 Series FPGAs SelectIO Resources User Guide
UG471 (v1.10) May 8, 2018
Chapter 3: Advanced SelectIO Logic Resources
3-State Parallel-to-Serial Conversion
In addition to parallel-to-serial conversion of data, an OSERDESE2 module also contains a
parallel-to-serial converter for 3-state control of the IOB. Unlike data conversion, the
3-state converter can only serialize up to four bits of parallel 3-state signals. The 3-state
converter cannot be cascaded.
OSERDESE2 Primitive
The OSERDESE2 primitive is shown in Figure 3-14.
X-Ref Target - Figure 3-14

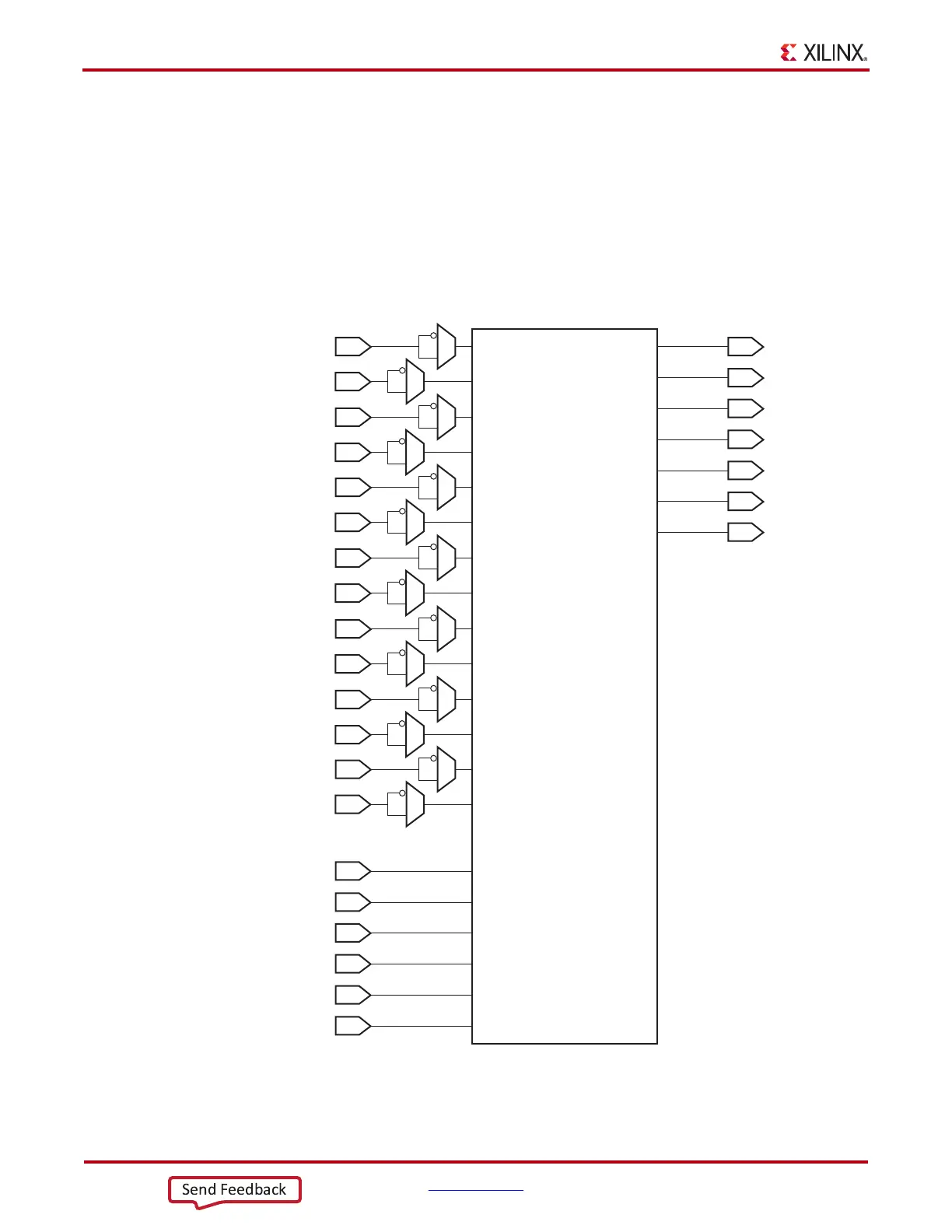

Figure 3-14: OSERDESE2 Primitive
UG471_c3_14_041712
TCE
CLK
OCE
TBYTEIN
RST
SHIFTIN1
SHIFTIN2
OQ
OFB
TQ
TFB
TBYTEOUT
SHIFTOUT1
SHIFTOUT2
OSERDESE2
Primitive
CLKDIV
D1
D2
D3
D4
D5
D6
D7
D8
T1
T3
T4
T2
Send Feedback
