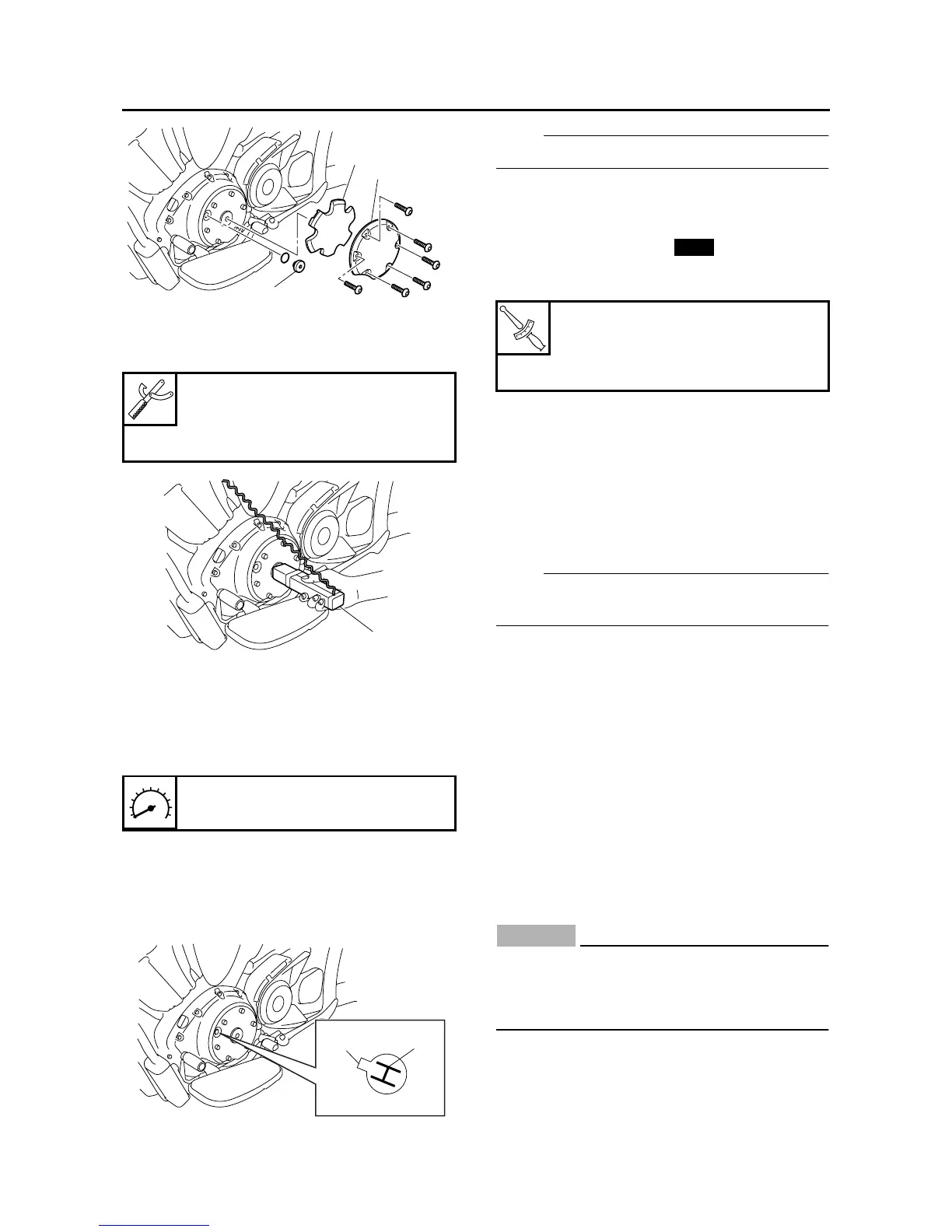

3. Connect:
• Timing light “1”
• Digital tachometer
4. Check:
• Ignition timing
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Start the engine, warm it up for several min-
utes, and then let it run at the specified en-
gine idling speed.
b. Check that slot “a” in the generator cover is
within the firing range “b” on the generator ro-
tor.
Incorrect firing range → Check the ignition
system.
NOTE:
The ignition timing is not adjustable.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
5. Install:
• Timing mark accessing screw
(along with the O-ring )
• Damper
• Damper cover
6. Install:
• Front cylinder covers
Refer to “ENGINE REMOVAL” on page 5-1.
EAS20710
MEASURING THE COMPRESSION
PRESSURE
The following procedure applies to all of the cyl-
inders.
NOTE:
Insufficient compression pressure will result in a
loss of performance.
1. Measure:
• Valve clearance
Out of specification → Adjust.
Refer to “ADJUSTING THE VALVE CLEAR-
ANCE” on page 3-3.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Remove:
• Front cylinder covers
• Rear cylinder covers
Refer to “ENGINE REMOVAL” on page 5-1.
4. Disconnect:
• Spark plug caps
5. Remove:
• Spark plug
CAUTION:
ECA13340
Before removing the spark plugs, use com-
pressed air to blow away any dirt accumulat-
ed in the spark plug wells to prevent it from
falling into the cylinders.
6. Install:
• Compression gauge “1”
Timing light
90890-03141
Inductive clamp timing light
YU-03141
Engine idling speed
950–1050 r/min
1
2
3
1
a
b
T
R
.
.
Timing mark accessing screw
6 Nm (0.6 m·kg, 4.3 ft·lb)
Damper cover bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
New
