CLUTCH
5-45
EAS25060
CLUTCH

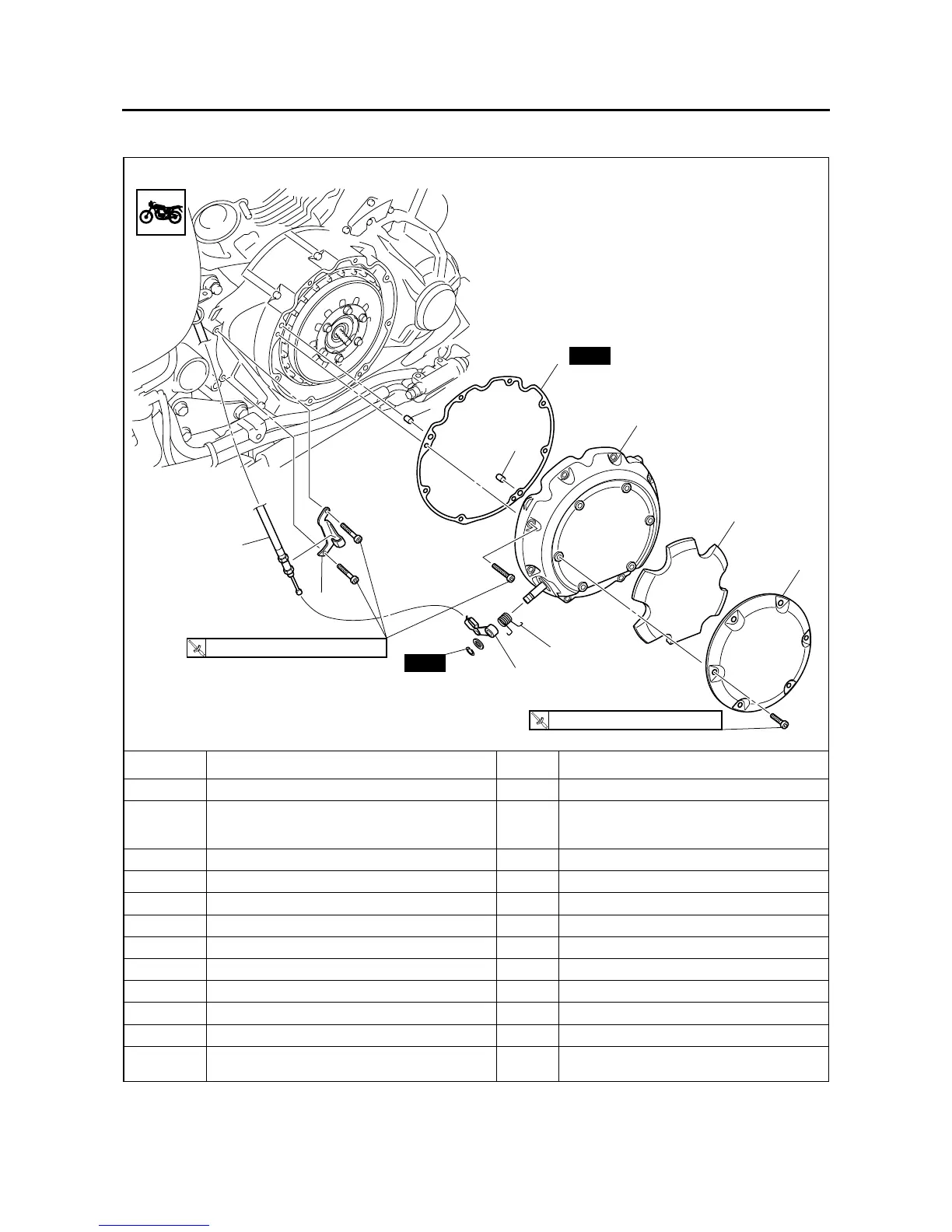

Removing the clutch cover
Order Job/Parts to remove Q’ty Remarks
Muffler/Coolant reservoir cover Refer to “ENGINE REMOVAL” on page 5-1.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-11.
1 Clutch cable holder 1
2 Clutch cable 1 Disconnect.
3 Pull lever 1
4 Pull lever spring 1
5 Damper cover 1
6 Clutch cover damper 1
7 Clutch cover 1
8 Clutch cover gasket 1
9 Dowel pin 2
For installation, reverse the removal proce-
dure.
New
New
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
2
3
4
5
6
7
8
9
9
(6)
(8)
To Next Page
