FRONT BRAKE
4-20
EAS22210
FRONT BRAKE

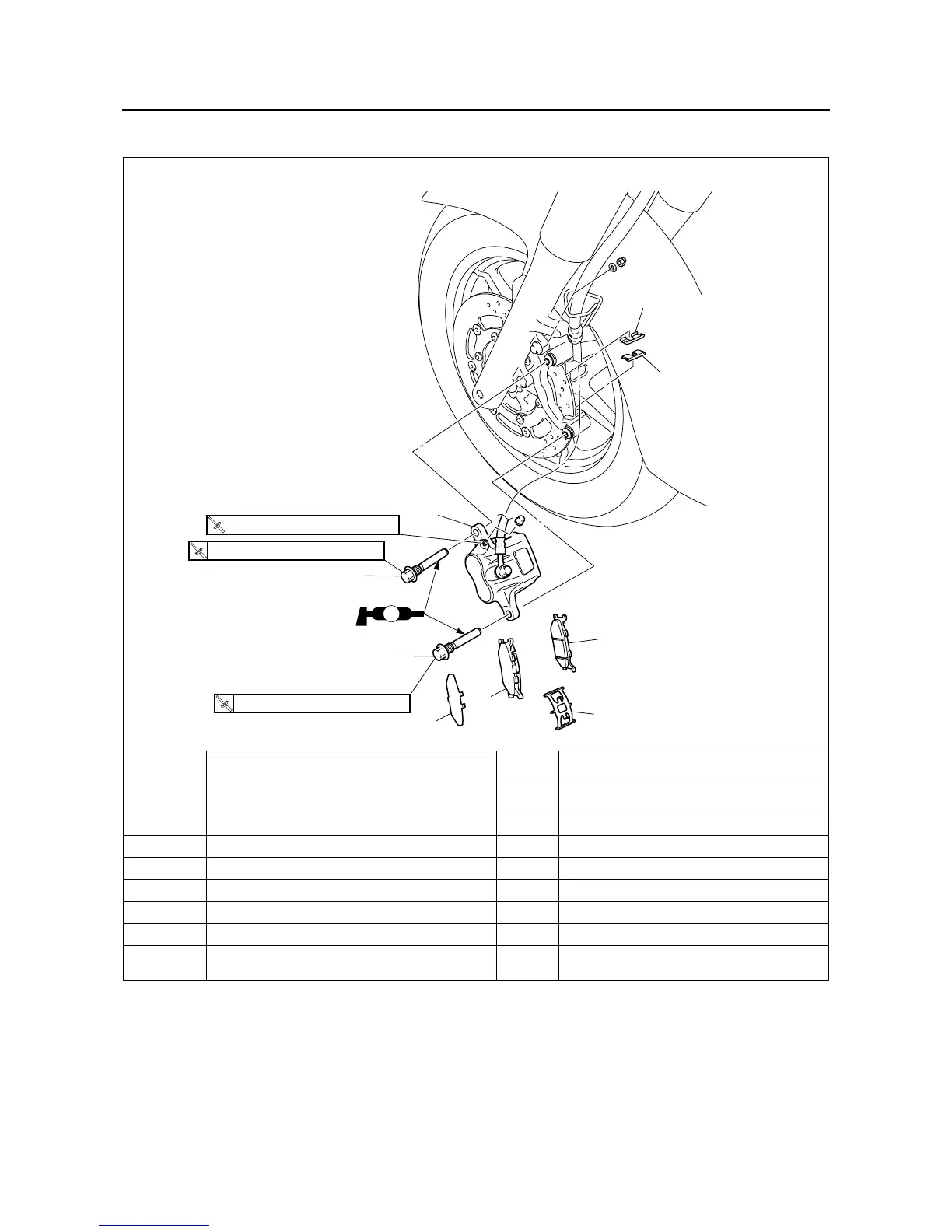

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Front brake caliper retaining bolt 2
2 Front brake caliper 1
3 Front brake pad 2
4 Brake pad shim 1
5 Front brake pad spring 1
6 Front brake pad support 2
For installation, reverse the removal proce-
dure.
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
LS
2
1
1
3
4
3
5
6
6
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
