CRANKSHAFT
5-74
EAS25960
CRANKSHAFT

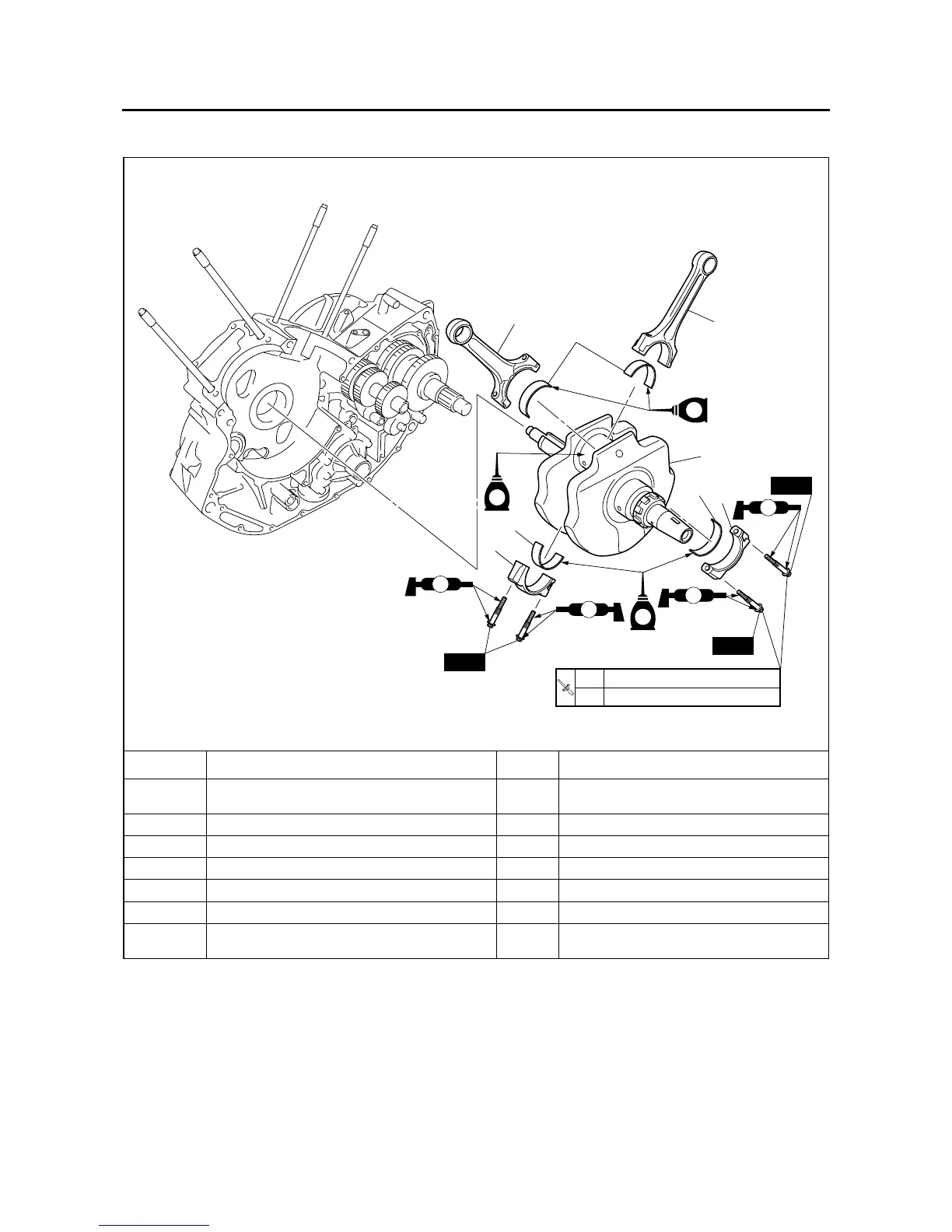

Removing the crankshaft
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-65.
1 Crankshaft 1
2 Connecting rod cap 2
3 Big end lower bearing 2
4 Connecting rod 2
5 Big end upper bearing 2
For installation, reverse the removal proce-
dure.
E
E
M
M
M
M
New
New
New
E
T
R
.
.
1st 15 Nm (1.5 m
•
kg, 11 ft
•
lb)
2nd Specified angle 125–135˚
1
2
3
4
5
4
2
3
To Next Page
