ENGINE
3-11
CAUTION:
ECA11C1001
• Engine oil also lubricates the clutch and the
wrong oil types or additives could cause
clutch slippage. Therefore, do not add any
chemical additives or use engine oils with a
grade of CD “a” or higher and do not use
oils labeled “ENERGY CONSERVING II”
“b”.
• Do not allow foreign materials to enter the
crankcase.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Check the engine oil level again.
NOTE:
Before checking the engine oil level, wait a few
minutes until the oil has settled.
EAS20780

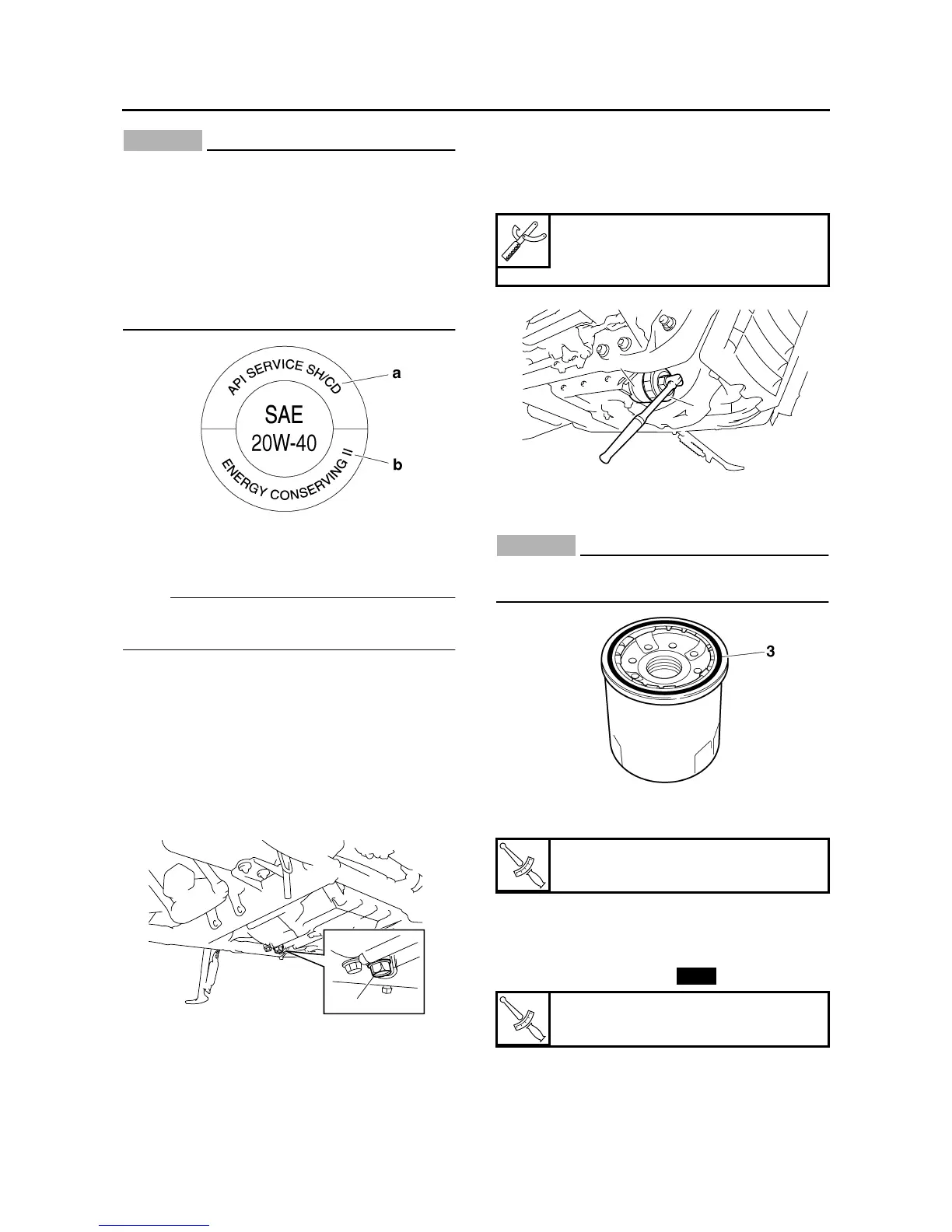

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Engine oil drain bolt “1”
(along with the gasket)
4. Drain:
• Engine oil
(completely from the crankcase)
5. If the oil filter cartridge is also to be replaced,
perform the following procedure.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the oil filter cartridge “1” with an oil
filter wrench “2”.
b. Lubricate the O-ring “3” of the new oil filter
cartridge with a thin coat of engine oil.
CAUTION:
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
6. Install:
• Engine oil drain bolt
(along with the gasket )
7. Fill:
• Crankcase
(with the specified amount of the recom-
mended engine oil)
1
Oil filter wrench
90890-01469
YM-01469
T
R
.
.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
T
R
.
.
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
2
1
New
