ELECTRICAL COMPONENTS
8-102
b. Set the main switch to “ON”.
c. Measure the intake air pressure sensor out-
put voltage.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28420

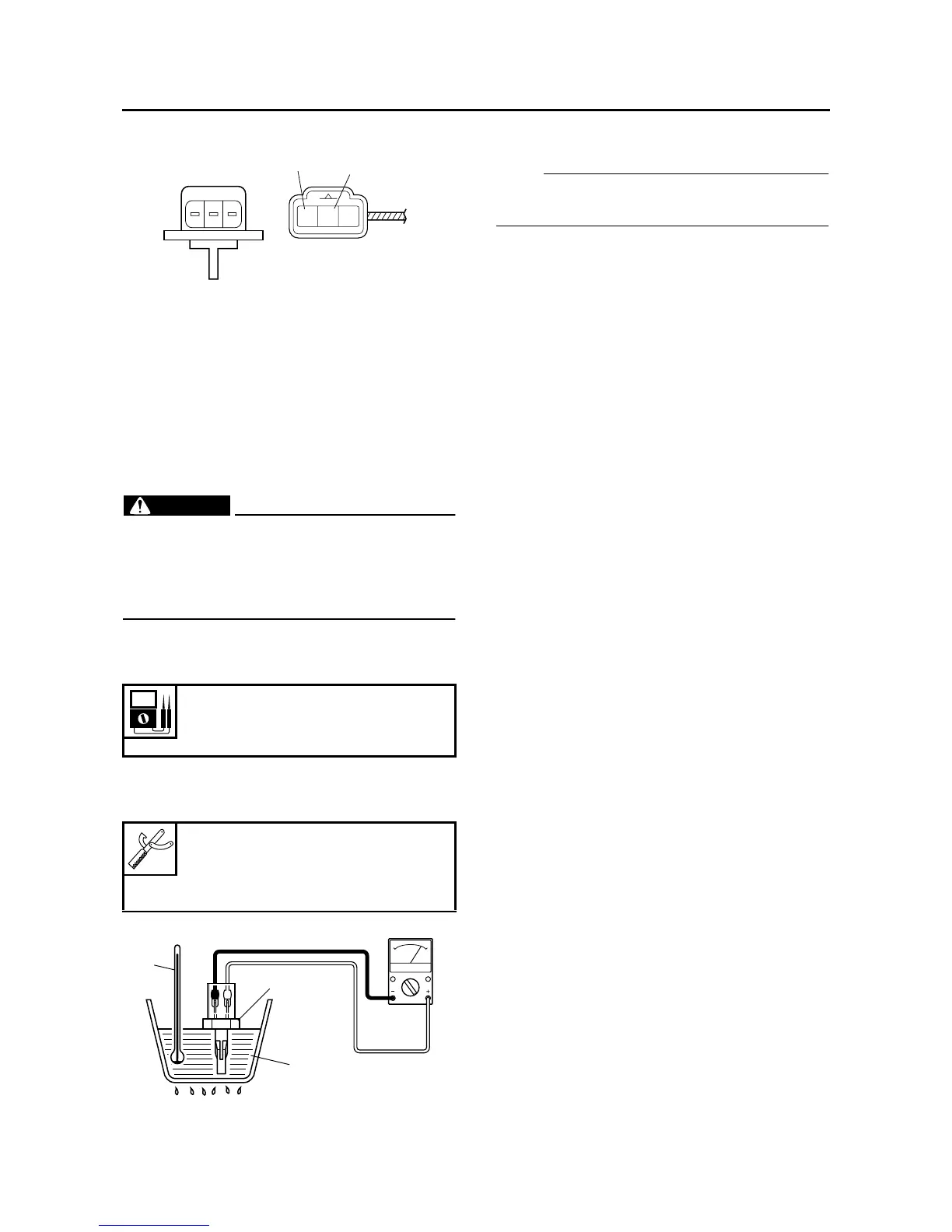

CHECKING THE AIR TEMPERATURE
SENSOR
1. Remove:
• Air temperature sensor
WARNING
EWA3D81003
• Handle the air temperature sensor with
special care.
• Never subject the air temperature sensor to
strong shocks. If the air temperature sen-
sor is dropped, replace it.
2. Check:
• Air temperature sensor resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 100) to the air
temperature sensor terminal as shown.
b. Immerse the air temperature sensor “1” in a
container filled with water “2”.
NOTE:
Make sure that the air temperature sensor termi-
nals do not get wet.
c. Place a thermometer “3” in the water.
d. Slowly heat the water, and then let it cool
down to the specified temperature.
e. Measure the air temperature sensor resis-
tance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Air temperature sensor resis-
tance
290–390 Ω at 80 °C (176 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
L
B/L
1
2
P
3
1
2
