SWINGARM
4-65
EAS23330
SWINGARM

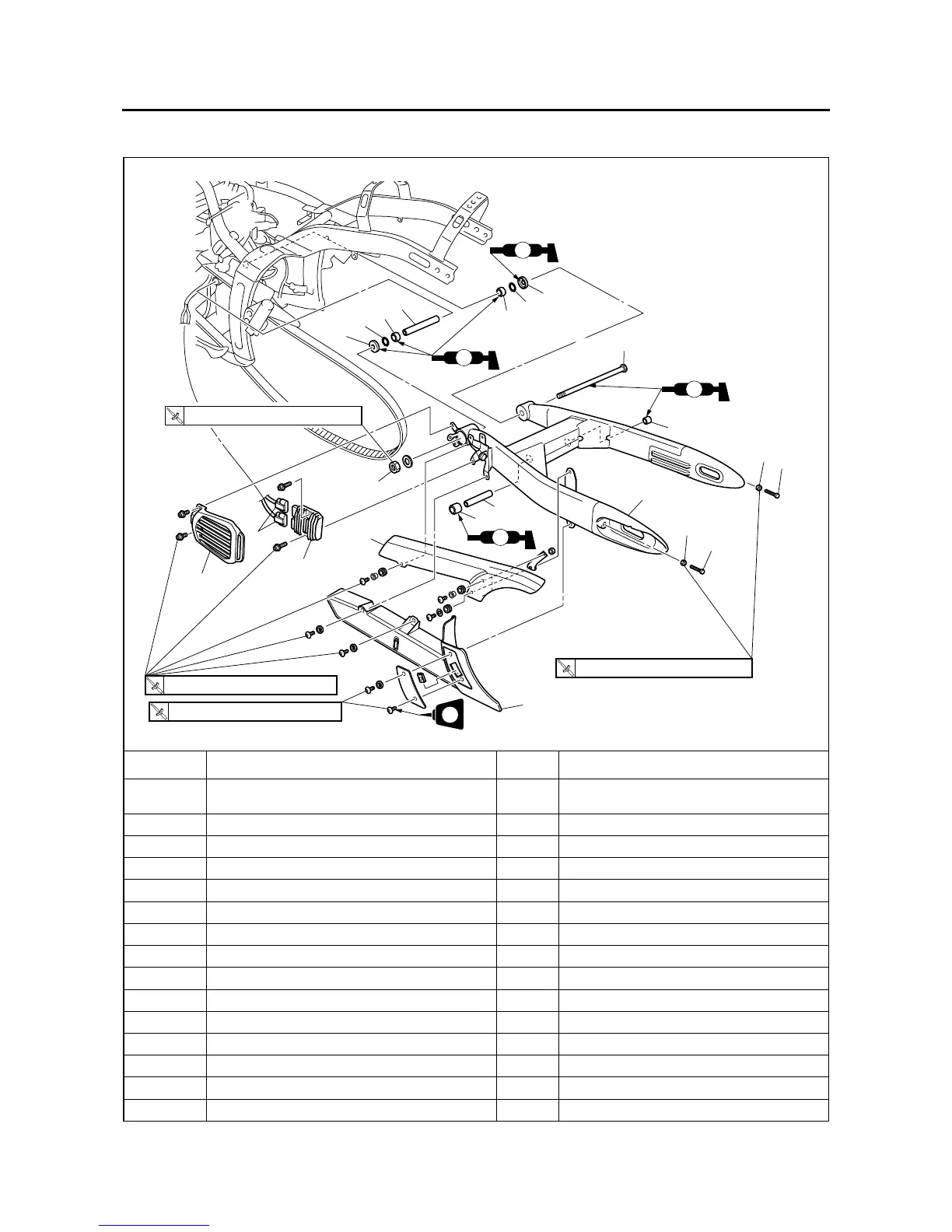

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Connecting arms
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-60.
1 Rectifier/regulator cover 1
2 Rectifier/regulator coupler 2 Disconnect.
3 Rectifier/regulator 1
4 Drive belt adjusting bolt 2
5 Drive belt adjusting locknut 2
6 Drive belt upper guard 1
7 Drive belt lower guard 1
8 Pivot shaft nut 1
9 Pivot shaft 1
10 Swingarm 1
11 Spacer 1
12 Bearing 2
13 Dust cover 2
14 Washer 2
LS
LS
LS
LS
LT
LT
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
85 Nm (8.5 m
•
kg, 61 ft
•
Ib)
1
3
2
7
8
4
5
4
5
10
6
9
14
14
15
16
13
12
12
11
13
16
