SWINGARM
4-67
EAS23350
REMOVING THE SWINGARM
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
rear wheel is elevated.

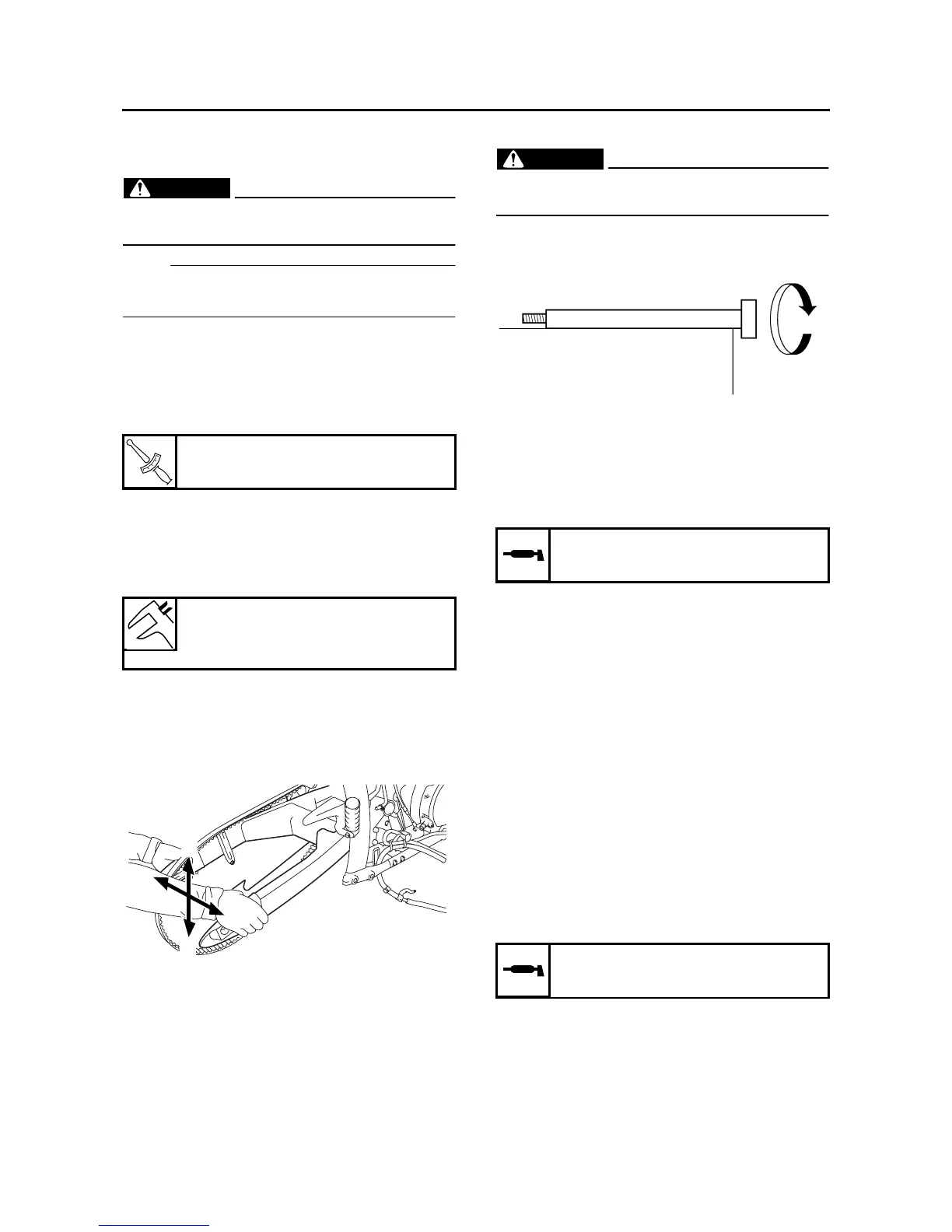

2. Measure:
• Swingarm side play
• Swingarm vertical movement
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Measure the tightening torque of the pivot
shaft nut.
b. Measure the swingarm side play “A” by mov-
ing the swingarm from side to side.
c. If the swingarm side play is out of specifica-
tion, check the spacers, bearings, washers,
and dust covers.
d. Check the swingarm vertical movement “B”
by moving the swingarm up and down.
If the swingarm vertical movement is not
smooth or if there is binding, check the spac-
ers, bearings, washers, and dust covers.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS23360
CHECKING THE SWINGARM
1. Check:
• Swingarm
Bends/cracks/damage → Replace.
2. Check:
• Pivot shaft
Roll the pivot shaft on a flat surface.
Bends → Replace.
WARNING
EWA13770
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
• Pivot shaft
• Dust covers
• Spacers
• Washers
• Bearings
4. Check:
• Dust covers
• Spacer
• Washers
Damage/wear → Replace.
5. Check:
• Bearings
Damage/pitting → Replace.
6. Check:
• Spacers
Damage/scratches → Replace.
EAS28780
INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
• Spacers
• Dust covers
• Pivot shaft
2. Install:
• Bearings “1”
T
R
.
.
Pivot shaft nut
85 Nm (8.5 m·kg, 61 ft·lb)
Swingarm side play (at the end of
the swingarm)
1.0 mm (0.04 in)
A
B
Recommended cleaning solvent
Kerosene
Recommended lubricant
Lithium-soap-based grease
