SWINGARM
4-68
3. Install:
• Pivot shaft nut
4. Install:
• Rectifier/regulator
NOTE:
When installing the rectifier/regulator, first tight-
en the upper bolt, then the lower bolt.
5. Adjust:
• Drive belt slack
Refer to “ADJUSTING THE DRIVE BELT
SLACK” on page 3-23.

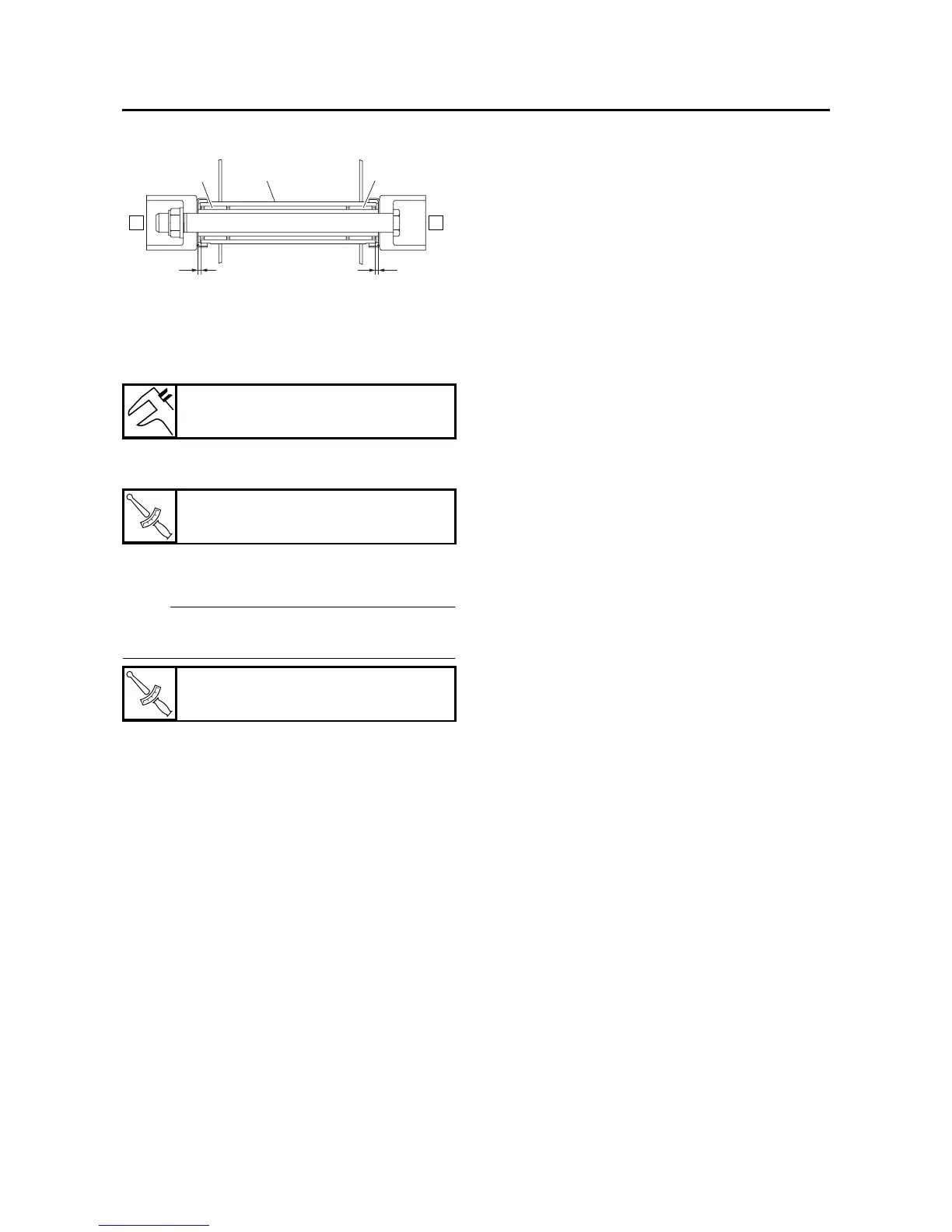

2. Swingarm
A. Left side
B. Right side
Installed depth “a”
0–1.0 mm (0–0.04 in)
T
R
.
.
Pivot shaft nut
85 Nm (8.5 m·kg, 61 ft·lb)
T
R
.
.
Rectifier/regulator bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
a
1
1
2
A
B
a
