ELECTRIC STARTER
5-63
EAS24790

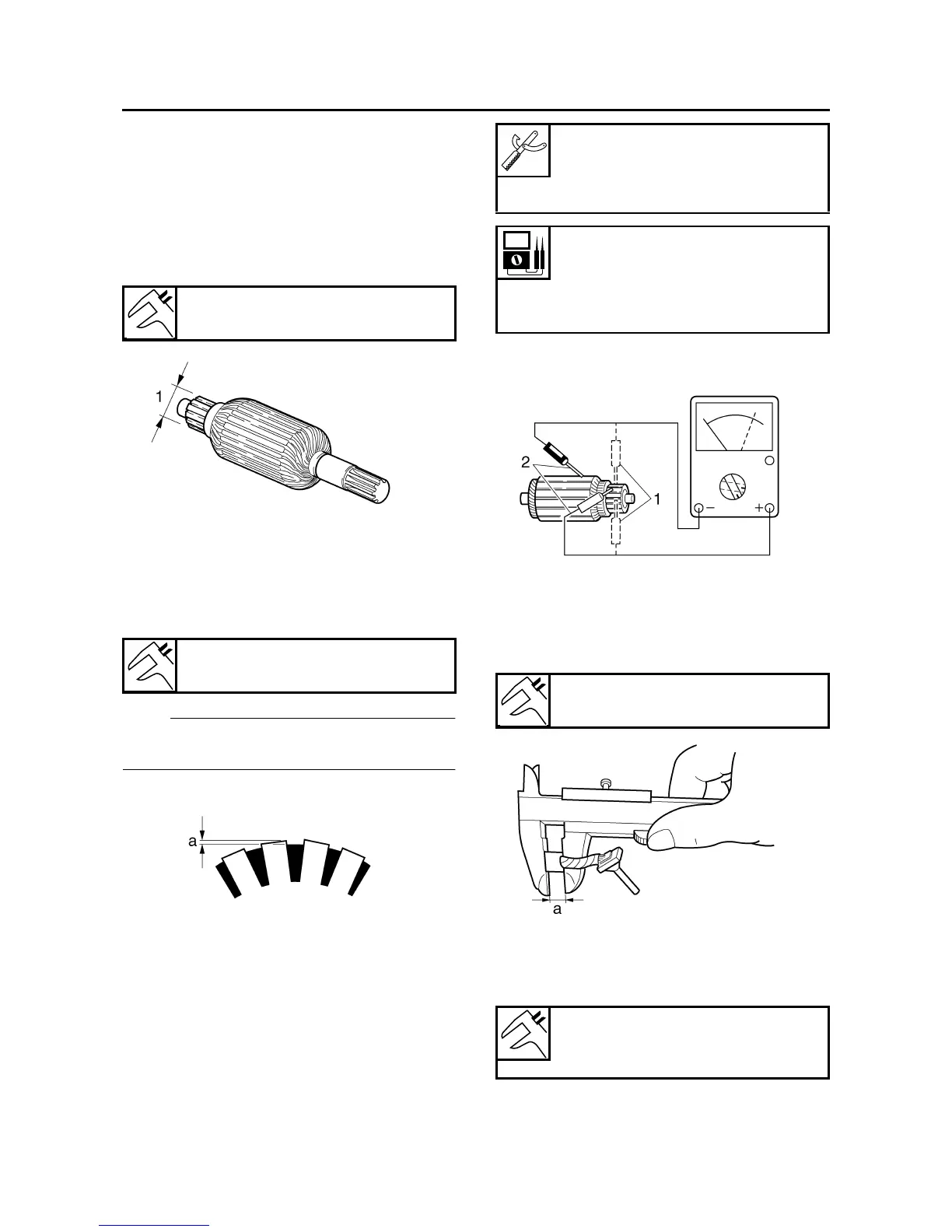

CHECKING THE STARTER MOTOR
1. Check:
• Commutator
Dirt → Clean with 600 grit sandpaper.
2. Measure:
• Commutator diameter “1”
Out of specification → Replace the starter
motor.
3. Measure:
• Mica undercut “a”
Out of specification → Scrape the mica to the
proper measurement with a hacksaw blade
that has been grounded to fit the commutator.
NOTE:
The mica of the commutator must be undercut to
ensure proper operation of the commutator.
4. Measure:
• Armature assembly resistances (commutator
and insulation)
Out of specification → Replace the starter
motor.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Measure the armature assembly resistances
with the pocket tester.
b. If any resistance is out of specification, re-
place the starter motor.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
5. Measure:
• Brush length “a”
Out of specification → Replace the brushes
as a set.
6. Measure:
• Brush spring force
Out of specification → Replace the brush
springs as a set.
Limit
27.0 mm (1.06 in)
Mica undercut (depth)
0.70 mm (0.03 in)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Armature coil
Commutator resistance “1”
0.01–0.02 Ω at 20 °C (68 °F)
Insulation resistance “2”
Above 1 MΩ at 20 °C (68 °F)
Limit
5.00 mm (0.20 in)
Brush spring force
7.65–10.01 N (27.54–36.03 oz)
(780–1021 gf)
To Next Page
