THROTTLE BODIES
7-10

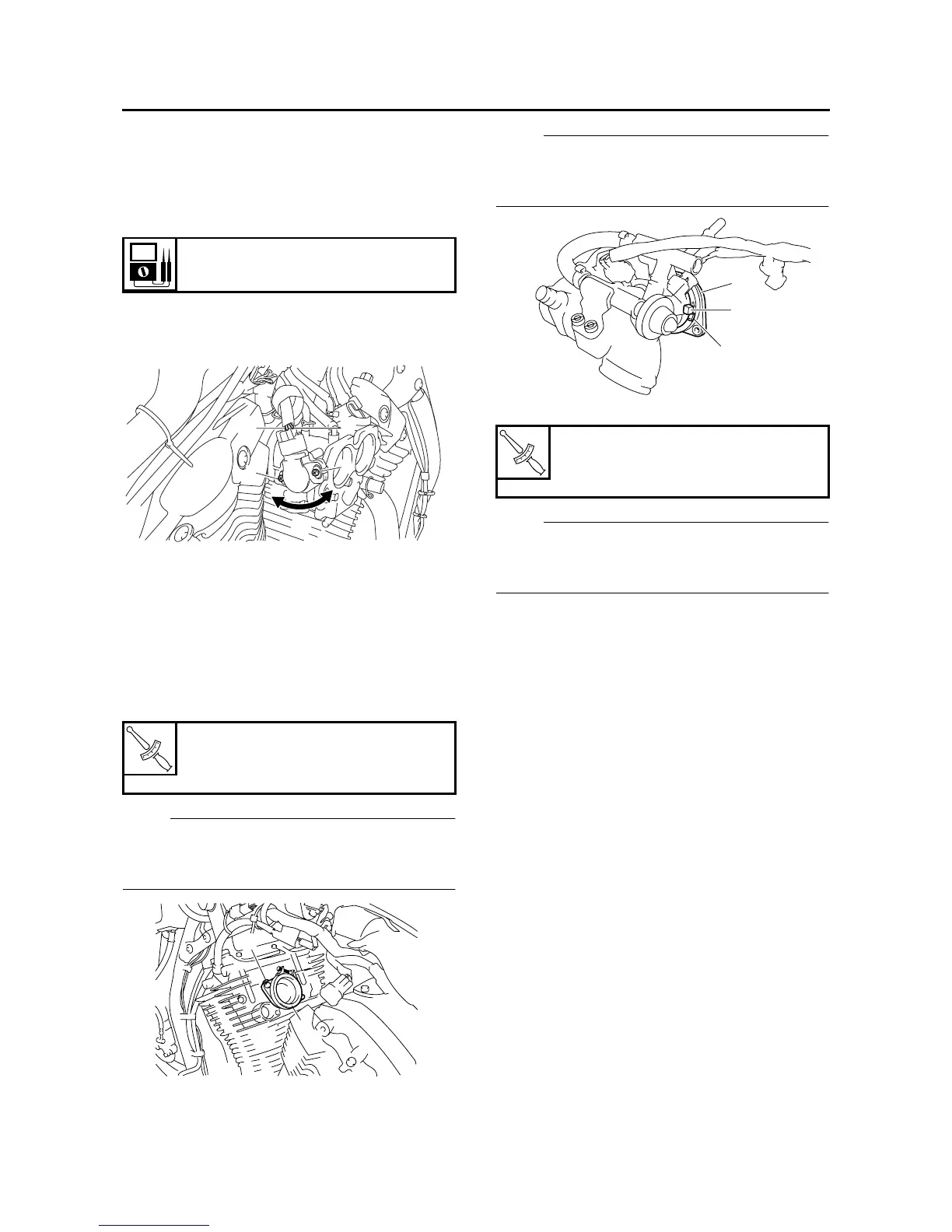

c. Turn the main switch to “ON”.
d. Measure the throttle position sensor output
voltage.
e. Adjust the throttle position sensor angle so
that the output voltage is within the specified
range.
f. After adjusting the throttle position sensor an-
gle, tighten the throttle position sensor
screws “3”.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS3D81006
INSTALLING THE INTAKE MANIFOLD
ASSEMBLY
1. Install:
• Intake manifold assembly
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install the front cylinder intake manifold joint
“1” to the front cylinder head.
NOTE:
Install the front cylinder intake manifold joint with
its projection “a” facing up as shown in the illus-
tration.
b. Install the rear cylinder intake manifold joint
“2” to the intake manifold assembly.
NOTE:
Make sure that the projection “b” on the rear cyl-
inder intake manifold joint contacts the projec-
tion “c” on the intake manifold assembly.
c. Install the intake manifold assembly.
NOTE:
Lubricate the rear cylinder intake manifold joint
and rear cylinder head mating surfaces with en-
gine oil.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Output voltage (at idle)
0.63–0.73 V
T
R
.
.
Front cylinder intake manifold
joint bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
1
2
3
3
1
a
T
R
.
.
Rear cylinder intake manifold
joint bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
c
b
2
