REAR WHEEL
4-18
EAS28760
REMOVING THE REAR WHEEL (DISC)
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
rear wheel is elevated.
2. Remove:
• Rear brake caliper
NOTE:
Do not depress the brake pedal when removing
the brake caliper.

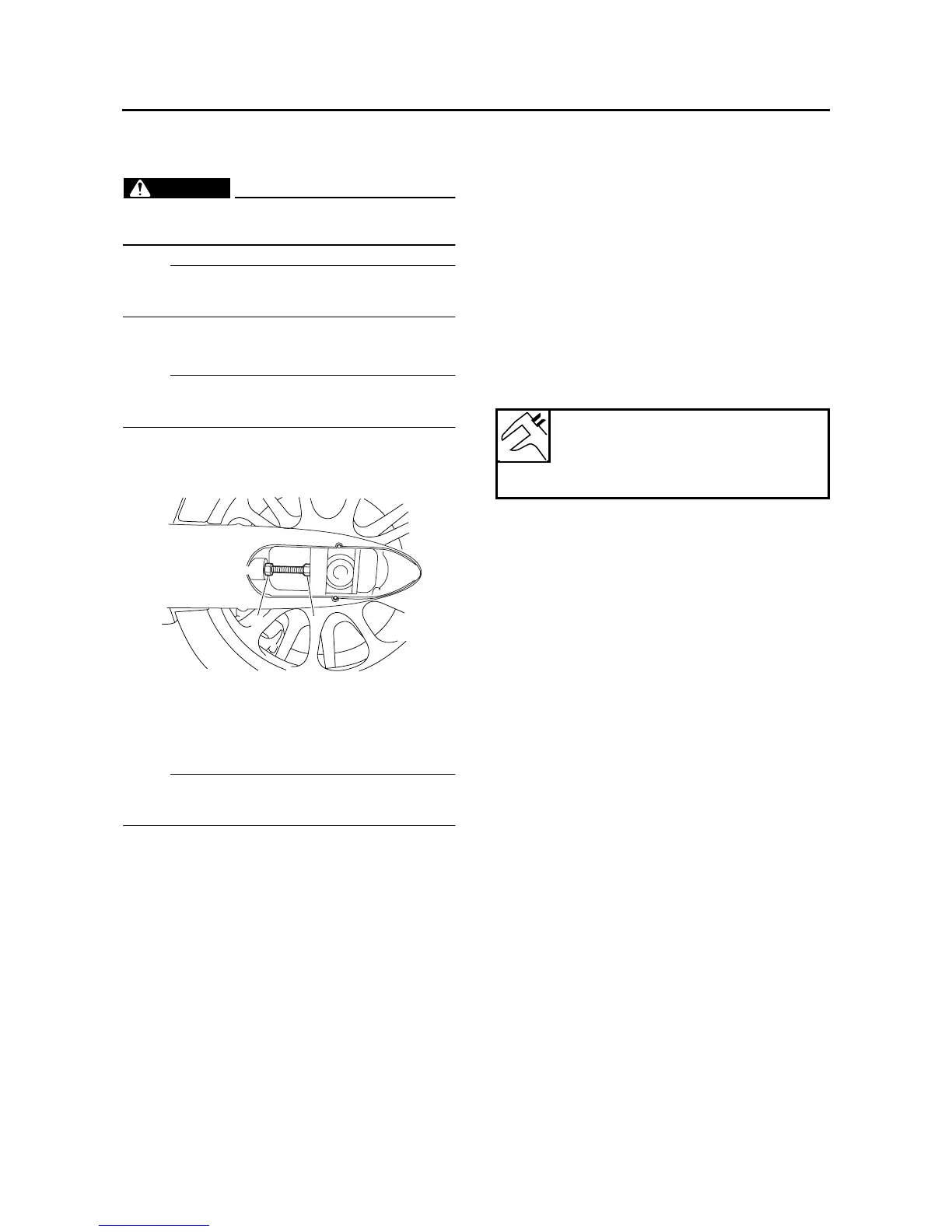

3. Loosen:
• Drive belt adjusting locknuts “1”
• Drive belt adjusting bolts “2”
4. Remove:
• Rear wheel axle nut
• Rear wheel axle
• Rear wheel
NOTE:
Push the rear wheel forward and remove the
drive belt from the rear wheel pulley.
EAS22080
DISASSEMBLING THE REAR WHEEL
1. Remove:
• Oil seals
• Wheel bearings
Refer to “DISASSEMBLING THE FRONT
WHEEL” on page 4-9.
EAS22090
CHECKING THE REAR WHEEL
1. Check:
• Rear wheel axle
• Rear wheel
• Wheel bearings
• Oil seals
Refer to “CHECKING THE FRONT WHEEL”
on page 4-9.
2. Check:
• Tire
• Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-27 and “CHECKING THE WHEELS” on
page 3-28.
3. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-9.
EAS3D81016
CHECKING THE REAR BRAKE CALIPER
BRACKET
1. Check:
• Rear brake caliper bracket
Cracks/damage → Replace.
EAS22110
CHECKING THE REAR WHEEL DRIVE HUB
1. Check:
• Rear wheel drive hub
Cracks/damage → Replace.
• Rear wheel drive hub dampers
Damage/wear → Replace.
EAS22130
CHECKING AND REPLACING THE REAR
WHEEL PULLEY
1. Check:
• Rear wheel pulley
Surface plating has come off → Replace the
rear wheel pulley.
Bent teeth → Replace the rear wheel pulley.
2. Replace:
• Rear wheel pulley
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the self-locking nuts and the rear
wheel pulley.
b. Clean the rear wheel drive hub with a clean
cloth, especially the surfaces that contact the
pulley.
c. Install the new rear wheel pulley.
1
2
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
