Yamaha XVS1300A 2007 - Page 142

REAR WHEEL
4-17

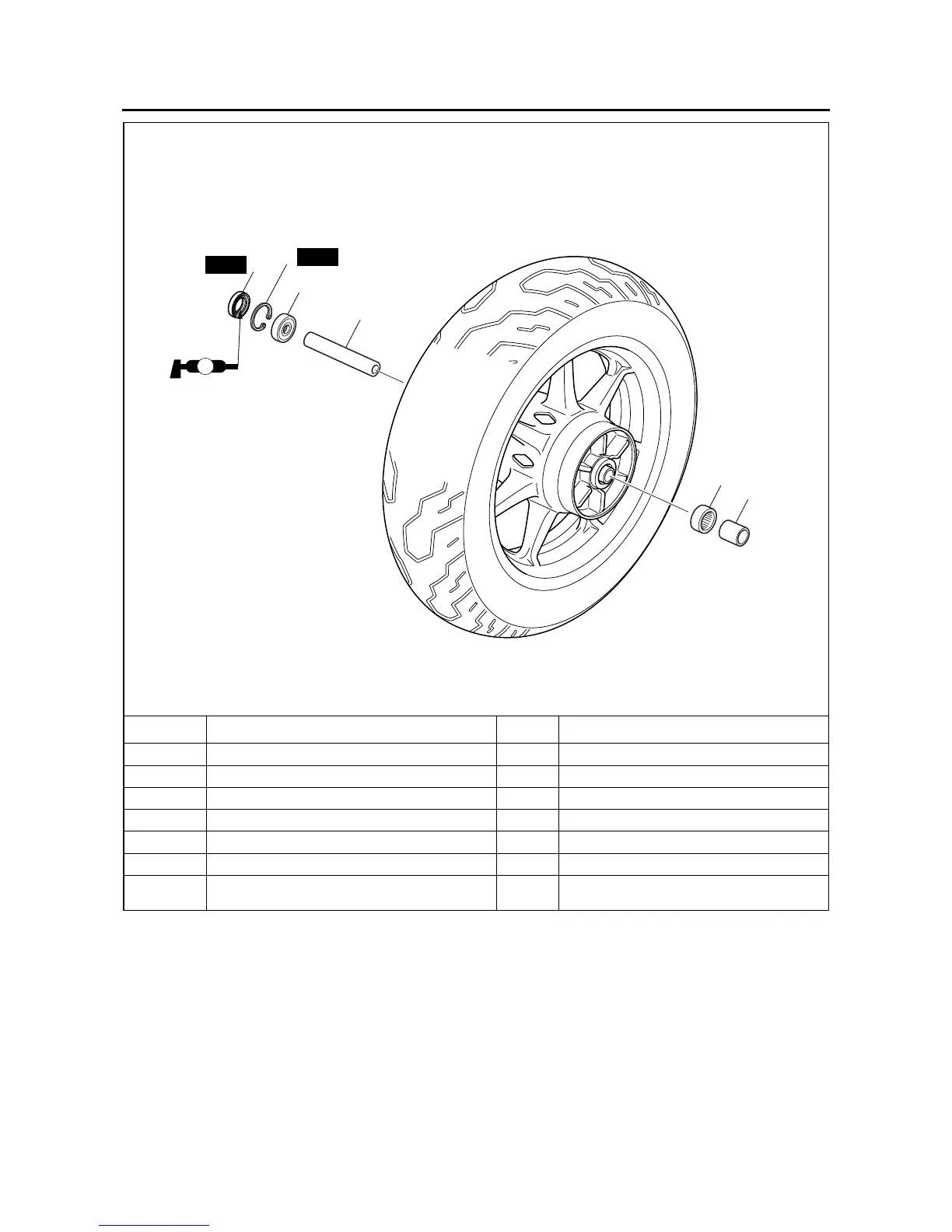

Disassembling the rear wheel
Order Job/Parts to remove Q’ty Remarks
1Collar 1
2 Bearing 1
3 Oil seal 1
4 Circlip 1
5 Bearing 1
6 Spacer 1
For assembly, reverse the disassembly pro-
cedure.
5
3
New
New
LS
4
6
2
1
