REAR WHEEL
4-16

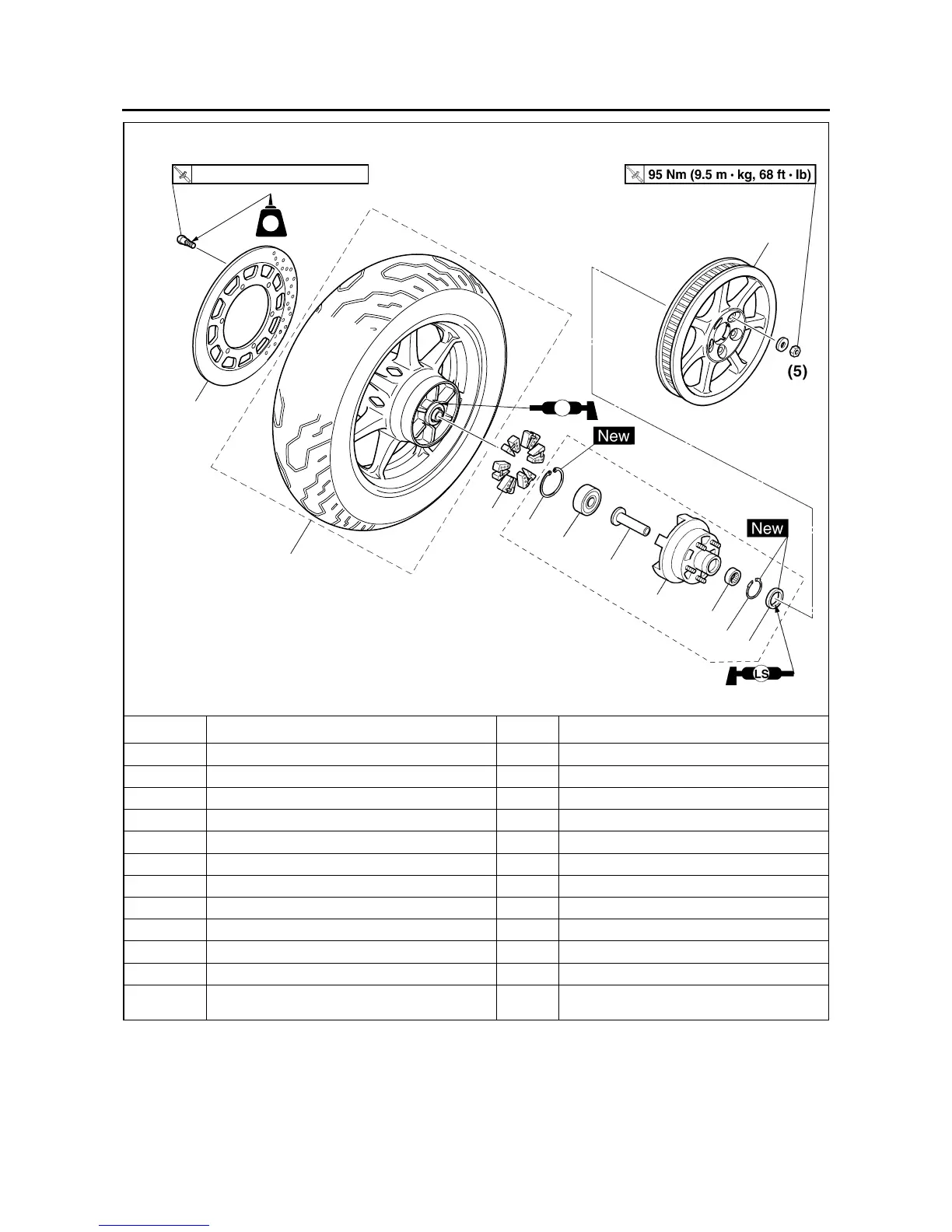

Removing the rear brake disc and rear wheel drive hub
Order Job/Parts to remove Q’ty Remarks
1 Rear brake disc 1
2 Rear wheel pulley 1
3 Oil seal 1
4 Circlip 1
5 Rear wheel drive hub 1
6 Circlip 1
7 Bearing 1
8Collar 1
9 Bearing 1
10 Rear wheel drive hub damper 6
11 Rear wheel 1
For installation, reverse the removal proce-
dure.
1
11
2
3
4
9
8
7
6
10
5
LT
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
(6)
LS
