BALANCER GEARS
5-58
EAS3D81023
BALANCER GEARS

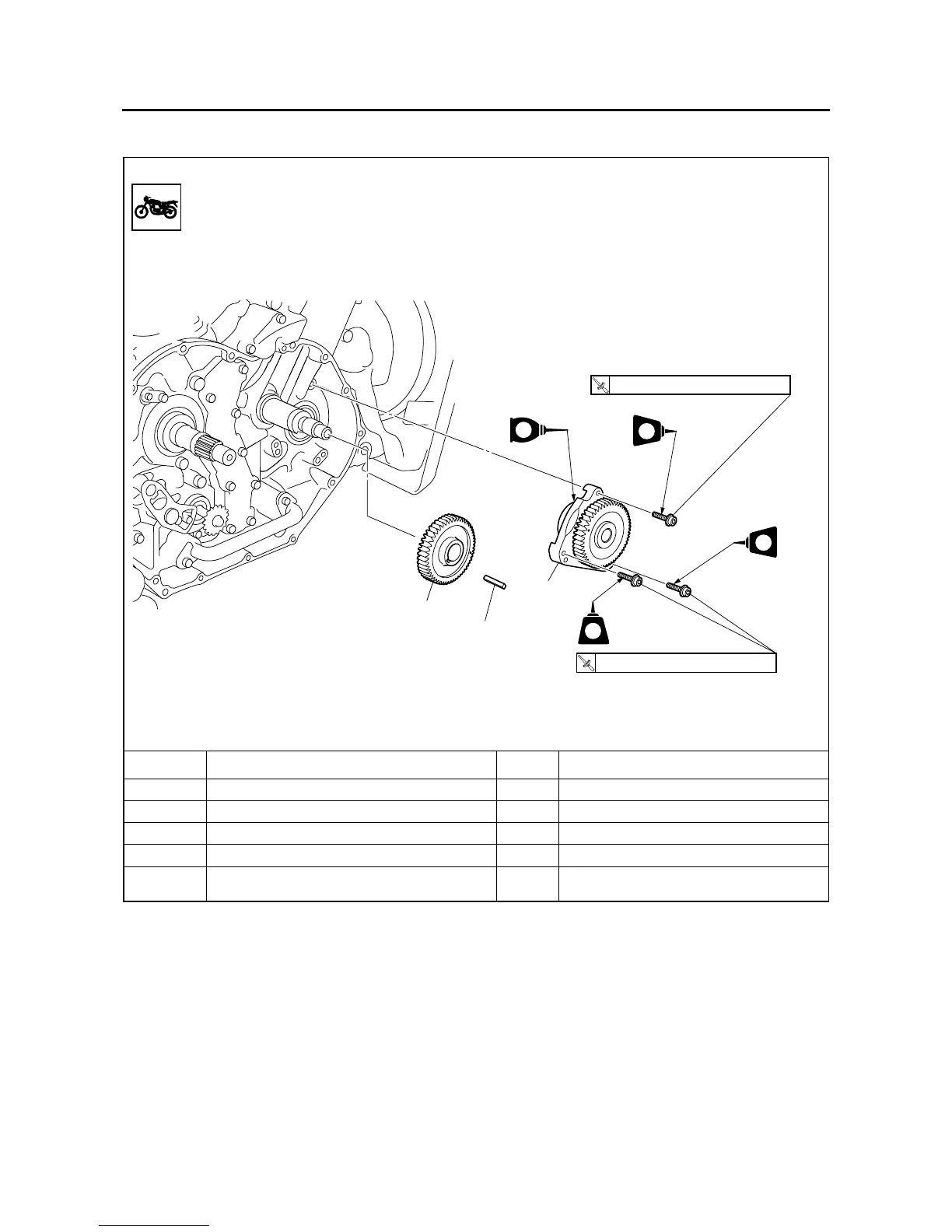

Removing the right balancer assembly
Order Job/Parts to remove Q’ty Remarks
Primary drive gear Refer to “CLUTCH” on page 5-45.
1 Straight key 1
2 Right balancer drive gear 1
3 Right balancer assembly 1
For installation, reverse the removal proce-
dure.
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
LT
LT
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
LT
E
LT
2
1
3
