BALANCER GEARS
5-59

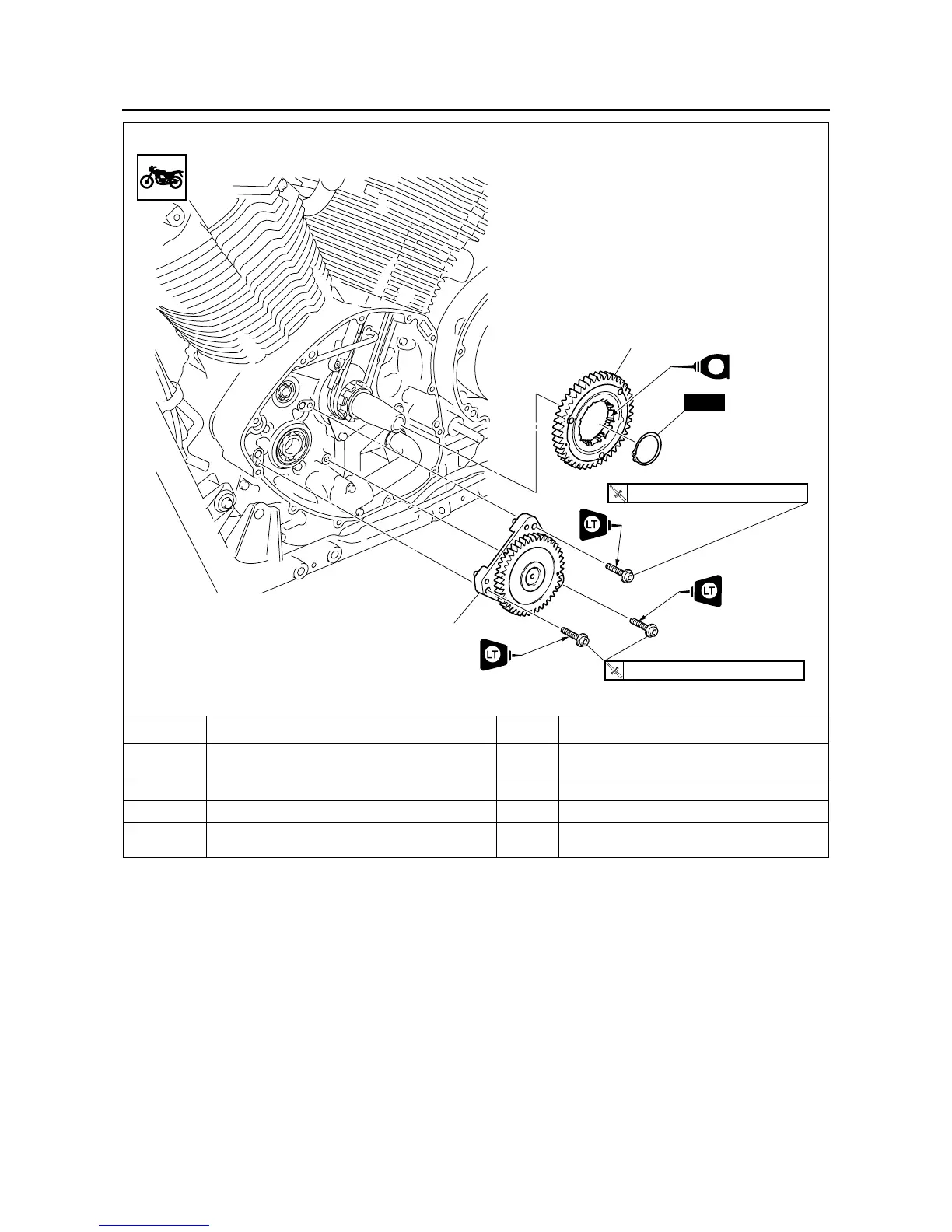

Removing the left balancer assembly
Order Job/Parts to remove Q’ty Remarks
Generator rotor/Starter clutch idle gear
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-39.
1 Left balancer drive gear 1
2 Left balancer assembly 1
For installation, reverse the removal proce-
dure.
1
2
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
New
E
