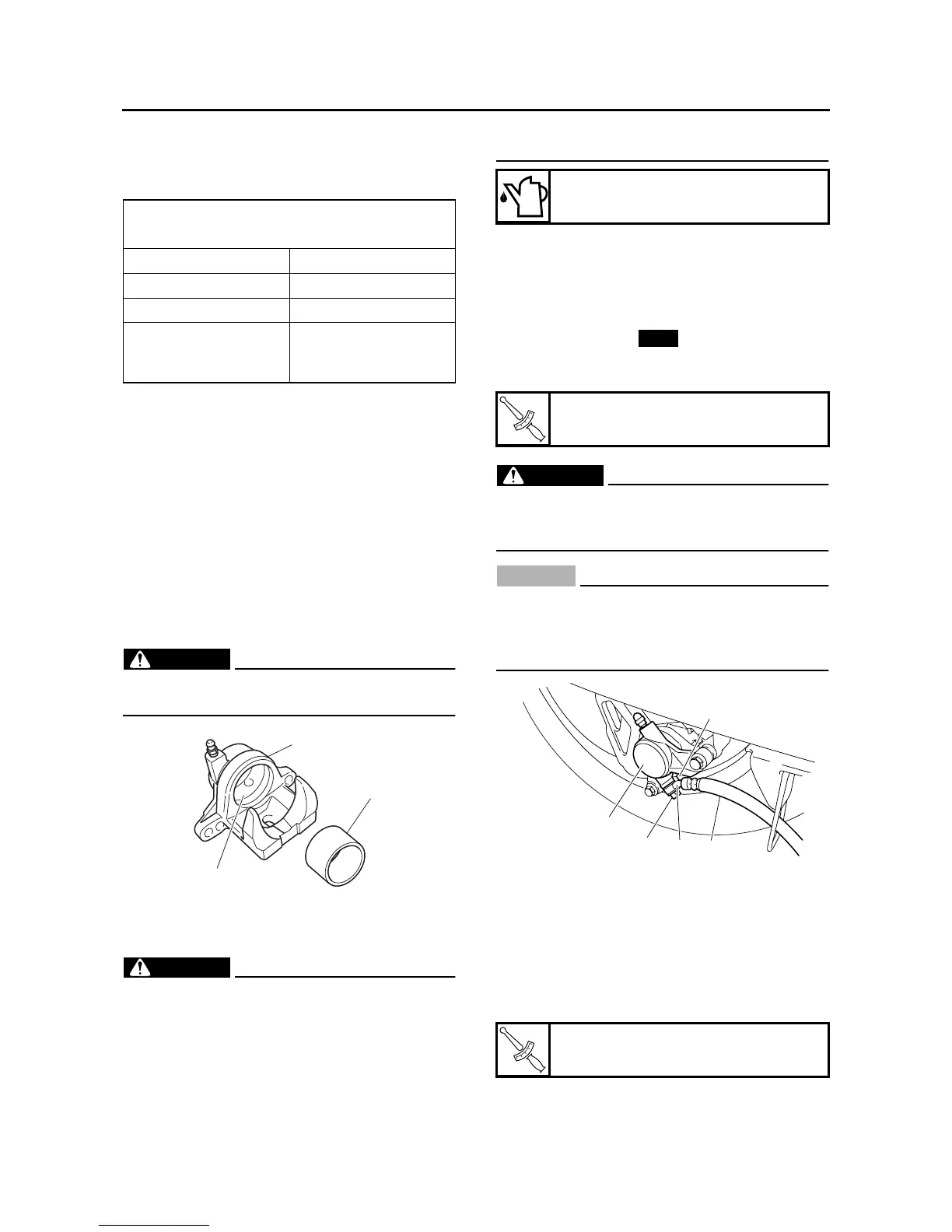

REAR BRAKE
4-40
b. Remove the brake caliper piston seals.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS22640
CHECKING THE REAR BRAKE CALIPER
1. Check:
• Brake caliper piston “1”
Rust/scratches/wear → Replace the brake
caliper piston.
• Brake caliper cylinder “2”
Scratches/wear → Replace the brake caliper
assembly.
• Brake caliper body “3”
Cracks/damage → Replace the brake caliper
assembly.
• Brake fluid delivery passages
(brake caliper body)
Obstruction → Blow out with compressed air.
WARNING
EWA13610
Whenever a brake caliper is disassembled,
replace the brake caliper piston seals.
EAS22650
ASSEMBLING THE REAR BRAKE CALIPER
WARNING
EWA13620
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents as they will cause the piston seals
to swell and distort.
• Whenever a brake caliper is disassembled,
replace the brake caliper piston seals.
EAS22670
INSTALLING THE REAR BRAKE CALIPER
1. Install:
• Rear brake caliper “1”
(temporarily)
• Copper washers
• Rear brake hose “2”
• Rear brake hose union bolt “3”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CABLE
ROUTING” on page 2-43.
CAUTION:
ECA14170
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
2. Remove:
• Rear brake caliper
3. Install:
• Brake pads
• Brake pad springs
• Rear brake caliper
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-38.
Recommended brake component replace-
ment schedule
Brake pads If necessary
Piston seals Every two years
Brake hoses Every four years
Brake fluid
Every two years and
whenever the brake
is disassembled
3
1
2
Recommended fluid
DOT 4
T
R
.
.
Rear brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
T
R
.
.
Rear brake caliper retaining bolt
27 Nm (2.7 m·kg, 19 ft·lb)
New
1
3
2
b
a
