Yamaha XVS1300A 2007 - Belt Drive

BELT DRIVE
4-69
EAS23510
BELT DRIVE

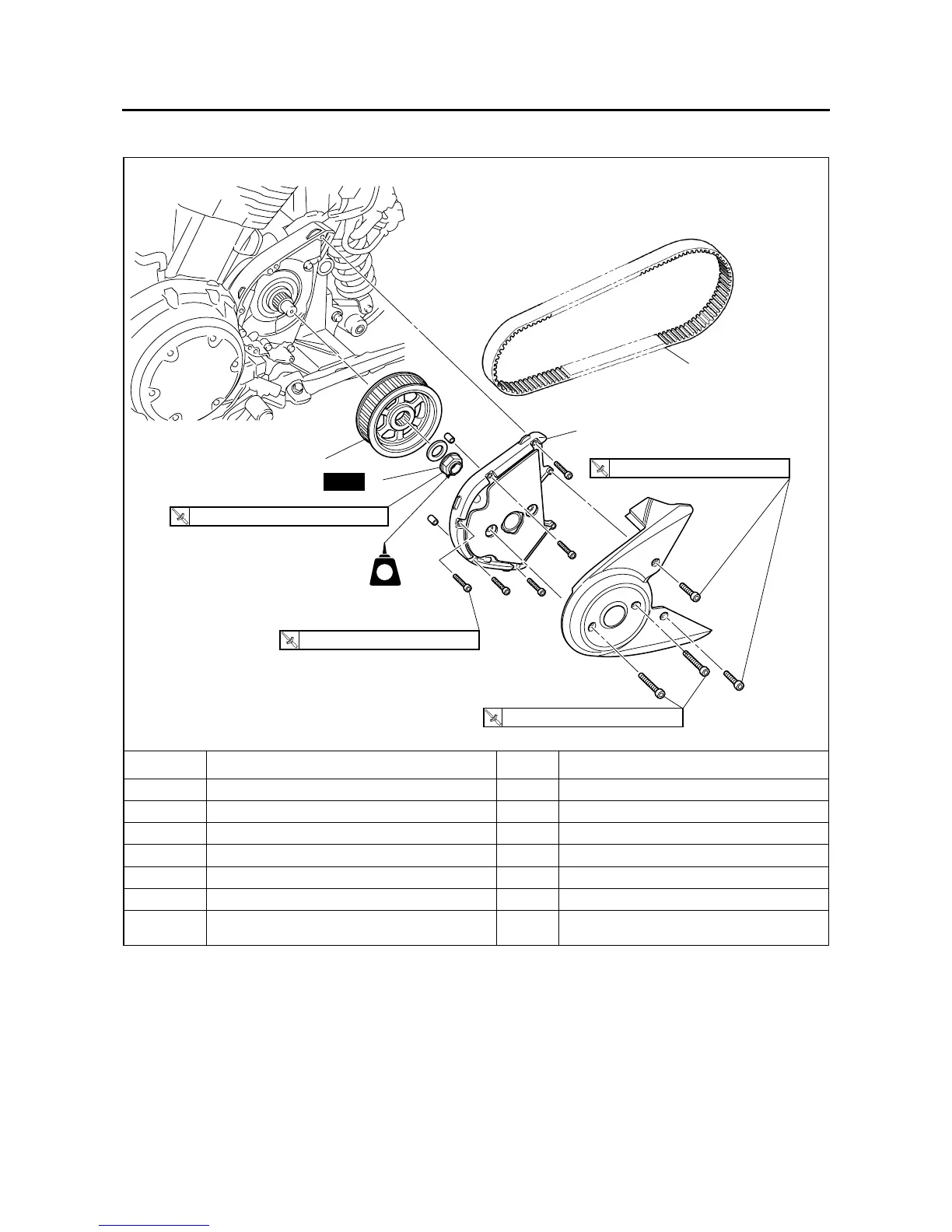

Removing the drive belt
Order Job/Parts to remove Q’ty Remarks
Rear wheel Refer to “REAR WHEEL” on page 4-13.
Swingarm Refer to “SWINGARM” on page 4-65.
1 Drive pulley cover 1
2Drive belt 1
3 Drive pulley nut 1
4 Drive pulley 1
For installation, reverse the removal proce-
dure.
New
LT
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
140 Nm (14.0 m
•
kg, 100 ft
•
lb)
1
2
3
4
