THERMOSTAT
6-4
EAS26440
THERMOSTAT

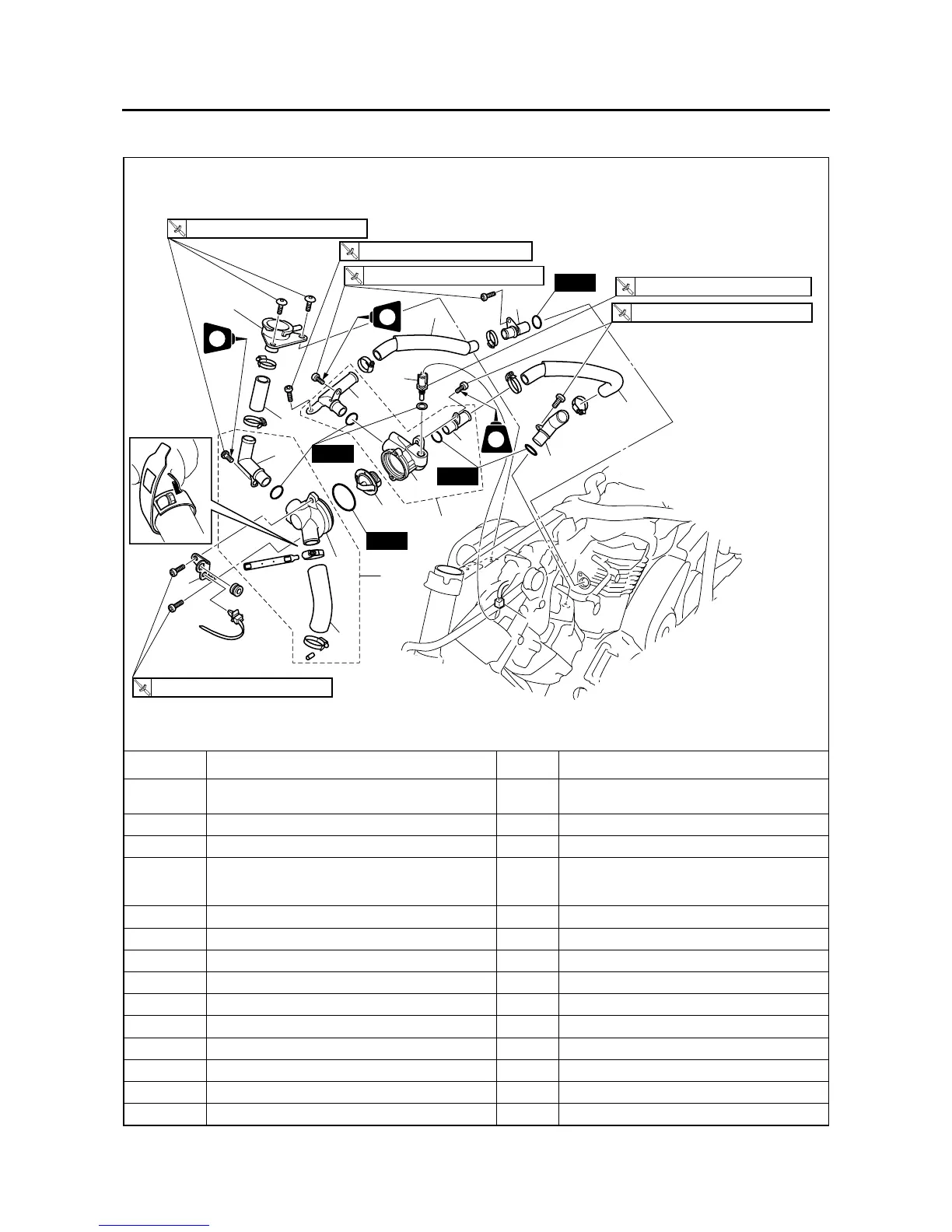

Removing the thermostat
Order Job/Parts to remove Q’ty Remarks
Rider seat/Left side cover
Refer to “GENERAL CHASSIS” on page
4-1.
Muffler/Front cylinder covers Refer to “ENGINE REMOVAL” on page 5-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-16.
1 Front cylinder thermostat inlet hose 1
2 Front cylinder thermostat inlet pipe 1 1
3 Rear cylinder thermostat inlet hose 1
4 Rear cylinder thermostat inlet pipe 1 1
5 Coolant temperature sensor coupler 1 Disconnect.
6 Coolant temperature sensor 1
7 Radiator filler pipe 1
8 Thermostat cover inlet hose 1
9 Thermostat bracket 1
10 Thermostat cover assembly 1
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
New
New
New
New
LT
LT
LT
LT
5
1
2
3
6
4
7
12
10
13
16
17
18
14
15
11
9
8
