FEATURES
1-4
EAS3D81033

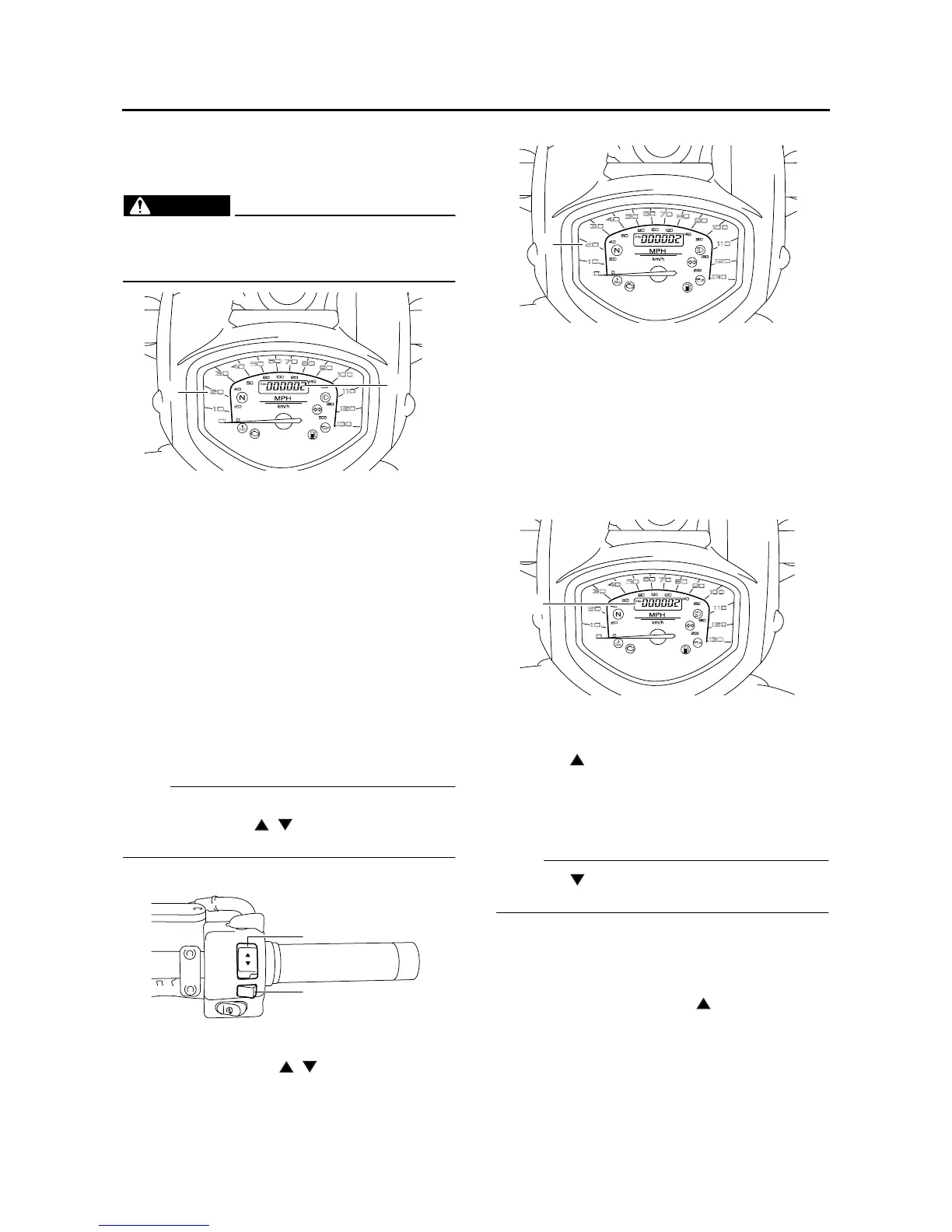

INSTRUMENT FUNCTIONS
Multi-function meter unit
WARNING
EWA3D81011
Be sure to stop the vehicle before making
any setting changes to the multi-function
meter unit.
The multi-function meter unit is equipped with
the following:
• a speedometer (which shows the riding speed)
• an odometer (which shows the total distance
traveled)
• two tripmeters (which show the distance trav-
eled since they were last set to zero)
• a fuel reserve tripmeter (which shows the dis-
tance traveled on the fuel reserve)
• a clock
• a self-diagnosis device
• a brightness control mode
NOTE:
Be sure to turn the key to “ON” before using the
“SELECT” switch “ / ” and “RESET” switch,
except for setting the brightness control mode.
Speedometer
The speedometer shows the riding speed.
When the key is turned to “ON”, the speedome-
ter needle will sweep once across the speed
range and then return to zero in order to test the
electrical circuit.
Odometer, tripmeter, and fuel reserve trip-
meter modes
Push the “” side of the “SELECT” switch to
switch the display between the odometer mode
“ODO”, the tripmeter modes “TRIP 1” and “TRIP
2” and the clock mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock → ODO
NOTE:
Push the “” side of the “SELECT” switch to
switch the display in the reverse order.
If the fuel level warning light comes on, the
odometer display will automatically change to
the fuel reserve tripmeter mode “F-TRIP” and
start counting the distance traveled from that
point. In that case, push the “” side of the “SE-
LECT” switch to switch the display between the
various tripmeter, odometer, and clock modes in
the following order:
F-TRIP → TRIP 1 → TRIP 2 → Clock → ODO →
F-TRIP
1. Speedometer
2. Odometer/tripmeter/fuel reserve
tripmeter/clock
1. “SELECT” switch “ / ”
2. “RESET” switch
1
2
SELECT
RESET
1
2
1. Speedometer
1. Odometer/tripmeter/fuel reserve
tripmeter/clock
1
1
