Yamaha XVS1300A 2007 - Cylinder Heads

CYLINDER HEADS
5-23
EAS24110
CYLINDER HEADS

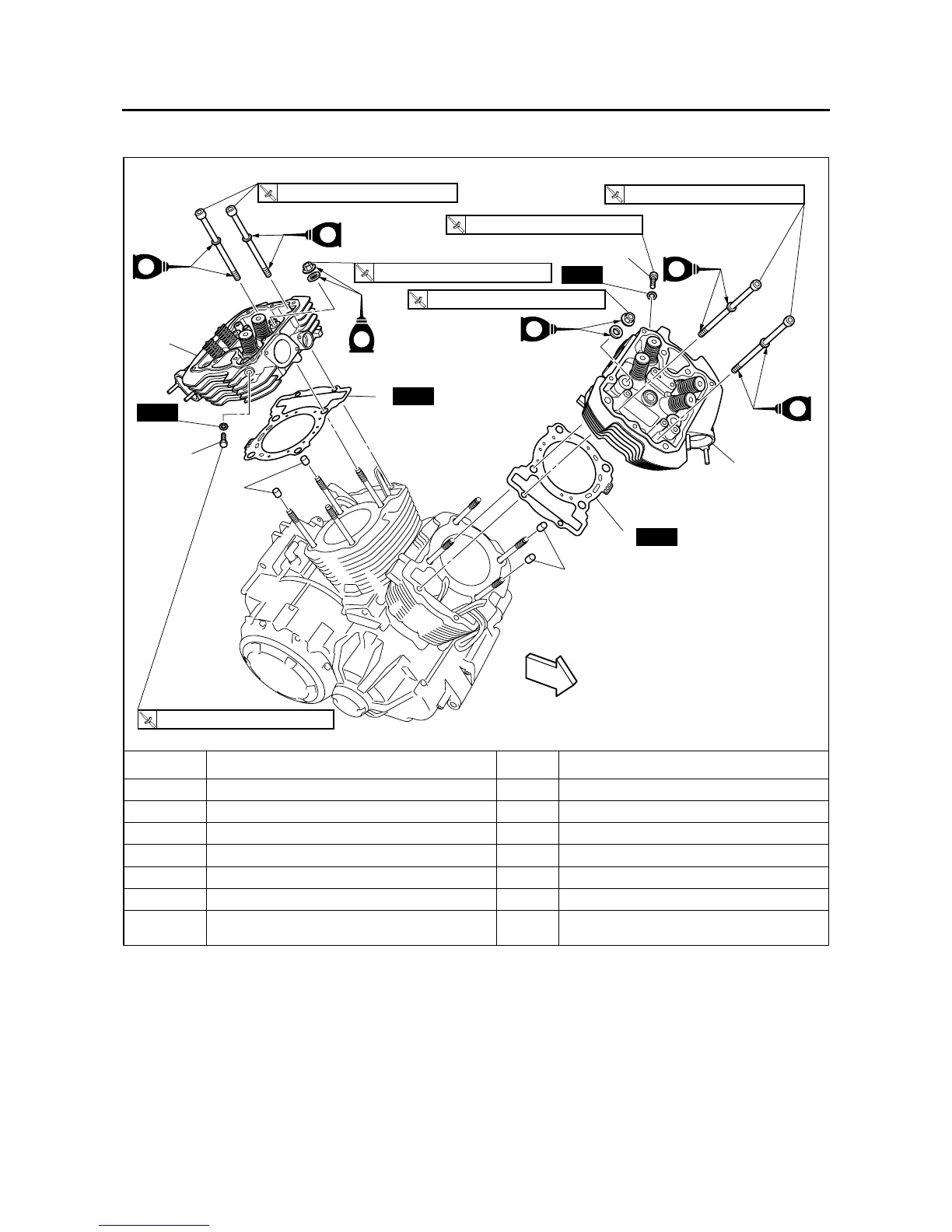

Removing the cylinder heads
Order Job/Parts to remove Q’ty Remarks
Camshaft assemblies Refer to “CAMSHAFTS” on page 5-11.
1 Oil check bolt 2
2 Front cylinder head 1
3 Rear cylinder head 1
4 Cylinder head gasket 2
5 Dowel pin 4
For installation, reverse the removal proce-
dure.
T
R
.
.
15 Nm (1.5 m
•
kg, 11 ft
•
Ib)
T
R
.
.
15 Nm (1.5 m
•
kg, 11 ft
•
Ib)
T
R
.
.
65 Nm (6.5 m
•
kg, 47 ft
•
Ib)
T
R
.
.
65 Nm (6.5 m
•
kg, 47 ft
•
Ib)
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
FWD
2
1
4
4
3
5
1
5
New
New
(4)
(4)
New
E
E
New
E
E
E
E
