WATER PUMP
6-7
EAS26500
WATER PUMP

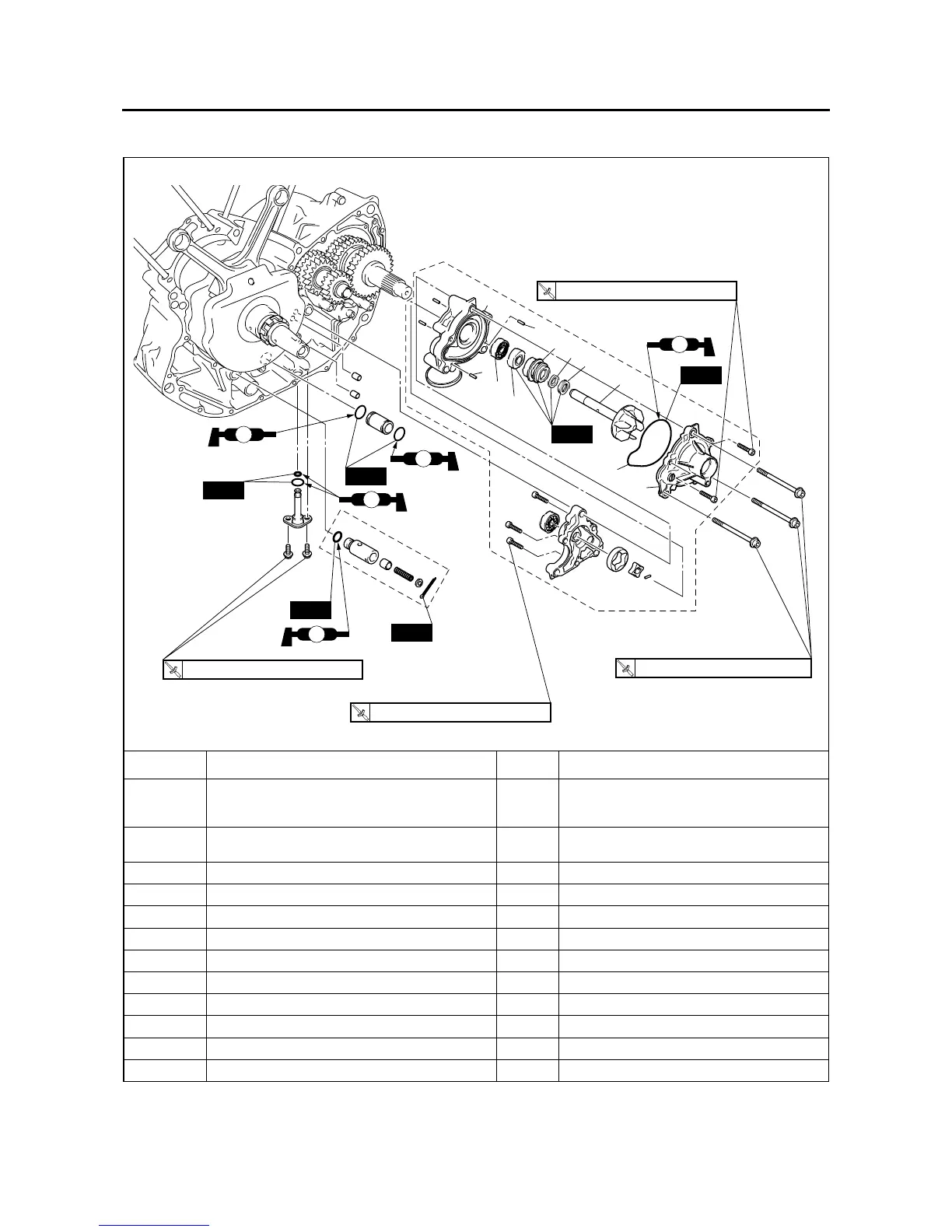

Removing the water pump
Order Job/Parts to remove Q’ty Remarks
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-65.
Oil pump rotors Refer to “OIL PUMP” on page 5-71.
1 Water pump housing cover 1
2Pin 2
3O-ring 1
4 Impeller shaft 1
5 Rubber damper holder 1
6 Rubber damper 1
7 Water pump seal 1
8 Oil seal 1
9 Bearing 1
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
24 Nm (2.4 m
•
kg, 17 ft
•
Ib)
LS
5
New
New
New
New
New
LS
LS
LS
New
LS
3
1
2
2
10
6
7
8
9
4
To Next Page
