ENGINE REMOVAL
5-4
EAS3D81039

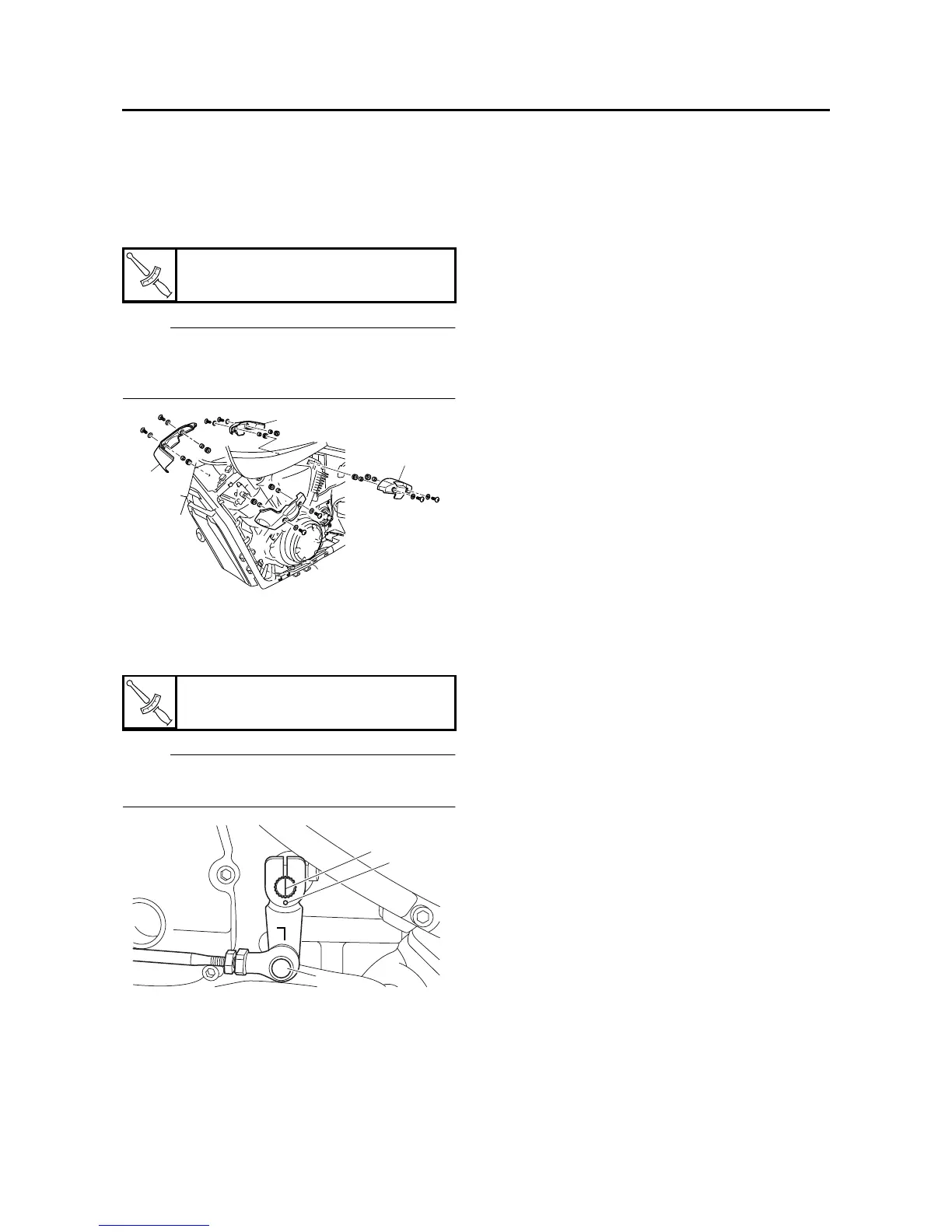

INSTALLING THE CYLINDER COVERS
1. Install:
• Rear cylinder right cover “1”
• Rear cylinder left cover “2”
• Front cylinder right cover “3”
• Front cylinder left cover “4”
NOTE:
Tighten the cover bolts temporarily, and then
tighten the front bolt, then the rear bolt, to spec-
ification.
EAS3D81018
INSTALLING THE SHIFT ARM
1. Install:
• Shift arm “1”
NOTE:
Align the “I” mark “a” in the shift shaft with the
punch mark “b” in the shift arm.
2. Adjust:
• Shift rod length
Refer to “ADJUSTING THE SHIFT PEDAL”
on page 3-23.
T
R
.
.
Cylinder cover bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
T
R
.
.
Shift arm bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
2
1
4
3
a
b
1
