ENGINE REMOVAL
5-3

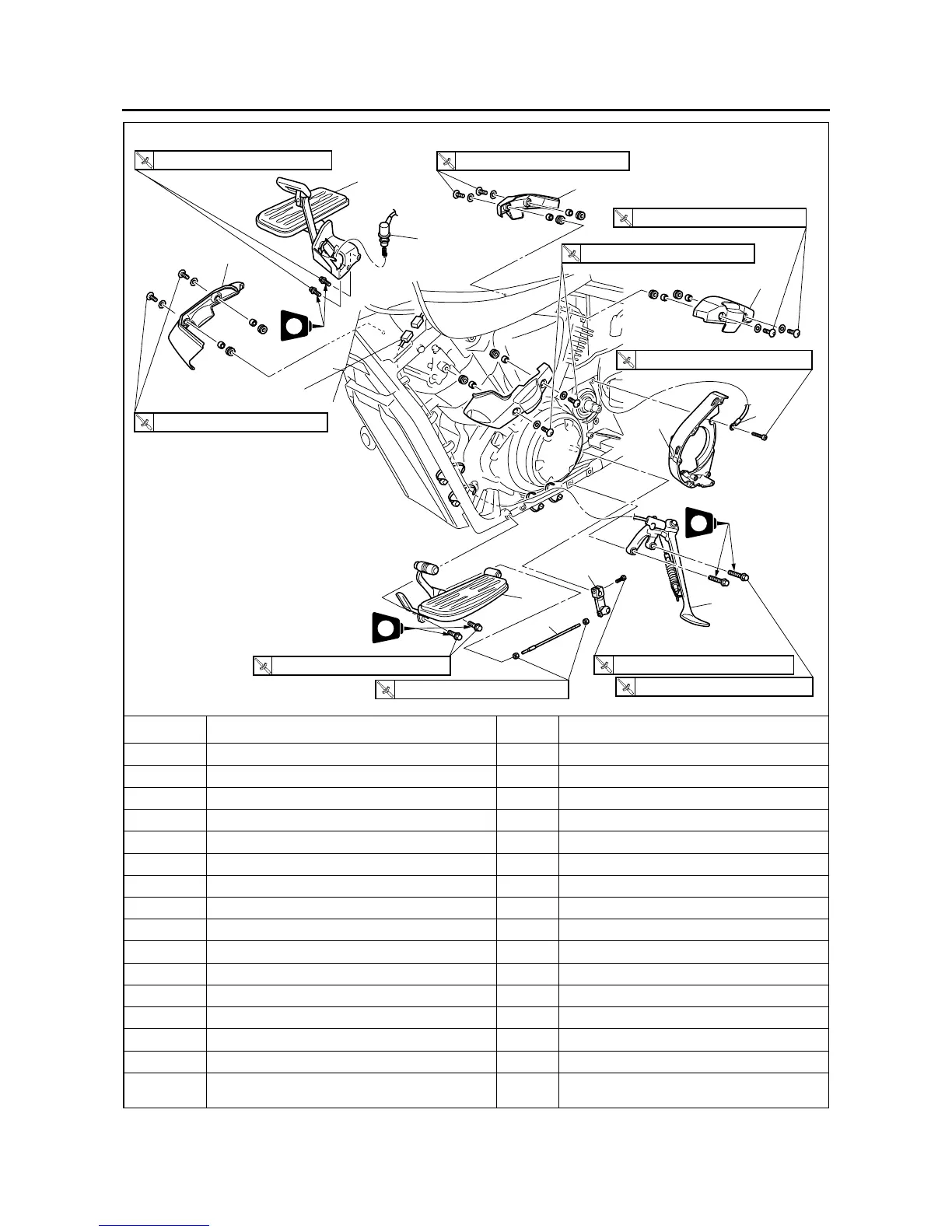

Removing the sidestand and drive pulley housing
Order Job/Parts to remove Q’ty Remarks
Drive belt Refer to “BELT DRIVE” on page 4-69.
Rear brake master cylinder Refer to “REAR BRAKE” on page 4-32.
1 Sidestand switch coupler 1 Disconnect.
2 Sidestand 1
3 Shift arm 1
4 Shift rod 1
5 Left footrest assembly 1
6 Rear brake light switch 1
7 Right footrest assembly 1
8 Front cylinder left cover 1
9 Front cylinder right cover 1
10 Rear cylinder left cover 1
11 Rear cylinder right cover 1
12 Ground lead 1 Disconnect.
13 Drive pulley housing 1
For installation, reverse the removal proce-
dure.
T
R
.
.
64 Nm (6.4 m
•
kg, 46 ft
•
Ib)
T
R
.
.
64 Nm (6.4 m
•
kg, 46 ft
•
Ib)
T
R
.
.
24 Nm (2.4 m
•
kg, 17 ft
•
Ib)
T
R
.
.
56 Nm (5.6 m
•
kg, 40 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
LT
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
LT
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
1
2
10
11
13
12
6
7
3
4
5
8
9
(5)
To Next Page
