CLUTCH
5-53
2. Bend lock washer tabs along a flat side of the
nut.
EAS25240

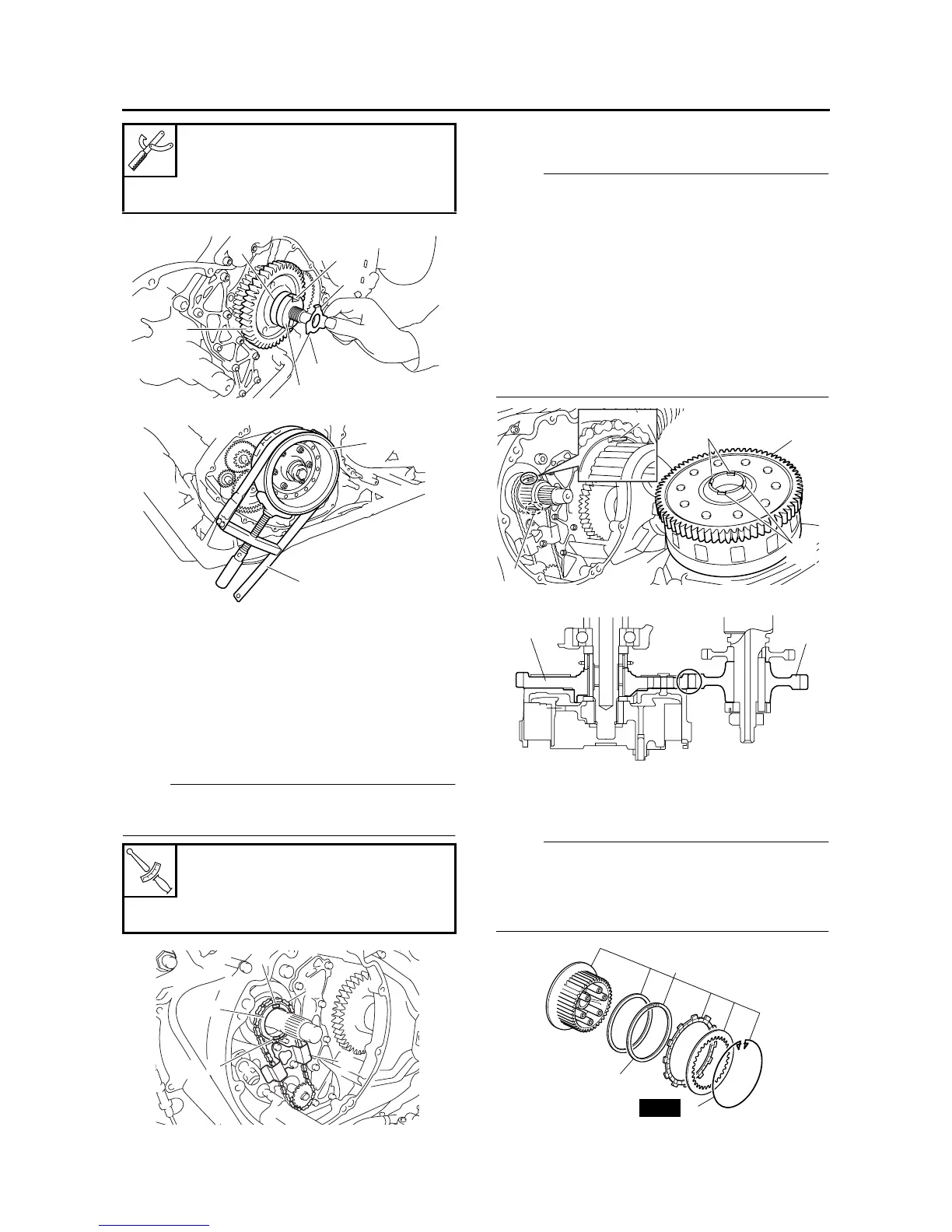

INSTALLING THE CLUTCH
1. Install:
• Oil/water pump drive sprocket “1”
• Oil/water pump drive chain “2”
• Oil/water pump drive chain guide “3”
NOTE:
Install the oil/water pump drive sprocket with its
projections “a” facing outward.
2. Install:
• Clutch housing “1”
NOTE:
• Fit the projections “a” on the oil/water pump
drive sprocket into the grooves “b” in the clutch
housing.
• Lubricate the clutch housing bearing with en-
gine oil.
• Make sure that the primary driven gear teeth
and primary drive gear teeth mesh correctly.
• After installing the clutch housing, make sure
that the primary drive gear “2” and clutch hous-
ing primary driven gear “3” are aligned as
shown in the illustration.
3. Install:
• Clutch boss assembly “1”
NOTE:
• Install the clutch damper spring “2” with the
“OUTSIDE” mark facing out.
• If the wire circlip “3” has been removed, care-
fully install a new one.
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
T
R
.
.
Oil/water pump drive chain guide
bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
LOCTITE®
b
a
2
3
1
c
4
5
3
a
2
a
1
b
1
b
a
a
3
2
1
2
3
New
