Yamaha XVS1300A 2007 - Installing the Cylinder Head Covers

CAMSHAFTS
5-22
11.Measure:
• Valve clearance
Out of specification → Adjust.
Refer to “ADJUSTING THE VALVE CLEAR-
ANCE” on page 3-3.
EAS3D81035

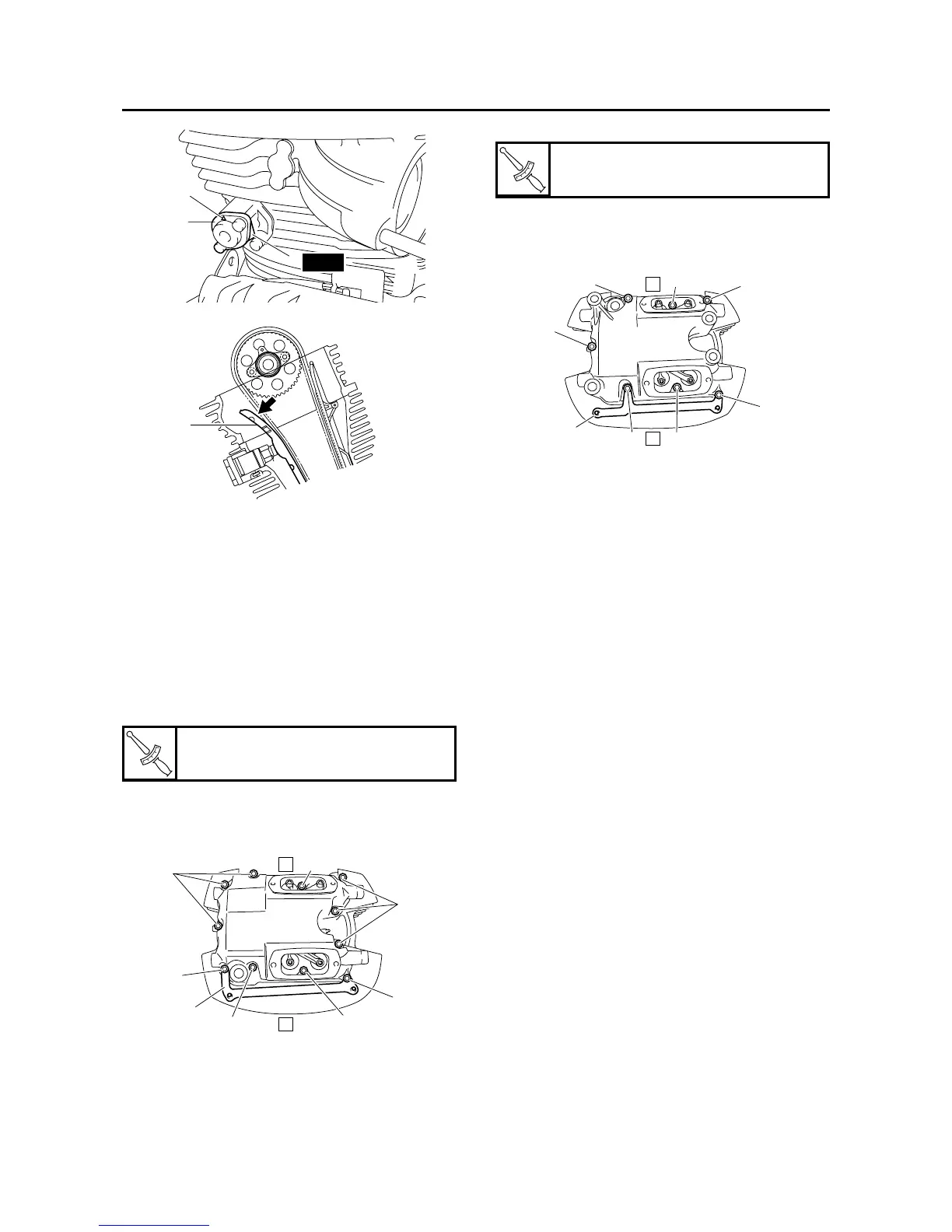

INSTALLING THE CYLINDER HEAD
COVERS
1. Install:
• Rear cylinder head cover
• Rear cylinder head cover bracket “1”
Bolts “2”: l = 30 mm (1.18 in)
Bolts “3”: l = 45 mm (1.77 in)
Bolts “4”: l = 55 mm (2.17 in)
2. Install:
• Front cylinder head cover
• Front cylinder head cover bracket “1”
Bolts “2”: l = 30 mm (1.18 in)
Bolts “3”: l = 45 mm (1.77 in)
Bolts “4”: l = 55 mm (2.17 in)
T
R
.
.
Rear cylinder head cover bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
A. Intake side
B. Exhaust side
2
a
1
New
3
A
B
4
3
2
1
3
4
2
3
T
R
.
.
Front cylinder head cover bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
A. Intake side
B. Exhaust side
3
3
2
3
4
2
4
1
A
B
