ELECTRICAL COMPONENTS
8-96
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

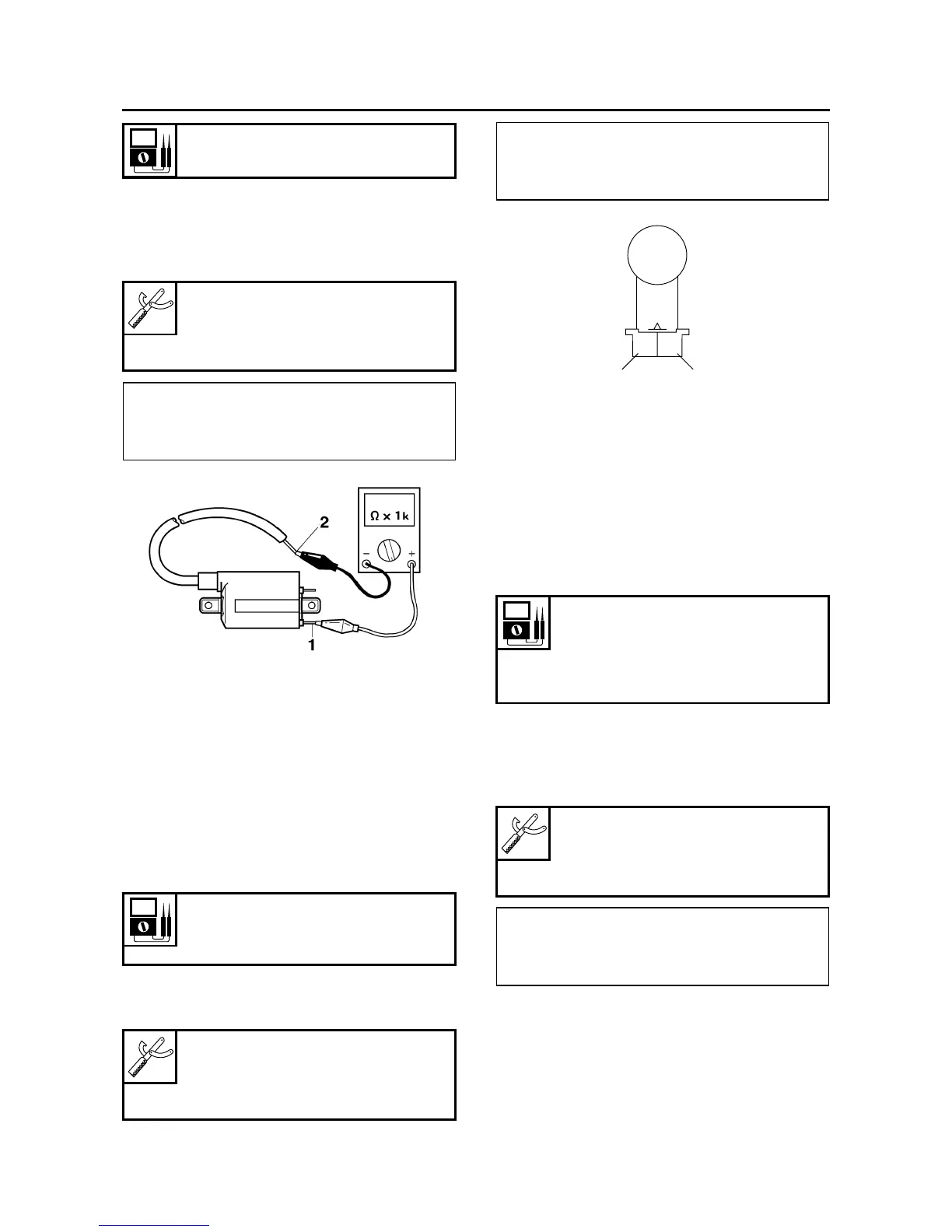

a. Disconnect the spark plug cap from the igni-
tion coil.
b. Connect the pocket tester (Ω × 1k) to the ig-
nition coil as shown.
c. Measure the secondary coil resistance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28120
CHECKING THE CRANKSHAFT POSITION
SENSOR
1. Disconnect:
• Crankshaft position sensor coupler
(from the wire harness)
2. Check:
• Crankshaft position sensor resistance
Out of specification → Replace the crank-
shaft position sensor/stator assembly.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 100) to the
crankshaft position sensor coupler as shown.
b. Measure the crankshaft position sensor re-
sistance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28130
CHECKING THE LEAN ANGLE SENSOR
1. Remove:
• Lean angle sensor
2. Check:
• Lean angle sensor output voltage
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the lean angle sensor coupler to the
wire harness.
b. Connect the pocket tester (DC 20 V) to the
lean angle sensor coupler as shown.
Secondary coil resistance
8.64–12.96 kΩ
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
black/red “1”
• Negative tester probe →
spark plug lead “2”
Crankshaft position sensor resis-
tance
248–372 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
gray “1”
• Negative tester probe →
black “2”
Lean angle sensor output voltage
Less than 65°
0.4–1.4 V
More than 65°
3.7–4.4 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
yellow/green “1”
• Negative tester probe →
black/blue “2”
Gy
B
1
2
