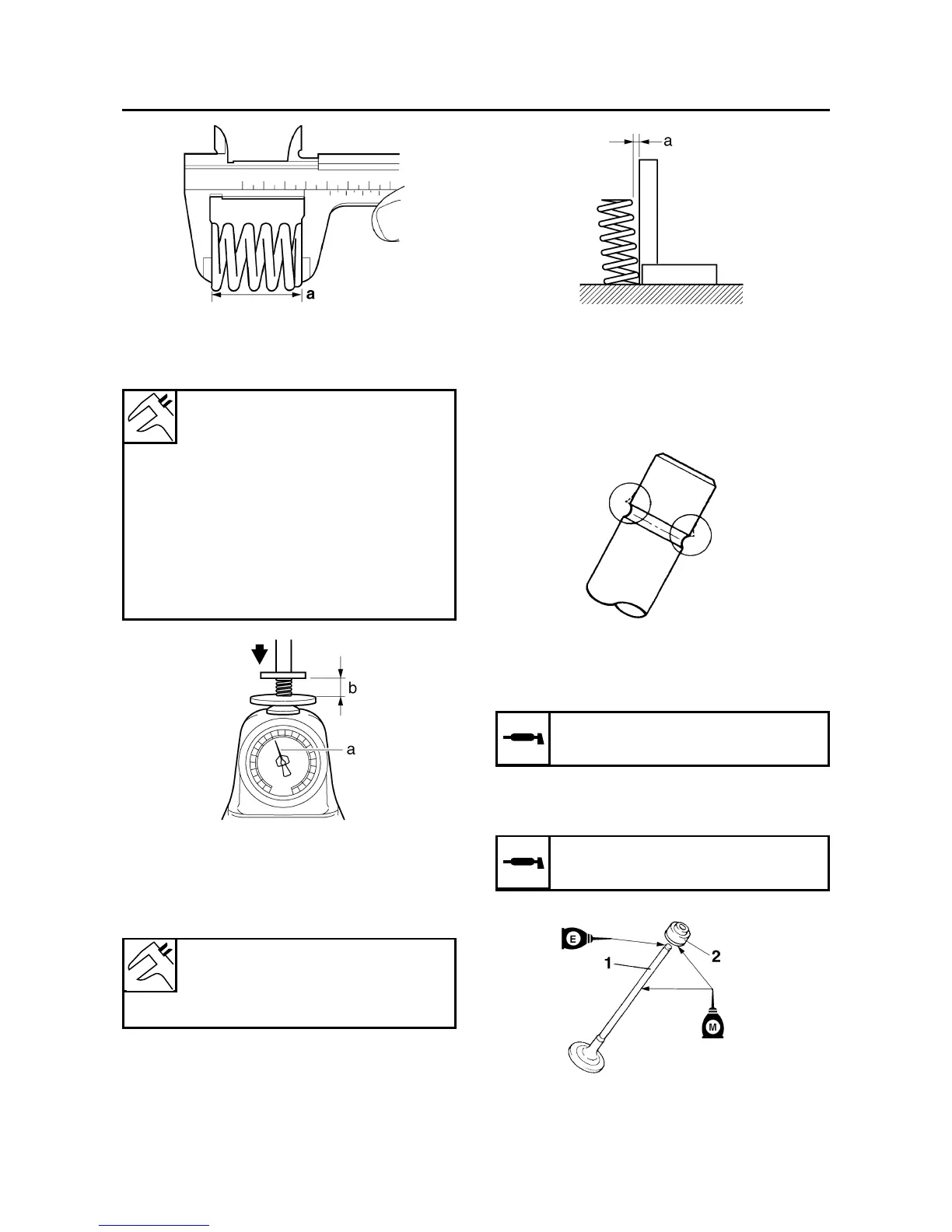

VALVES AND VALVE SPRINGS
5-31
2. Measure:
• Compressed valve spring force “a”
Out of specification → Replace the valve
spring.
3. Measure:
• Valve spring tilt “a”
Out of specification → Replace the valve
spring.
EAS24340
INSTALLING THE VALVES
The following procedure applies to all of the
valves and related components.
1. Deburr:
• Valve stem end
(with an oil stone)
2. Lubricate:
• Valve stem “1”
• Valve stem seal “2”
(with the recommended lubricant)
3. Lubricate:
• Valve stem end
(with the recommended lubricant)
4. Install:
• Lower spring seat “1”
Installed compression spring
force (intake)
171–197 N (38.44–44.29 lbf)
(17.44–20.09 kgf)
Installed compression spring
force (exhaust)
171–197 N (38.44–44.29 lbf)
(17.44–20.09 kgf)
Installed length (intake)
35.00 mm (1.38 in)
Installed length (exhaust)
35.00 mm (1.38 in)
b. Installed length
Spring tilt (intake)
2.5 °/1.9 mm
Spring tilt (exhaust)
2.5 °/1.9 mm
Recommended lubricant
Molybdenum disulfide oil
Recommended lubricant
Engine oil
