ELECTRIC STARTING SYSTEM
8-9
EAS27180

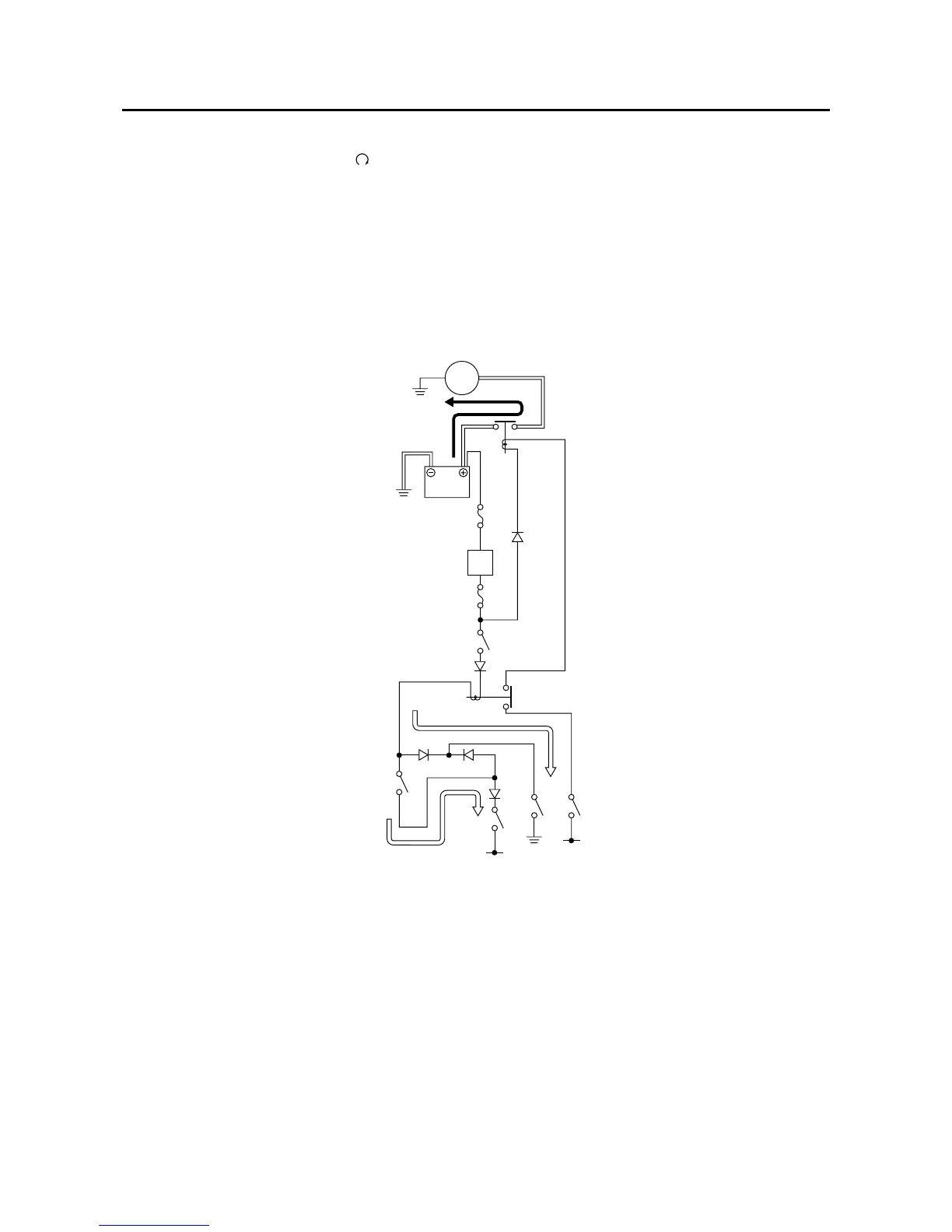

STARTING CIRCUIT CUT-OFF SYSTEM OPERATION
If the engine stop switch is set to “” and the main switch is set to “ON” (both switches are closed), the
starter motor can only operate if at least one of the following conditions is met:
• The transmission is in neutral (the neutral switch is closed).
• The clutch lever is pulled to the handlebar (the clutch switch is closed) and the sidestand is up (the
sidestand switch is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay is open so current cannot reach the
starter motor. When at least one of the above conditions has been met, the starting circuit cut-off relay
is closed and the engine can be started by pressing the start switch.
15
1
13
4
5
8
8
a
b
10
8
11
9
7
2
3
14
6
12
