BALANCER GEARS
5-60
EAS3D81024
CHECKING THE RIGHT BALANCER GEARS
1. Check:
• Right balancer drive gear
• Right balancer driven gear
• Right balancer driven gear bearing
Damage/wear → Replace the right balancer
assembly.
EAS3D81025
CHECKING THE LEFT BALANCER GEARS
1. Check:
• Left balancer drive gear
• Left balancer driven gear
• Left balancer driven gear bearing
Damage/wear → Replace the left balancer
assembly.
EAS3D81026

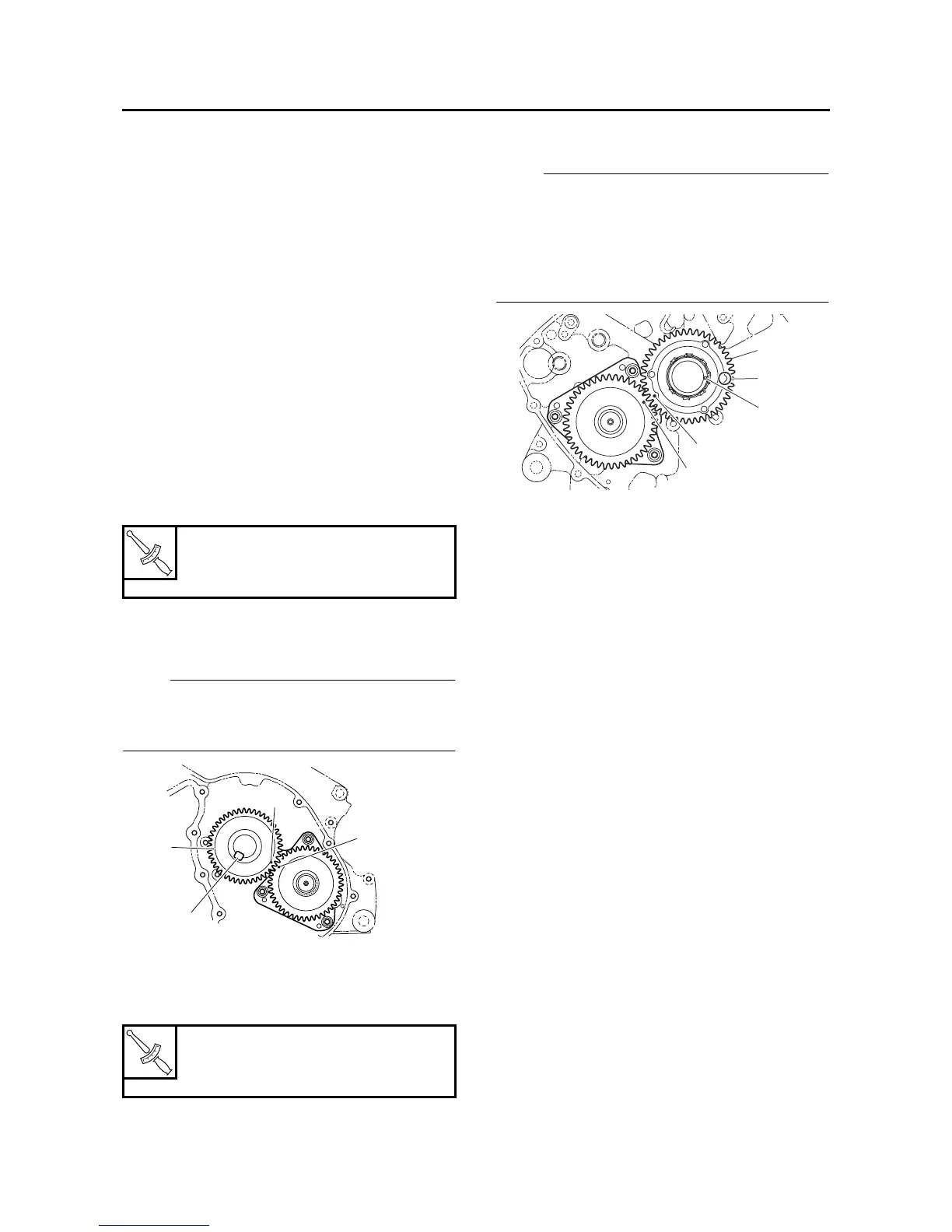

INSTALLING THE RIGHT BALANCER
GEARS
1. Install:
• Right balancer assembly
2. Install:
• Right balancer drive gear “1”
• Straight key “2”
NOTE:
Align the punch mark “a” in the right balancer
driven gear with the punch mark “b” in the right
balancer drive gear.
EAS3D81027
INSTALLING THE LEFT BALANCER GEARS
1. Install:
• Left balancer assembly
2. Install:
• Left balancer drive gear “1”
NOTE:
• Align the punch mark “a” in the left balancer
driven gear with the punch mark “b” in the left
balancer drive gear.
• Align the projection “c” on the left balancer
drive gear with the punch mark “d” on the
crankshaft when installing the gear.
T
R
.
.
Right balancer assembly bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
LOCTITE®
T
R
.
.
Left balancer assembly bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
LOCTITE®
a
b
1
2
1
b
a
d
c
