REAR SHOCK ABSORBER ASSEMBLY
4-60
EAS23160

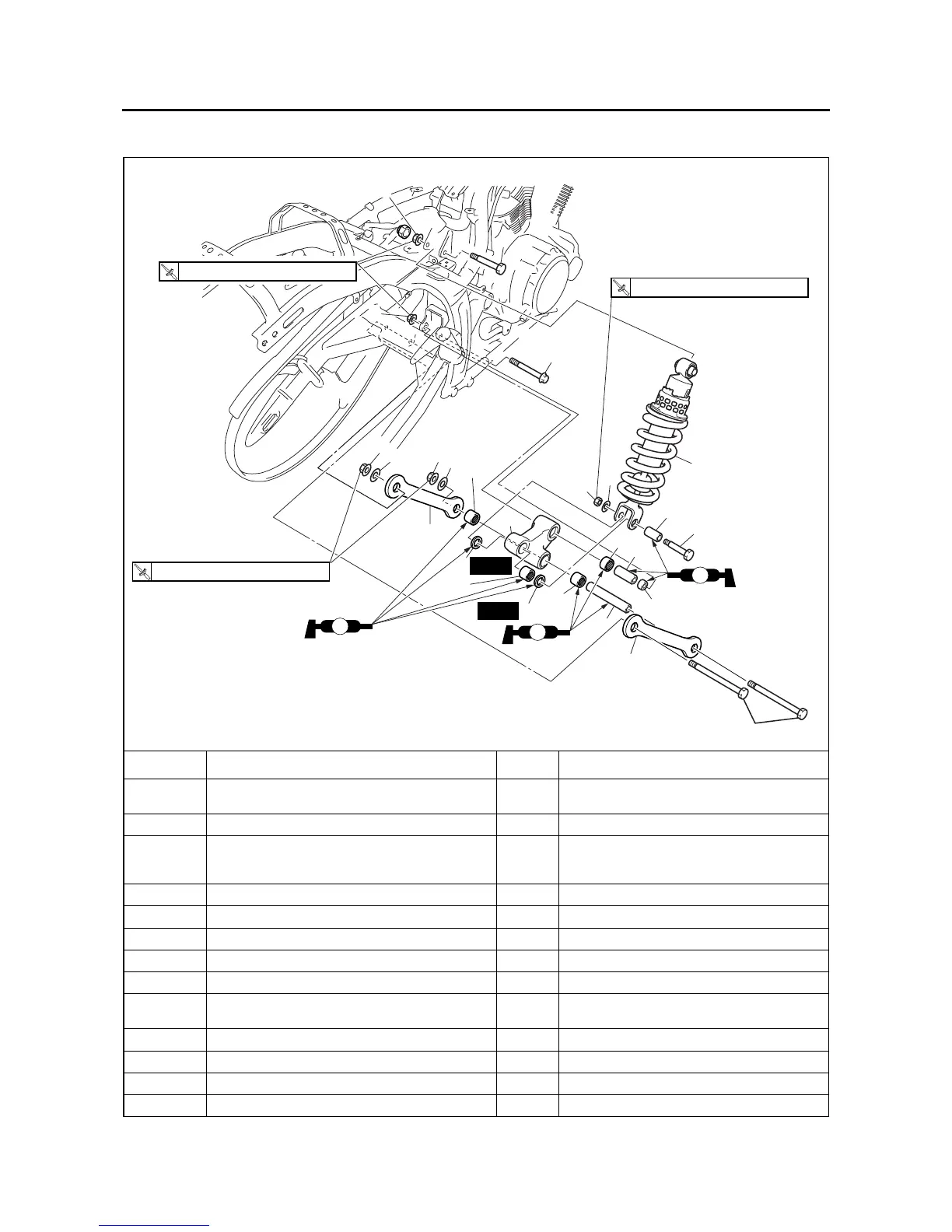

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly
Order Job/Parts to remove Q’ty Remarks
Battery box/Relay bracket
Refer to “GENERAL CHASSIS” on page
4-1.
Muffler/Coolant reservoir cover Refer to “ENGINE REMOVAL” on page 5-1.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-16.
Coolant reservoir Refer to “RADIATOR” on page 6-1.
Sub-fuel tank Refer to “FUEL TANK” on page 7-1.
Rear wheel Refer to “REAR WHEEL” on page 4-13.
1 Connecting arm nut/Washer/Bolt 2/2/2
2 Connecting arm 2
3
Rear shock absorber assembly lower nut/Wash-
er/Bolt/Collar
1/1/1/1
4 Rear shock absorber assembly upper nut/Bolt 1/1
5 Rear shock absorber assembly 1
6 Relay arm nut/Bolt/Spacer/Collar 1/1/1/1
7 Relay arm 1
LS
New
New
T
R
.
.
T
R
.
.
9
10
11
9
1
1
2
7
2
1
8
10
12
6
6
6
3
3
3
5
4
4
6
T
R
.
.
1
1
3
48 Nm (4.8 m • kg, 35 ft • Ib)
48 Nm (4.8 m • kg, 35 ft • Ib)
59 Nm (5.9 m
• kg, 43 ft • Ib)
LS
LS
To Next Page
