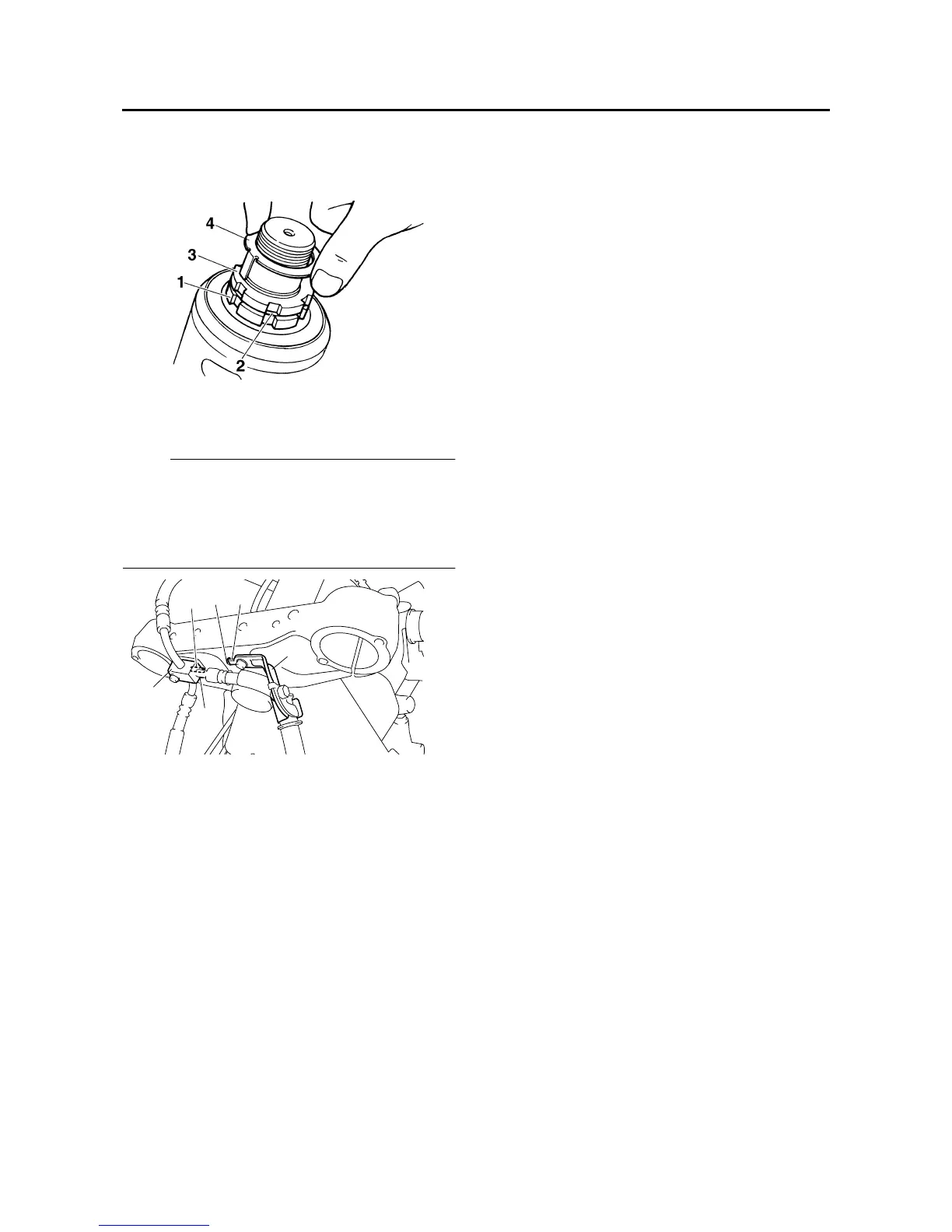

STEERING HEAD
4-59
• Upper ring nut “3”
• Lock washer “4”
Refer to “CHECKING AND ADJUSTING
THE STEERING HEAD” on page 3-25.
3. Install:
• Front brake hose joint “1”
• Front brake hose holder “2”
NOTE:
• Make sure that the projection “a” on the lower
bracket contacts the side “b” of the front brake
hose joint “1”.
• Align the projection “c” on the front brake hose
holder with the hole “d” in the lower bracket.
4. Install:
• Front fork legs
• Upper bracket
Refer to “FRONT FORK” on page 4-47.
2
c
d
a
1
b
