STEERING HEAD
4-56
EAS23090
STEERING HEAD

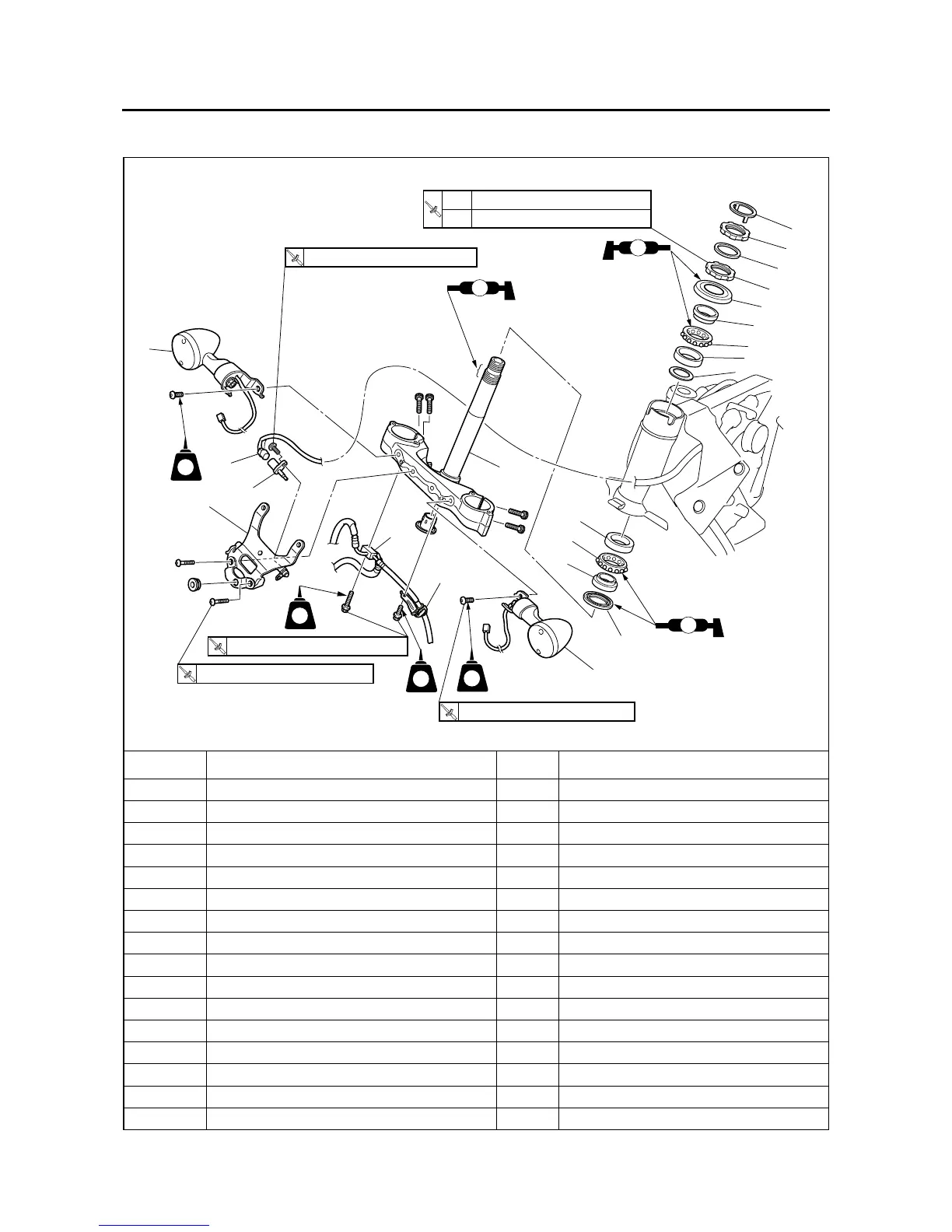

Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Upper bracket/Front fork legs Refer to “FRONT FORK” on page 4-47.
1 Headlight bracket 1
2 Air temperature sensor coupler 1 Disconnect.
3 Air temperature sensor 1
4 Front turn signal light 2
5 Front brake hose holder 1
6 Front brake hose joint 1
7 Lock washer 1
8 Upper ring nut 1
9 Rubber washer 1
10 Lower ring nut 1
11 Lower bracket 1
12 Upper bearing cover 1
13 Upper bearing inner race 1
14 Upper bearing 1
15 Washer 1
LT
T
R
.
.
1st 52 Nm (5.2 m
•
kg, 37 ft
•
lb)
2nd 18 Nm (1.8 m
•
kg, 13 ft
•
lb)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
LS
LS
LS
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
10
9
8
7
19
13
14
12
16
15
11
18
19
17
2
1
4
3
5
4
6
LT
LT
