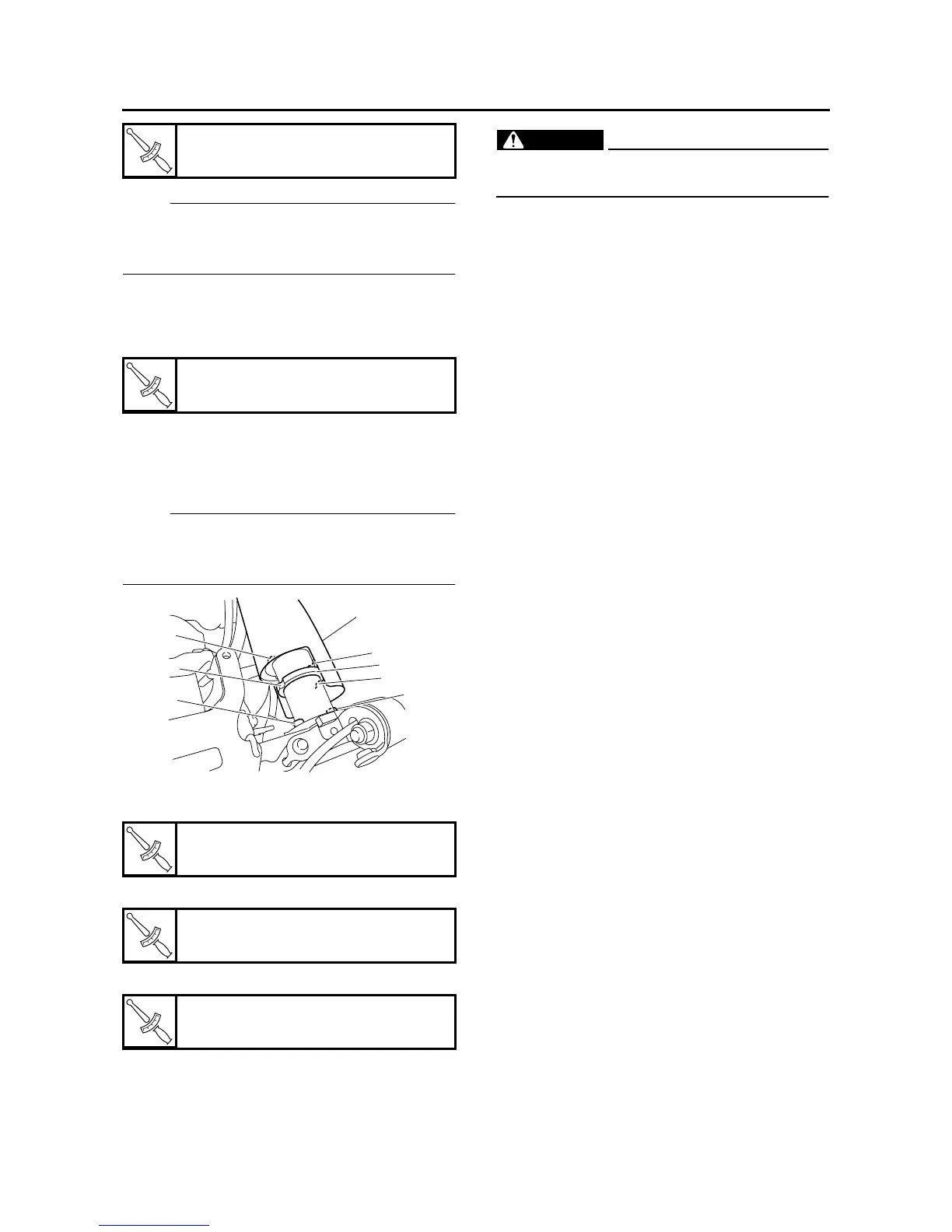

FRONT FORK
4-55
NOTE:
Tighten the lower bracket pinch bolts to specifi-
cation twice. Tighten the upper and lower bolts
alternately, starting with the upper bolts.
3. Remove:
• Upper bracket
4. Tighten:
• Lower front fork cover bolts
5. Install:
• Upper front fork cover spacer “1”
• Upper front fork cover “2”
• Upper bracket
NOTE:
Align the grooves “a” in the upper front fork cover
spacer “1”, and groove “b” in the upper front fork
cover “2” with the lower front fork cover bolts “3”.
6. Tighten:
• Steering stem nut
• Cap bolt
• Upper bracket pinch bolt
WARNING
EWA13680
Make sure the brake hoses are routed prop-
erly.
T
R
.
.
Lower bracket pinch bolt
23 Nm (2.3 m·kg, 17 ft·lb)
T
R
.
.
Lower front fork cover bolt
18 Nm (1.8 m·kg, 13 ft·lb)
T
R
.
.
Steering stem nut
110 Nm (11.0 m·kg, 80 ft·lb)
T
R
.
.
Cap bolt
23 Nm (2.3 m·kg, 17 ft·lb)
T
R
.
.
Upper bracket pinch bolt
23 Nm (2.3 m·kg, 17 ft·lb)
b
a
a
b
3
3
2
1
