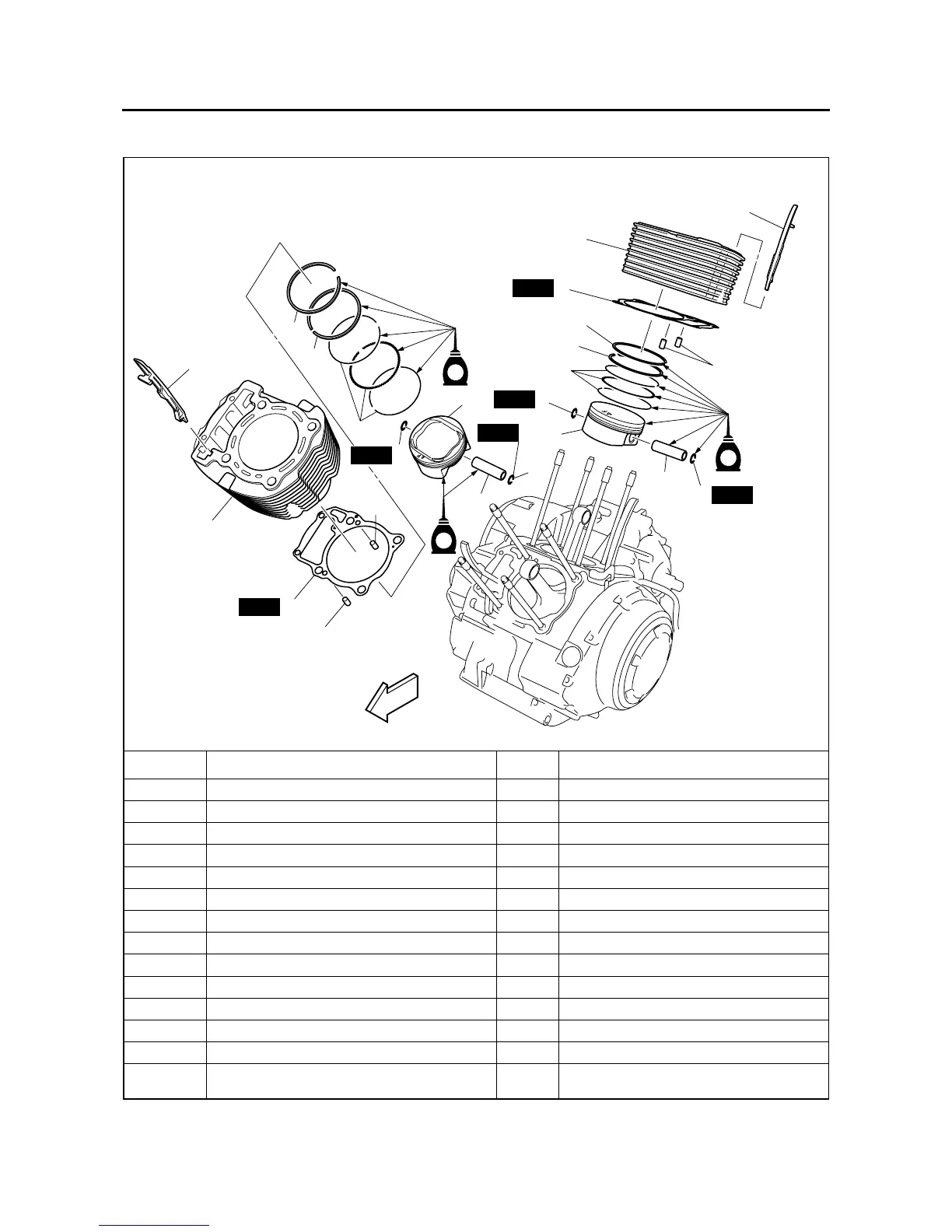

CYLINDERS AND PISTONS
5-33
EAS24360
CYLINDERS AND PISTONS
Removing the cylinders and pistons
Order Job/Parts to remove Q’ty Remarks
Cylinder heads Refer to “CYLINDER HEADS” on page 5-23.
1 Timing chain guide 2
2 Front cylinder 1
3 Rear cylinder 1
4 Front cylinder gasket 1
5 Rear cylinder gasket 1
6 Dowel pin 4
7 Circlip 4
8 Piston pin 2
9Piston 2
10 Top ring 2
11 2nd ring 2
12 Oil ring 2
For installation, reverse the removal proce-
dure.
New
New
New
New
New
New
E
E
E
FWD
1
2
4
6
6
3
5
6
10
11
12
7
9
9
7
7
7
8
8
1
10
11
12
